Steering Columns

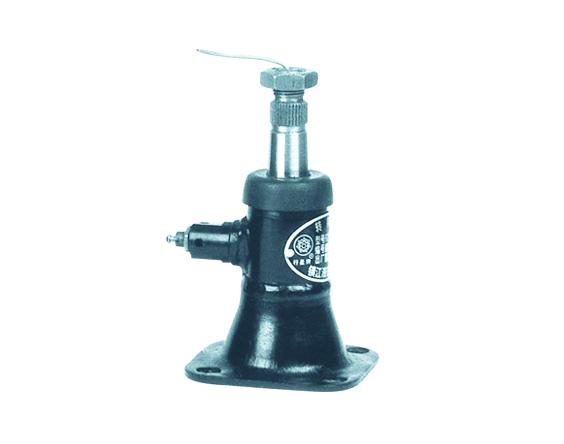

FZ Steering Column

FZ steering column suits all type of steering units. We offer a wide range of specifications are available to choose by costomers.

Order Code:

FZ	囗	—	囗	—	囗	囗	囗
①	②		③		④	⑤	⑥

①: Steering column;
②: Function:
     1. Without horn wire;
     2. With horn wire from top;
     2a. With horn wire from side;
③: Length of steering column;
④: Steering-wheel linkage type;
     H: Serration (shaft taper 1:12);
     D: Woodruffkey key (shaft taper 1:2);
⑤:Output end linkage type:
     Ha: SAE spline;
     Ea: Tongue;
⑥:Flange linkage type: F:Square.

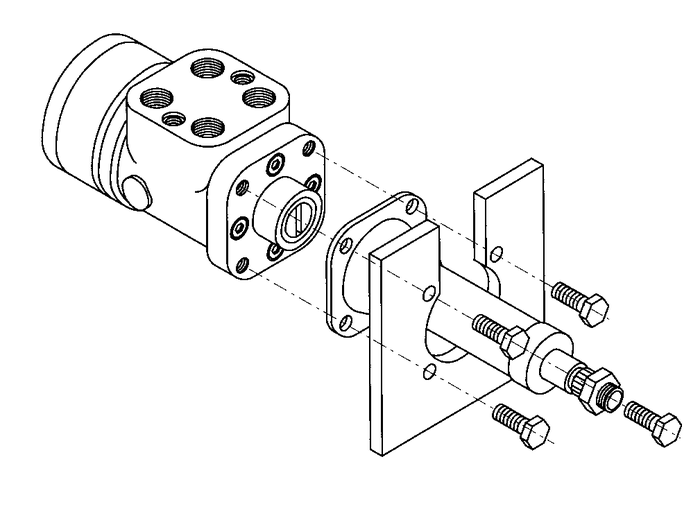

Recommendable Mounting Example:

No other parts be mounted between steering unit and steering column.

Main Specifications:

Type	Length series (mm)	Max. permissible load (N·m)
		Dynamic	Static
FZ1,FZ2,FZ2a	140 200 225 250 275 300 325 350 375 400 425 450 475 500 550 600 650 700 750 800 850 900 950 1000 1100 1200	80	300

Mounting Data:

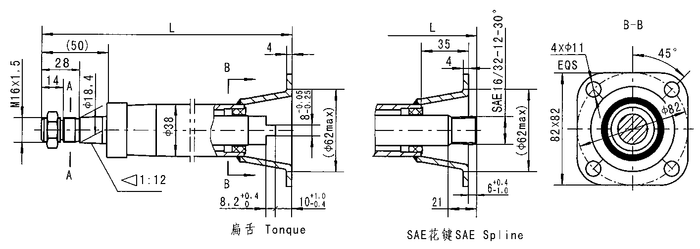

FZ1:

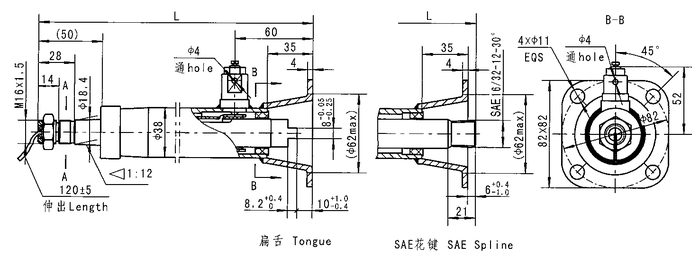

FZ2:

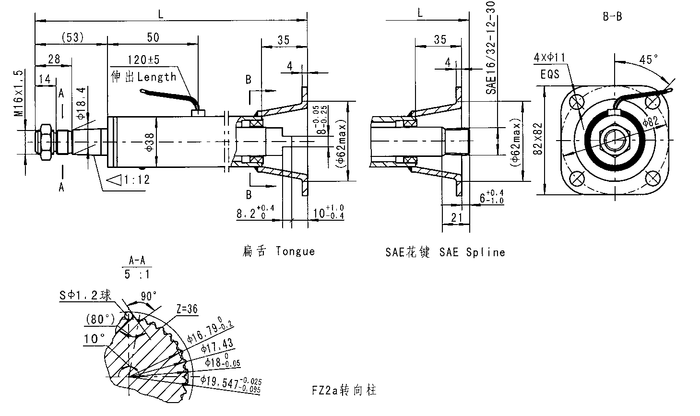

FZ2a:

Note:
1). All above is provided from us;
2). Please contact us if any requirements differs from the the above;
3). Due to improvement of the products, please forgive us if we change at any time without notice.
