Multiple Pumps

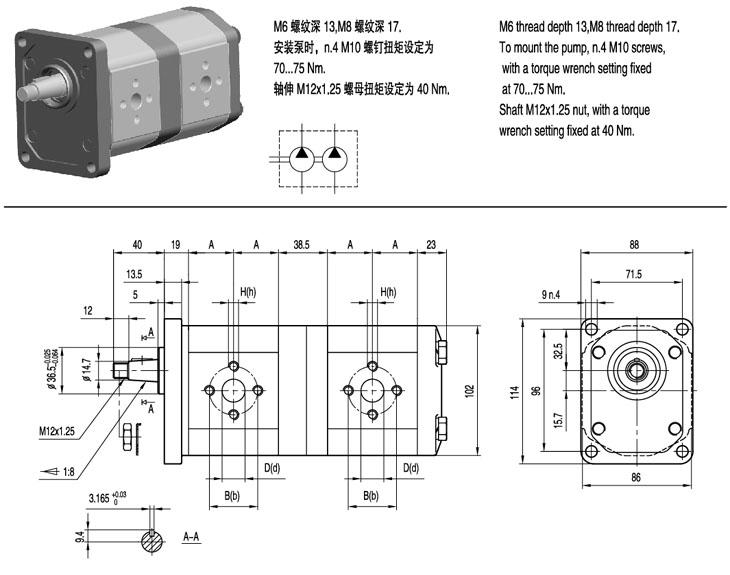

BHP2/2B0 Gear Pump

Disp.	Max pressure			Max. speed	Min. speed	Dimensions	INLET			OUTLET
	P1	P2	P3			A	B	D	H	b	d	h
(ml/r)	bar	bar	bar	r/min	r/min	mm	mm	mm		mm	mm
3	270	285	300	4000	800	24.5	30	13	M6	30	13	M6
4	270	285	300	4000	600	25.3	30	13	M6	30	13	M6
6	270	285	300	4000	600	27.0	30	13	M6	30	13	M6
8	270	285	300	3500	500	28.6	30	13	M6	30	13	M6
10	270	285	300	3000	500	30.3	40	20	M8	30	13	M6
12	270	285	300	3000	500	32.0	40	20	M8	30	13	M6
14	250	265	280	4000	500	33.6	40	20	M8	30	13	M6
16	250	265	280	4000	500	35.3	40	20	M8	30	13	M6
18	250	265	280	3600	400	37.0	40	20	M8	30	13	M6
20	220	235	250	3200	400	38.6	40	20	M8	30	13	M6
22	220	235	250	3000	400	40.3	40	20	M8	30	13	M6
25	200	215	230	3000	400	42.8	40	22	M8	30	13	M6
28	180	190	200	2500	400	45.3	40	22	M8	30	13	M6
30	160	170	180	2500	400	47.0	40	22	M8	30	13	M6

.

---

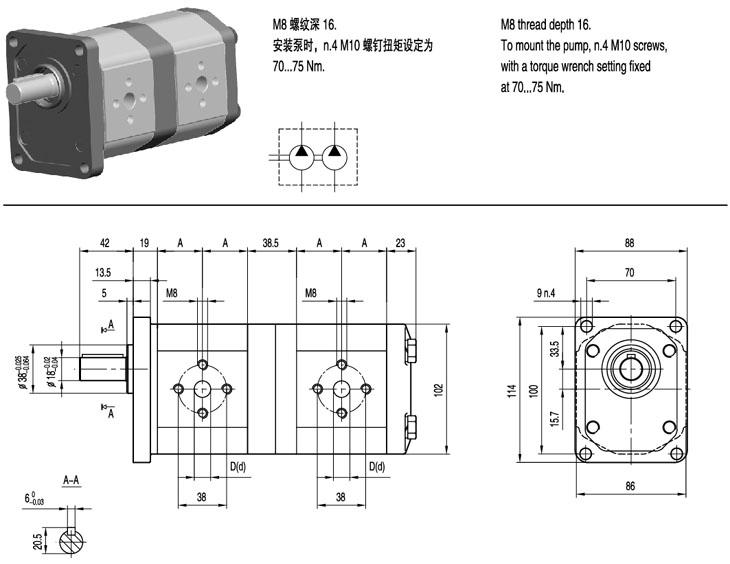

BHP2/2B1 Gear Pump

Disp.	Max pressure			Max. speed	Min. speed	Dimensions	INLET	OUTLET
	P1	P2	P3			A	D	d
(ml/r)	bar	bar	bar	r/min	r/min	mm	mm	mm
3	270	285	300	4000	800	24.5	14	10
4	270	285	300	4000	600	25.3	14	10
6	270	285	300	4000	600	27.0	14	10
8	270	285	300	3500	500	28.6	14	10
10	270	285	300	3000	500	30.3	18	15
12	270	285	300	3000	500	32.0	18	15
14	250	265	280	4000	500	33.6	18	15
16	250	265	280	4000	500	35.3	18	15
18	250	265	280	3600	400	37.0	18	15
20	220	235	250	3200	400	38.6	18	15
22	220	235	250	3000	400	40.3	18	15
25	200	215	230	3000	400	42.8	20	15
28	180	190	200	2500	400	45.3	20	15
30	160	170	180	2500	400	47.0	20	15

---

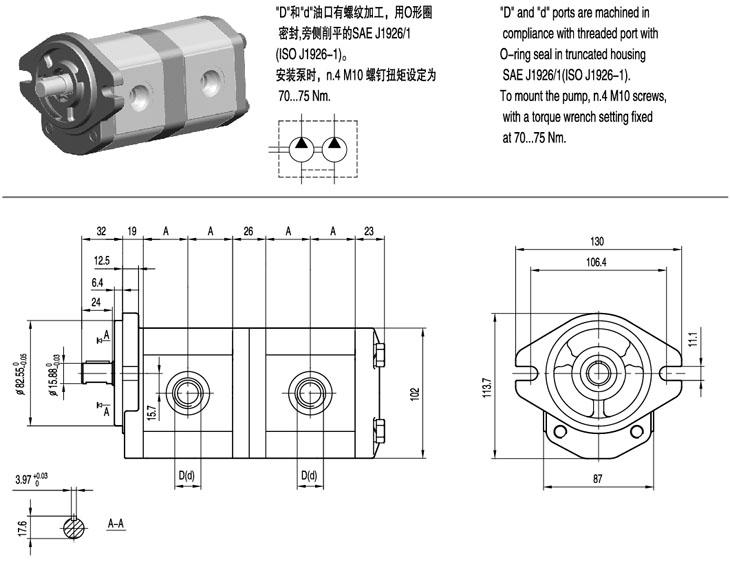

BHP2/2A0 Gear Pump

Disp.	Max pressure			Max. speed	Min. speed	Dimensions	INLET	OUTLET
	P1	P2	P3			A	D	d
(ml/r)	bar	bar	bar	r/min	r/min	mm	mm	mm
3	270	285	300	4000	800	24.5	1 1/16-12UNF	7/8-14UNF
4	270	285	300	4000	600	25.3	1 1/16-12UNF	7/8-14UNF
6	270	285	300	4000	600	27.0	1 1/16-12UNF	7/8-14UNF
8	270	285	300	3500	500	28.6	1 1/16-12UNF	7/8-14UNF
10	270	285	300	3000	500	30.3	1 1/16-12UNF	7/8-14UNF
12	270	285	300	3000	500	32.0	1 1/16-12UNF	7/8-14UNF
14	250	265	280	4000	500	33.6	1 1/16-12UNF	7/8-14UNF
16	250	265	280	4000	500	35.3	1 1/16-12UNF	7/8-14UNF
18	250	265	280	3600	400	37.0	1 1/16-12UNF	7/8-14UNF
20	220	235	250	3200	400	38.6	1 1/16-12UNF	7/8-14UNF
22	220	235	250	3000	400	40.3	1 1/16-12UNF	7/8-14UNF
25	200	215	230	3000	400	42.8	1 1/16-12UNF	7/8-14UNF
28	180	190	200	2500	400	45.3	1 1/16-12UNF	7/8-14UNF
30	160	170	180	2500	400	47.0	1 5/16-12UNF	7/8-14UNF

---

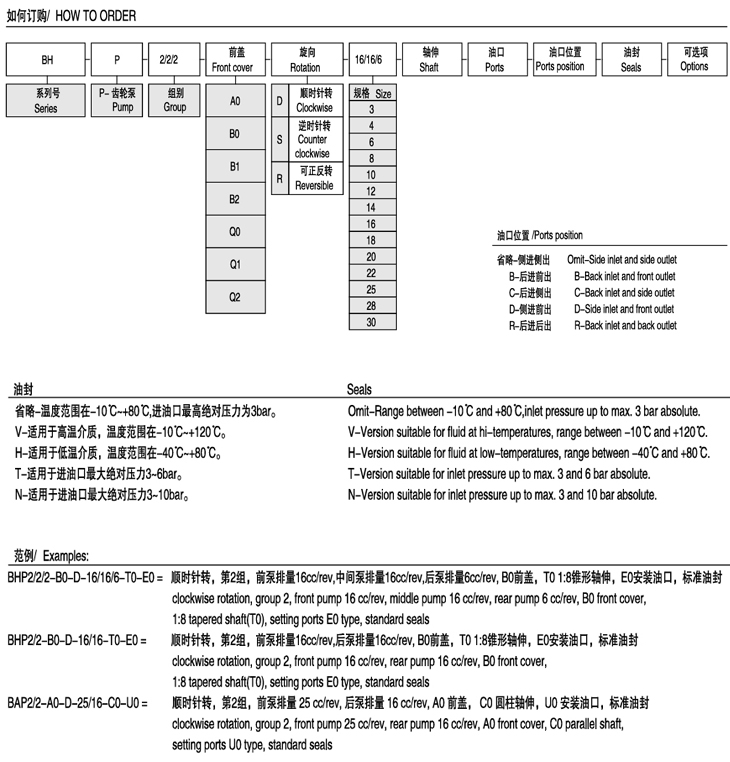

Multiple Pumps Selection Code

BHP2/2B0 Gear Pump	BHP2/2B1 Gear Pump	BHP2/2A0 Gear Pump
