BKP1

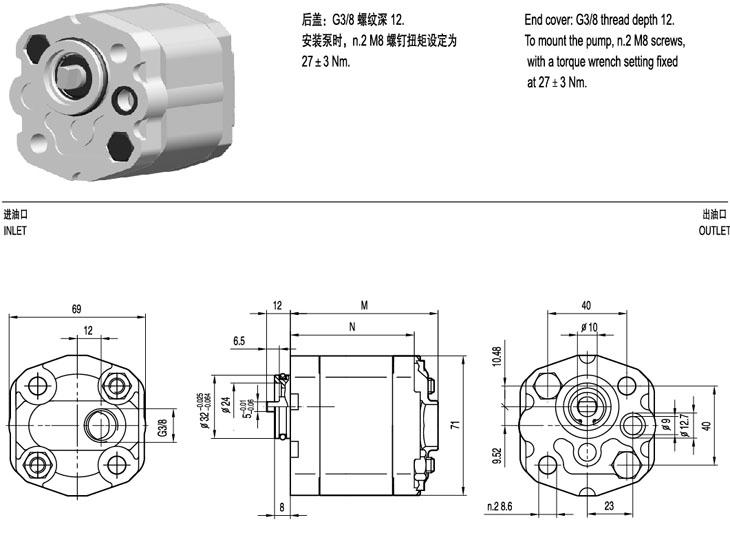

BKP1Q0 Gear Pump

Type	Displacement	Max pressure			Max. speed	Min. speed	Dimensions
		P1	P2	P3			M	N
	(ml/r)	bar	bar	bar	r/min	r/min	mm	mm
BKP1Q0-D-0.8	0.8	230	250	270	6000	1000	73.5	61.5
BKP1Q0-D-1.1	1.1	230	250	270	6000	1000	74	62
BKP1Q0-D-1.3	1.3	230	250	270	6000	1000	75	63
BKP1Q0-D-1.6	1.6	230	250	270	6000	1000	76	64
BKP1Q0-D-1.8	1.8	230	250	270	6000	1000	77	65
BKP1Q0-D-2.1	2.1	230	250	270	6000	1000	78	66
BKP1Q0-D-2.7	2.7	230	250	270	6000	800	80	68
BKP1Q0-D-3.2	3.2	210	230	250	5000	800	82	70
BKP1Q0-D-3.7	3.7	210	230	250	4500	800	84	72
BKP1Q0-D-4.2	4.2	210	230	250	4000	800	86	74
BKP1Q0-D-4.8	4.8	190	210	230	3500	600	88	76
BKP1Q0-D-5.8	5.8	190	210	230	3000	600	92	80
BKP1Q0-D-7.0	7.0	160	180	200	2500	600	96	84
BKP1Q0-D-8.0	8.0	160	180	200	2100	600	100	88

.

---

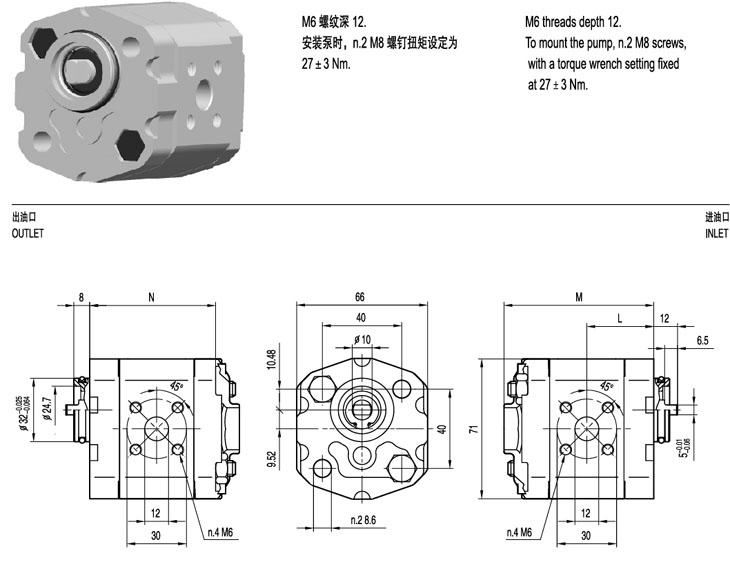

BKP1Q1 Gear Pump

Type	Displacement	Max pressure			Max. speed	Min. speed	Dimensions
		P1	P2	P3			M	N	L
	(ml/r)	bar	bar	bar	r/min	r/min	mm	mm	mm
BKP1Q1-D-0.8	0.8	230	250	270	6000	1000	73.5	61.5	32.8
BKP1Q1-D-1.1	1.1	230	250	270	6000	1000	74	62	33
BKP1Q1-D-1.3	1.3	230	250	270	6000	1000	75	63	33.5
BKP1Q1-D-1.6	1.6	230	250	270	6000	1000	76	64	34
BKP1Q1-D-1.8	1.8	230	250	270	6000	1000	77	65	34.5
BKP1Q1-D-2.1	2.1	230	250	270	6000	1000	78	66	35
BKP1Q1-D-2.7	2.7	230	250	270	6000	800	80	68	36
BKP1Q1-D-3.2	3.2	210	230	250	5000	800	82	70	37
BKP1Q1-D-3.7	3.7	210	230	250	4500	800	84	72	38
BKP1Q1-D-4.2	4.2	210	230	250	4000	800	86	74	39
BKP1Q1-D-4.8	4.8	190	210	230	3500	600	88	76	40
BKP1Q1-D-5.8	5.8	190	210	230	3000	600	92	80	42
BKP1Q1-D-7.0	7.0	160	180	200	2500	600	96	84	44
BKP1Q1-D-8.0	8.0	160	180	200	2100	600	100	88	46

---

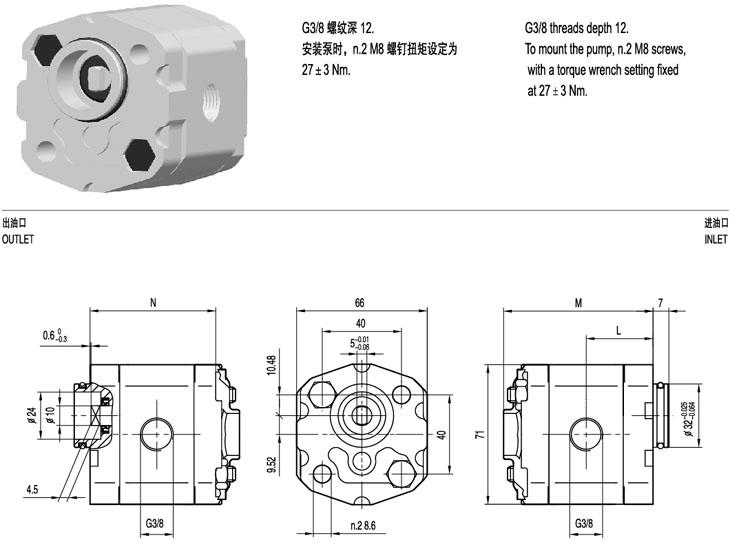

BKP1Q2 Gear Pump

Type	Displacement	Max pressure			Max. speed	Min. speed	Dimensions
		P1	P2	P3			M	N	L
	(ml/r)	bar	bar	bar	r/min	r/min	mm	mm	mm
BKP1Q2-D-0.8	0.8	230	250	270	6000	1000	73.5	61.5	32.8
BKP1Q2-D-1.1	1.1	230	250	270	6000	1000	74	62	33
BKP1Q2-D-1.3	1.3	230	250	270	6000	1000	75	63	33.5
BKP1Q2-D-1.6	1.6	230	250	270	6000	1000	76	64	34
BKP1Q2-D-1.8	1.8	230	250	270	6000	1000	77	65	34.5
BKP1Q2-D-2.1	2.1	230	250	270	6000	1000	78	66	35
BKP1Q2-D-2.7	2.7	230	250	270	6000	800	80	68	36
BKP1Q2-D-3.2	3.2	210	230	250	5000	800	82	70	37
BKP1Q2-D-3.7	3.7	210	230	250	4500	800	84	72	38
BKP1Q2-D-4.2	4.2	210	230	250	4000	800	86	74	39
BKP1Q2-D-4.8	4.8	190	210	230	3500	600	88	76	40
BKP1Q2-D-5.8	5.8	190	210	230	3000	600	92	80	42
BKP1Q2-D-7.0	7.0	160	180	200	2500	600	96	84	44
BKP1Q2-D-8.0	8.0	160	180	200	2100	600	100	88	46

---

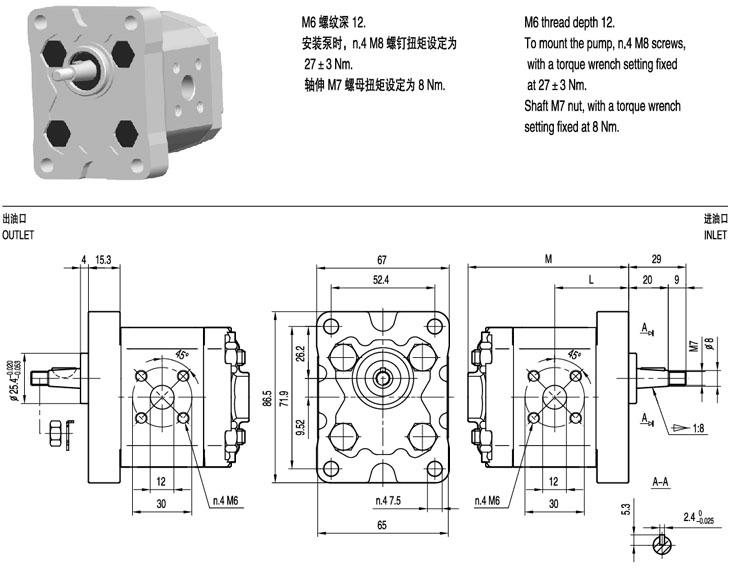

BKP1B0 Gear Pump

Type	Displacement	Max pressure			Max. speed	Min. speed	Dimensions
		P1	P2	P3			M	L
	(ml/r)	bar	bar	bar	r/min	r/min	mm	mm
BKP1B0-D-0.8	0.8	230	250	270	6000	1000	73.5	32.8
BKP1B0-D-1.1	1.1	230	250	270	6000	1000	74	33
BKP1B0-D-1.3	1.3	230	250	270	6000	1000	75	33.5
BKP1B0-D-1.6	1.6	230	250	270	6000	1000	76	34
BKP1B0-D-1.8	1.8	230	250	270	6000	1000	77	34.5
BKP1B0-D-2.1	2.1	230	250	270	6000	1000	78	35
BKP1B0-D-2.7	2.7	230	250	270	6000	800	80	36
BKP1B0-D-3.2	3.2	210	230	250	5000	800	82	37
BKP1B0-D-3.7	3.7	210	230	250	4500	800	84	38
BKP1B0-D-4.2	4.2	210	230	250	4000	800	86	39
BKP1B0-D-4.8	4.8	190	210	230	3500	600	88	40
BKP1B0-D-5.8	5.8	190	210	230	3000	600	92	42
BKP1B0-D-7.0	7.0	160	180	200	2500	600	96	44
BKP1B0-D-8.0	8.0	160	180	200	2100	600	100	46

---

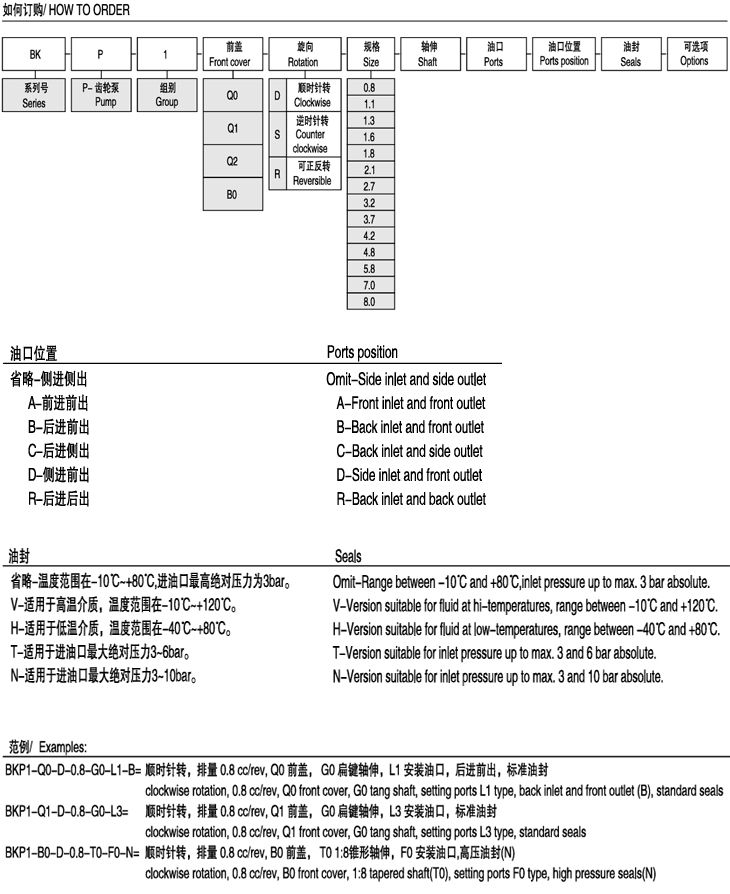

BKP1 Selection Code

BKP1Q0 Gear Pump	BKP1Q1 Gear Pump	BKP1Q2 Gear Pump
BKP1B0 Gear Pump
