BAP1.5

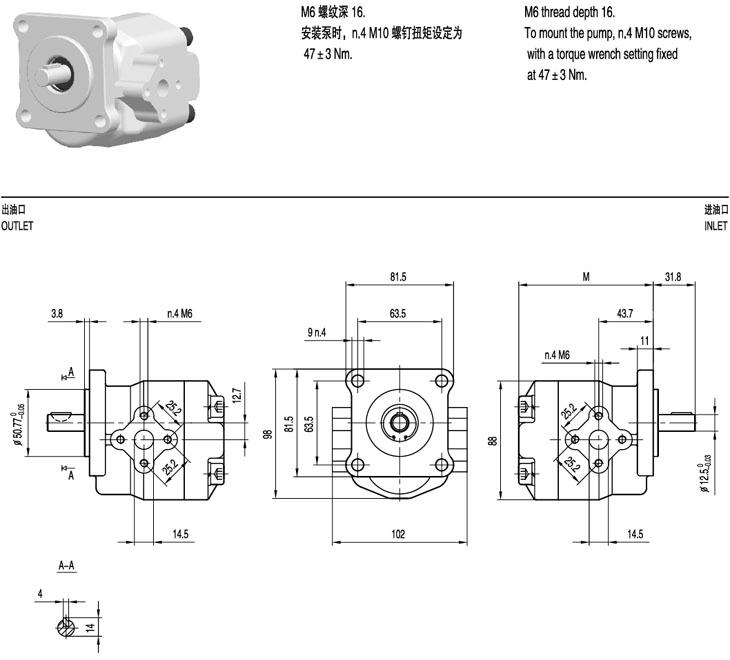

BAP1.5Q0 Gear Pump

Type	Displacement	Max pressure			Max. speed	Min. speed	Dimensions
		P1	P2	P3			M
	(ml/r)	bar	bar	bar	r/min	r/min	mm
BAP1.5Q0-D-2	2	210	230	250	5000	900	96.7
BAP1.5Q0-D-3	3	210	230	250	5000	850	96.7
BAP1.5Q0-D-4	4	210	230	250	4500	800	96.7
BAP1.5Q0-D-5	5	210	230	250	4000	800	96.7
BAP1.5Q0-D-6	6	210	230	250	3500	700	99.7
BAP1.5Q0-D-8	8	210	230	250	3000	600	99.7
BAP1.5Q0-D-9	9	180	200	220	2500	550	102.7
BAP1.5Q0-D-11	11	180	200	220	2000	500	105.7
BAP1.5Q0-D-12	12	180	200	220	2000	500	105.7

.

---

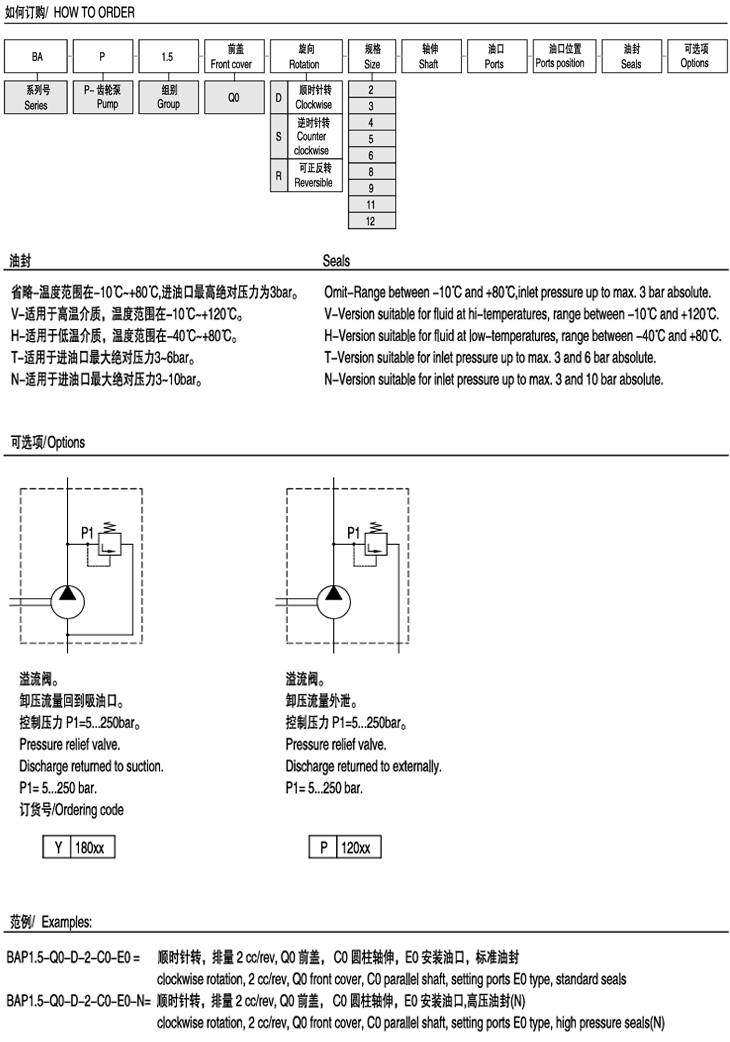

BAP1.5 Selection Code
