BKP0.5

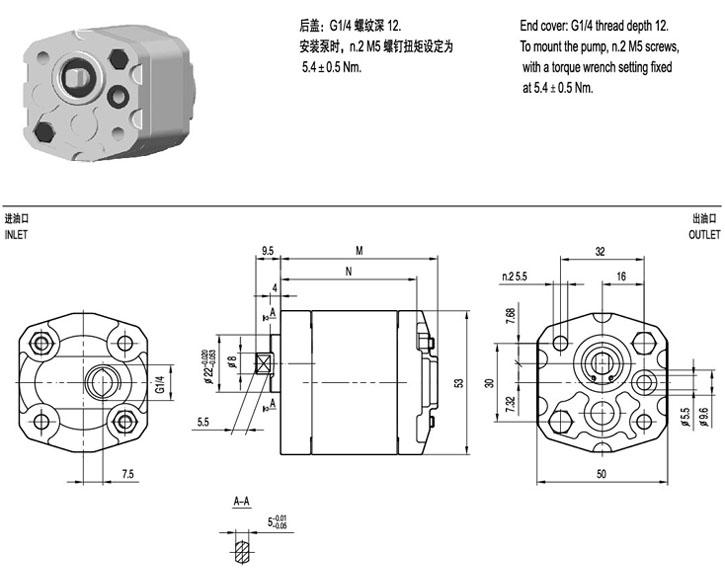

BKP0.5B0 Gear Pump

Type	Displacement	Max pressure			Max. speed	Min. speed	Dimensions
		P1	P2	P3			M	N
	(ml/r)	bar	bar	bar	r/min	r/min	mm	mm
BKP0.5B0-D-0.19	0.19	200	230	250	7000	1000	60	51
BKP0.5B0-D-0.26	0.26	200	230	250	7000	1000	60.5	51.5
BKP0.5B0-D-0.38	0.38	200	230	250	7000	1000	61.5	52.5
BKP0.5B0-D-0.50	0.50	200	230	250	7000	1000	62.5	53.5
BKP0.5B0-D-0.65	0.65	200	230	250	7000	1000	63.5	54.5
BKP0.5B0-D-0.75	0.75	200	230	250	7000	1000	64.5	55.5
BKP0.5B0-D-0.88	0.88	200	230	250	7000	1000	65.5	56.5
BKP0.5B0-D-1.00	1.00	200	230	250	6000	850	66.5	57.5
BKP0.5B0-D-1.25	1.25	200	230	250	5000	700	68.5	59.5
BKP0.5B0-D-1.50	1.50	200	230	250	4000	600	70.5	61.5
BKP0.5B0-D-1.75	1.75	180	210	230	4000	600	72.5	63.5
BKP0.5B0-D-2.00	2.00	160	190	210	3000	500	74.5	65.5

.

---

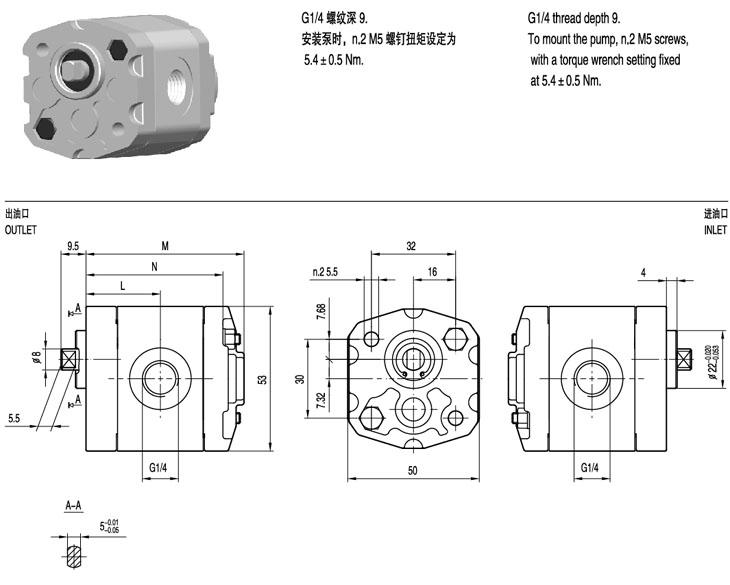

BKP0.5B1 Gear Pump

Type	Displacement	Max pressure			Max. speed	Min. speed	Dimensions
		P1	P2	P3			M	N	L
	(ml/r)	bar	bar	bar	r/min	r/min	mm	mm	mm
BKP0.5B1-D-0.19	0.19	200	230	250	7000	1000	60	51	27.2
BKP0.5B1-D-0.26	0.26	200	230	250	7000	1000	60.5	51.5	27.5
BKP0.5B1-D-0.38	0.38	200	230	250	7000	1000	61.5	52.5	28
BKP0.5B1-D-0.50	0.50	200	230	250	7000	1000	62.5	53.5	28.5
BKP0.5B1-D-0.65	0.65	200	230	250	7000	1000	63.5	54.5	29
BKP0.5B1-D-0.75	0.75	200	230	250	7000	1000	64.5	55.5	29.5
BKP0.5B1-D-0.88	0.88	200	230	250	7000	1000	65.5	56.5	30
BKP0.5B1-D-1.00	1.00	200	230	250	6000	850	66.5	57.5	30.5
BKP0.5B1-D-1.25	1.25	200	230	250	5000	700	68.5	59.5	31.5
BKP0.5B1-D-1.50	1.50	200	230	250	4000	600	70.5	61.5	32.5
BKP0.5B1-D-1.75	1.75	180	210	230	4000	600	72.5	63.5	33.5
BKP0.5B1-D-2.00	2.00	160	190	210	3000	500	74.5	65.5	34.5

---

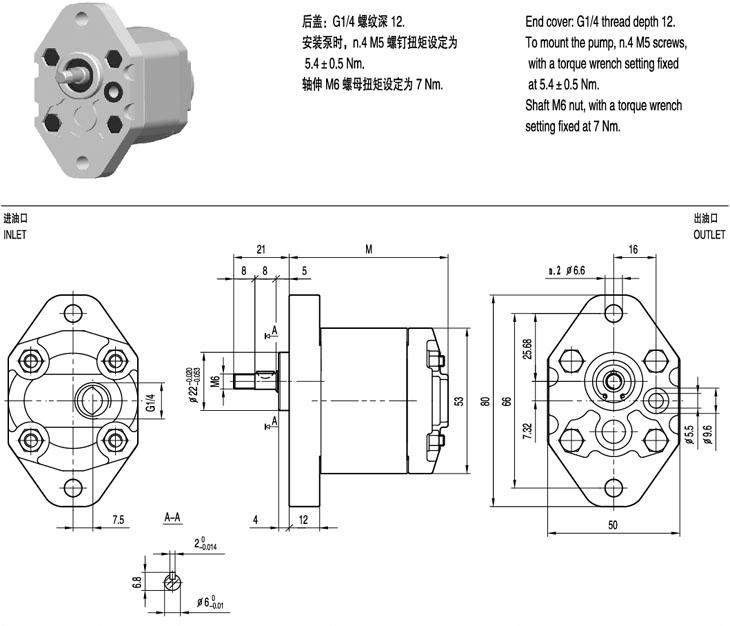

BKP0.5A0 Gear Pump

Type	Displacement	Max pressure			Max. speed	Min. speed	Dimensions
		P1	P2	P3			M
	(ml/r)	bar	bar	bar	r/min	r/min	mm
BKP0.5A0-D-0.19	0.19	200	230	250	7000	1000	60
BKP0.5A0-D-0.26	0.26	200	230	250	7000	1000	60.5
BKP0.5A0-D-0.38	0.38	200	230	250	7000	1000	61.5
BKP0.5A0-D-0.50	0.50	200	230	250	7000	1000	62.5
BKP0.5A0-D-0.65	0.65	200	230	250	7000	1000	63.5
BKP0.5A0-D-0.75	0.75	200	230	250	7000	1000	64.5
BKP0.5A0-D-0.88	0.88	200	230	250	7000	1000	65.5
BKP0.5A0-D-1.00	1.00	200	230	250	6000	850	66.5
BKP0.5A0-D-1.25	1.25	200	230	250	5000	700	68.5
BKP0.5A0-D-1.50	1.50	200	230	250	4000	600	70.5
BKP0.5A0-D-1.75	1.75	180	210	230	4000	600	72.5
BKP0.5A0-D-2.00	2.00	160	190	210	3000	500	74.5

---

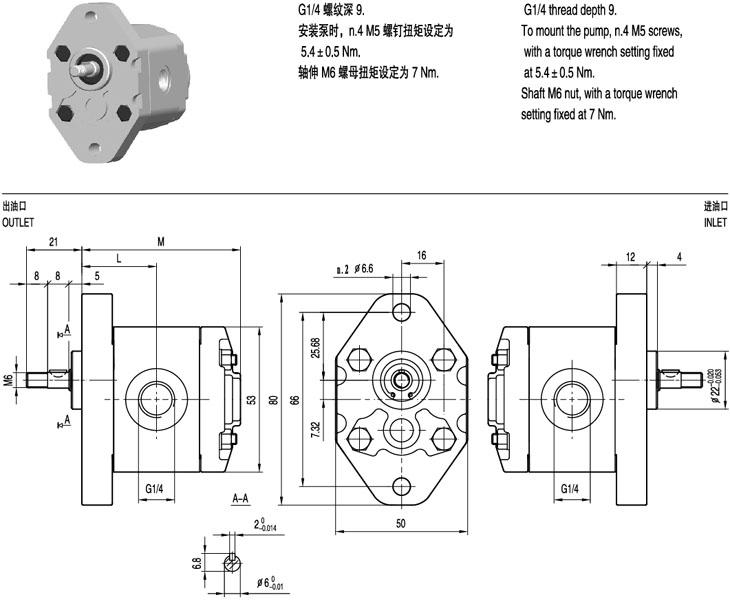

BKP0.5A1 Gear Pump

Type	Displacement	Max pressure			Max. speed	Min. speed	Dimensions
		P1	P2	P3			M	L
	(ml/r)	bar	bar	bar	r/min	r/min	mm	mm
BKP0.5A1-D-0.19	0.19	200	230	250	7000	1000	60	27.2
BKP0.5A1-D-0.26	0.26	200	230	250	7000	1000	60.5	27.5
BKP0.5A1-D-0.38	0.38	200	230	250	7000	1000	61.5	28
BKP0.5A1-D-0.50	0.50	200	230	250	7000	1000	62.5	28.5
BKP0.5A1-D-0.65	0.65	200	230	250	7000	1000	63.5	29
BKP0.5A1-D-0.75	0.75	200	230	250	7000	1000	64.5	29.5
BKP0.5A1-D-0.88	0.88	200	230	250	7000	1000	65.5	30
BKP0.5A1-D-1.00	1.00	200	230	250	6000	850	66.5	30.5
BKP0.5A1-D-1.25	1.25	200	230	250	5000	700	68.5	31.5
BKP0.5A1-D-1.50	1.50	200	230	250	4000	600	70.5	32.5
BKP0.5A1-D-1.75	1.75	180	210	230	4000	600	72.5	33.5
BKP0.5A1-D-2.00	2.00	160	190	210	3000	500	74.5	34.5

---

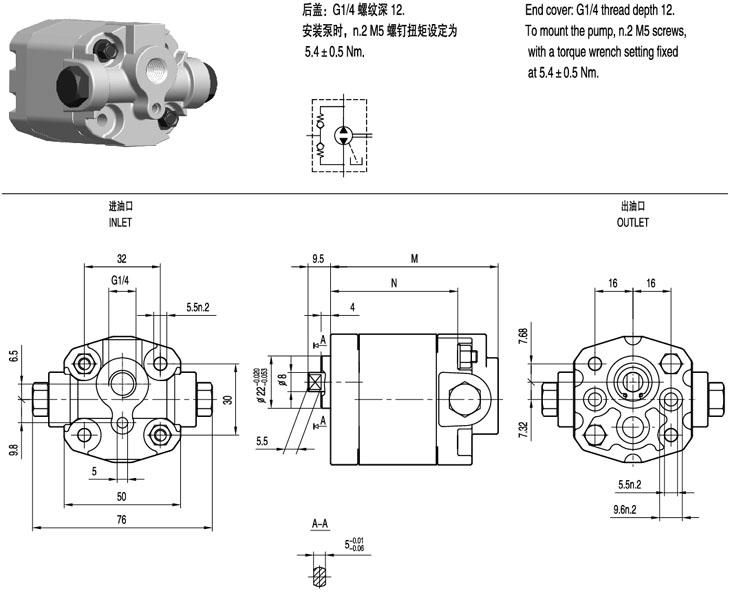

BKP0.5B2R-VQ1 Gear Pump

Type	Displacement	Max pressure			Max. speed	Min. speed	Dimensions
		P1	P2	P3			M	N
	(ml/r)	bar	bar	bar	r/min	r/min	mm	mm
BKP0.5B2-R-0.19-VQ1	0.19	150	170	190	7000	1000	68	51
BKP0.5B2-R-0.26-VQ1	0.26	150	170	190	7000	1000	68.5	51.5
BKP0.5B2-R-0.38-VQ1	0.38	150	170	190	7000	1000	69.5	52.5
BKP0.5B2-R-0.50-VQ1	0.50	150	170	190	7000	1000	70.5	53.5
BKP0.5B2-R-0.65-VQ1	0.65	150	170	190	7000	1000	71.5	54.5
BKP0.5B2-R-0.75-VQ1	0.75	150	170	190	7000	1000	72.5	55.5
BKP0.5B2-R-0.88-VQ1	0.88	150	170	190	7000	1000	73.5	56.5
BKP0.5B2-R-1.00-VQ1	1.00	150	170	190	6000	850	74.5	57.5
BKP0.5B2-R-1.25-VQ1	1.25	150	170	190	5000	700	76.5	59.5
BKP0.5B2-R-1.50-VQ1	1.50	150	170	190	4000	600	78.5	61.5
BKP0.5B2-R-1.75-VQ1	1.75	150	170	190	4000	600	80.5	63.5
BKP0.5B2-R-2.00-VQ1	2.00	150	170	190	3000	500	82.5	65.5

---

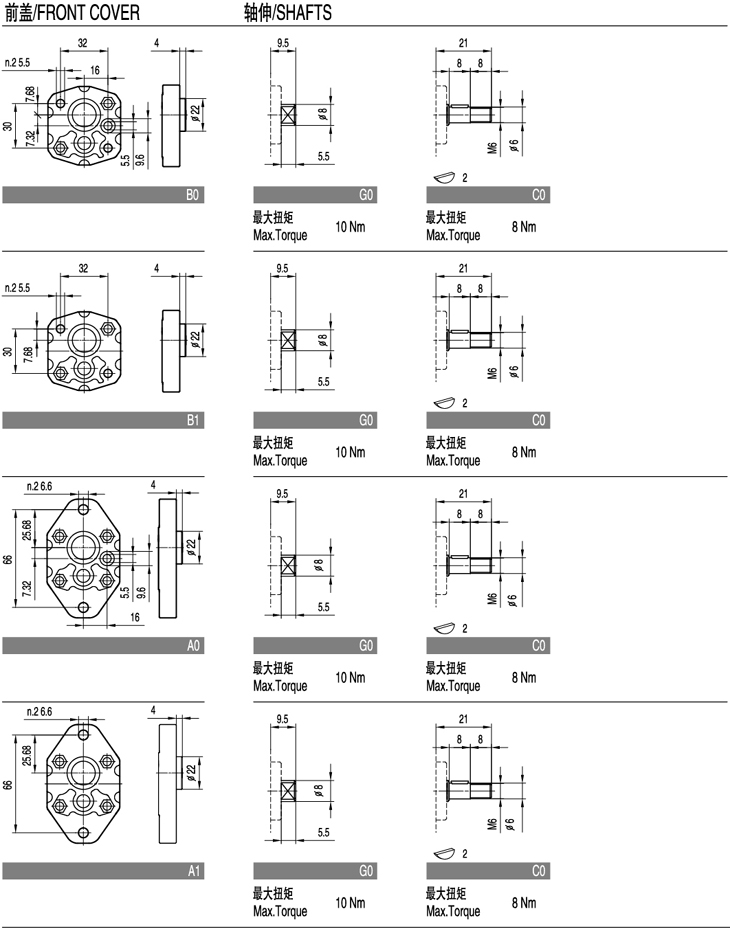

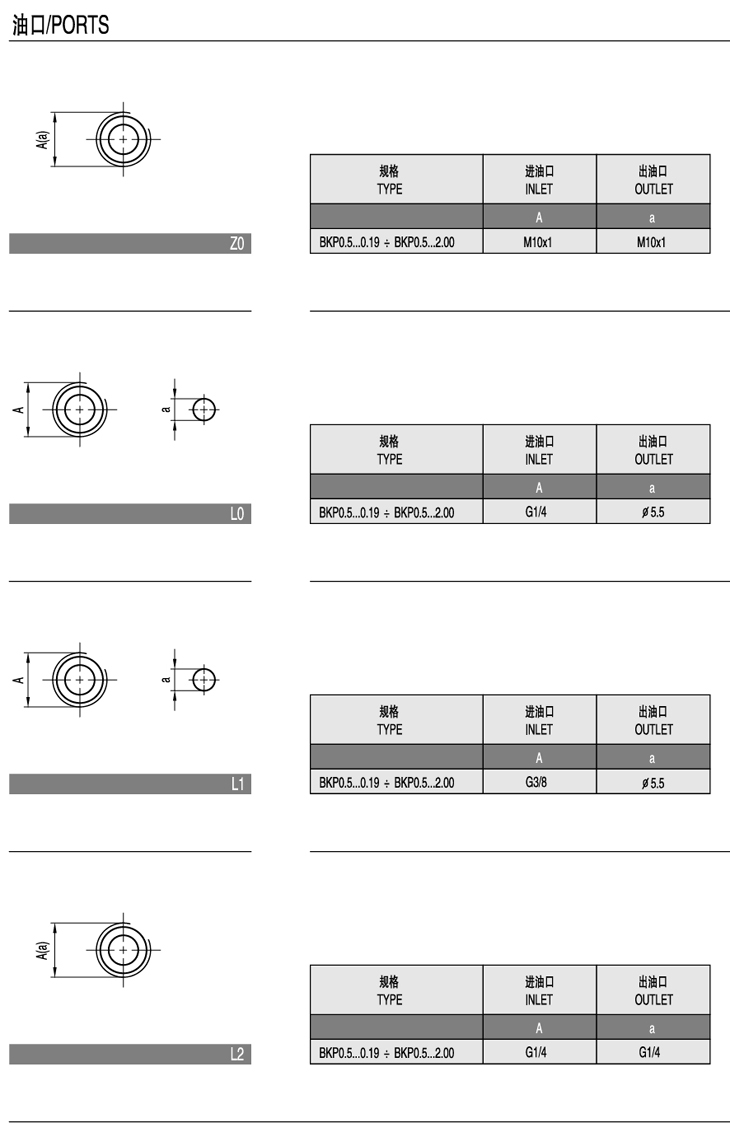

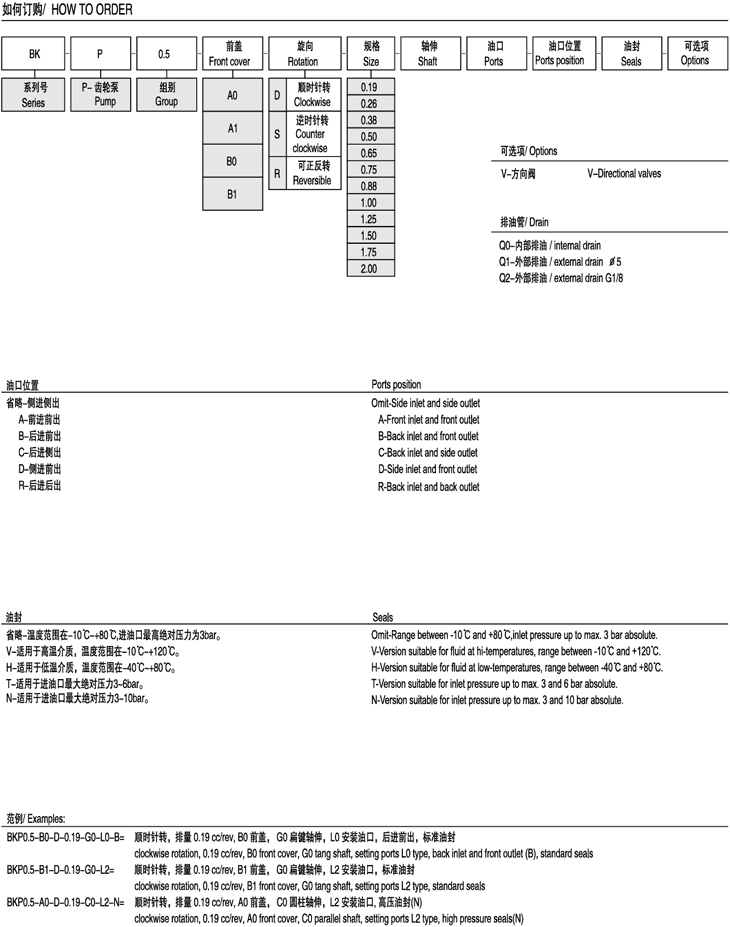

BKP0.5 Selection Code

BKP0.5B0 Gear Pump	BKP0.5B1 Gear Pump	BKP0.5A0 Gear Pump
BKP0.5A1 Gear Pump	BKP0.5B2R-VQ1 Gear Pump
