BHP3

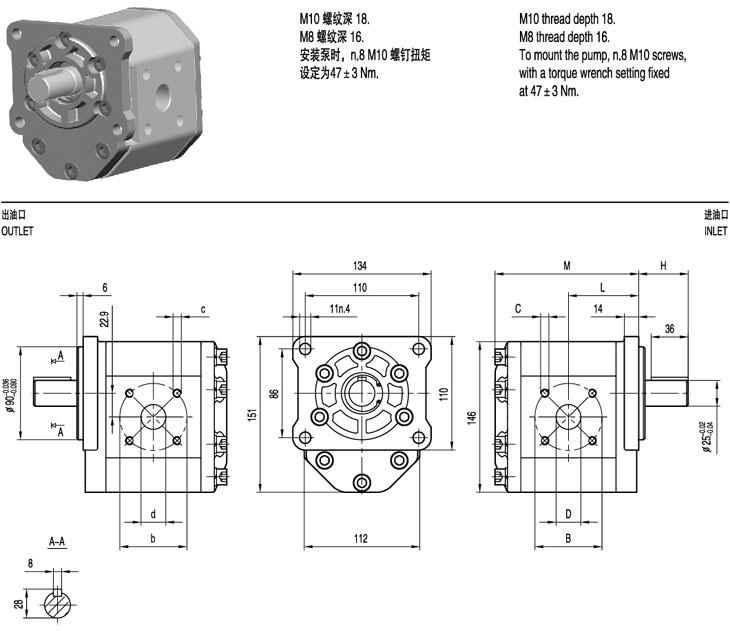

BHP3B0 Gear Pump

Type	Disp.	Max pressure			Max. speed	Min. speed	Dimensions
		P1	P2	P3			M	L	H	B	D	C	b	d	c
	(ml/r)	bar	bar	bar	r/min	r/min	mm	mm	mm	mm	mm		mm	mm
BHP3B0-D-20	20	250	265	280	3500	600	128	63	48	50	20	M8	50	16.5	M8
BHP3B0-D-22	22	250	265	280	3500	600	130	64	48	50	20	M8	50	16.5	M8
BHP3B0-D-26	26	250	265	280	3000	600	133	65	48	50	20	M8	50	20	M8
BHP3B0-D-33	33	230	250	270	3000	500	139	68	48	65	25	M8	65	20	M8
BHP3B0-D-39	39	230	250	270	3000	500	146	72	48	65	25	M8	65	20	M8
BHP3B0-D-46	46	230	250	270	3000	500	152	75	48	65	25	M8	65	20	M8
BHP3B0-D-50	50	220	240	260	3000	500	156	77	51	76	33	M10	76	25	M10
BHP3B0-D-52	52	220	240	260	3000	500	158	78	51	76	33	M10	76	25	M10
BHP3B0-D-55	55	200	230	250	2800	400	160	79	51	76	33	M10	76	25	M10
BHP3B0-D-63	63	200	230	250	2800	400	168	83	51	76	33	M10	76	25	M10
BHP3B0-D-71	71	180	200	220	2500	400	175	86	51	76	33	M10	76	25	M10

.

---

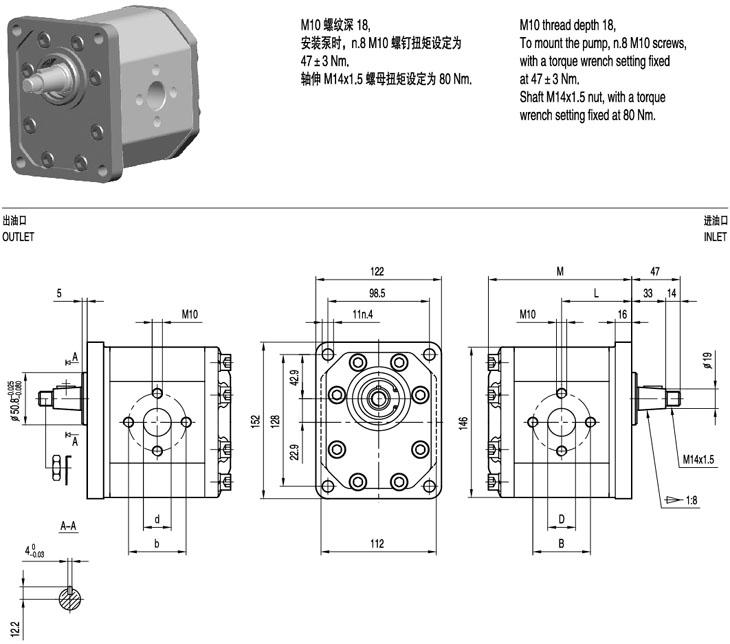

BHP3B1 Gear Pump

Type	Displacement	Max pressure			Max. speed	Min. speed	Dimensions
		P1	P2	P3			M	L	B	D	b	d
	(ml/r)	bar	bar	bar	r/min	r/min	mm	mm	mm	mm	mm	mm
BHP3B1-D-20	20	250	265	280	3500	600	128	63	56	27	56	19
BHP3B1-D-22	22	250	265	280	3500	600	130	64	56	27	56	19
BHP3B1-D-26	26	250	265	280	3000	600	133	65	56	27	56	19
BHP3B1-D-33	33	230	250	270	3000	500	139	68	56	27	56	19
BHP3B1-D-39	39	230	250	270	3000	500	146	72	56	27	56	19
BHP3B1-D-46	46	230	250	270	3000	500	152	75	51	27	51	27
BHP3B1-D-50	50	220	240	260	3000	500	156	77	56	27	56	27
BHP3B1-D-52	52	220	240	260	3000	500	158	78	56	27	56	27
BHP3B1-D-55	55	200	230	250	2800	400	160	79	62	33	51	27
BHP3B1-D-63	63	200	230	250	2800	400	168	83	62	33	51	27
BHP3B1-D-71	71	180	200	220	2500	400	175	86	62	33	51	27

---

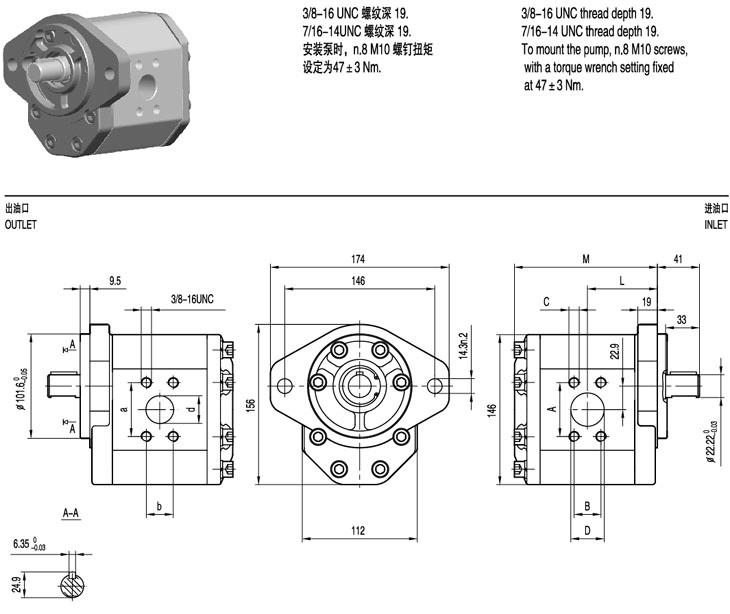

BHP3A0 Gear Pump

Type	Disp.	Max pressure			Max. speed	Min. speed	Dimensions
		P1	P2	P3			M	L	A	B	C	D	a	d	d
	(ml/r)	bar	bar	bar	r/min	r/min	mm	mm	mm	mm	mm	mm	mm	mm	mm
BHP3A0-D-20	20	250	265	280	3500	600	128	63	52.4	26.2	3/8	27	47.6	22.2	19
BHP3A0-D-22	22	250	265	280	3500	600	130	64	52.4	26.2	3/8	27	47.6	22.2	19
BHP3A0-D-26	26	250	265	280	3000	600	133	65	52.4	26.2	3/8	27	47.6	22.2	19
BHP3A0-D-33	33	230	250	270	3000	500	139	68	52.4	26.2	3/8	27	47.6	22.2	19
BHP3A0-D-39	39	230	250	270	3000	500	146	72	52.4	26.2	3/8	27	47.6	22.2	19
BHP3A0-D-46	46	230	250	270	3000	500	152	75	52.4	26.2	3/8	27	47.6	22.2	19
BHP3A0-D-50	50	220	240	260	3000	500	156	77	52.4	26.2	3/8	27	47.6	22.2	19
BHP3A0-D-52	52	220	240	260	3000	500	158	78	52.4	26.2	3/8	27	47.6	22.2	19
BHP3A0-D-55	55	200	230	250	2800	400	160	79	58.7	30.2	7/16	33	52.4	26.2	27
BHP3A0-D-63	63	200	230	250	2800	400	168	83	58.7	30.2	7/16	33	52.4	26.2	27
BHP3A0-D-71	71	180	200	220	2500	400	175	86	58.7	30.2	7/16	33	52.4	26.2	27

---

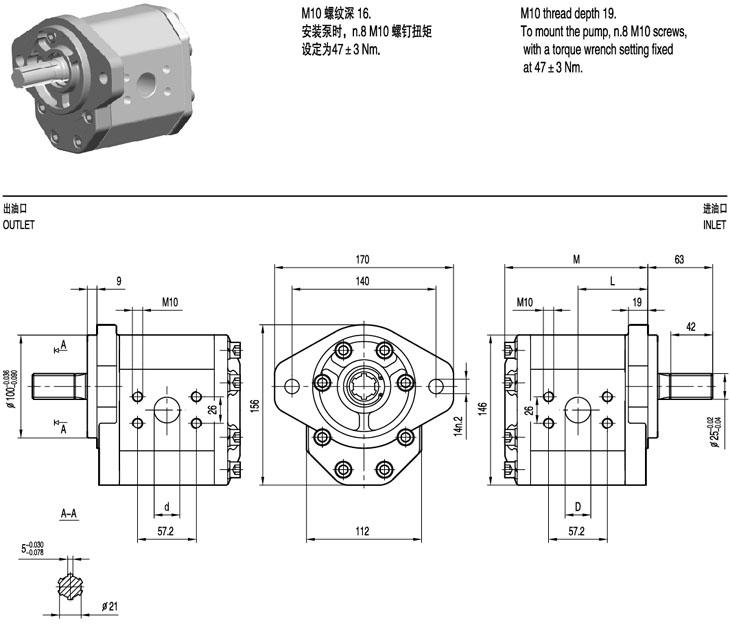

BHP3A1 Gear Pump

Type	Displacement	Max pressure			Max. speed	Min. speed	Dimensions
		P1	P2	P3			M	L	D	d
	(ml/r)	bar	bar	bar	r/min	r/min	mm	mm	mm	mm
BHP3A1-D-20	20	250	265	280	3500	600	128	63	25	20
BHP3A1-D-25	25	250	265	280	3000	600	133	65	25	20
BHP3A1-D-32	32	230	250	270	3000	500	139	68	30	20
BHP3A1-D-40	40	230	250	270	3000	500	146	72	35	20
BHP3A1-D-50	50	220	240	260	3000	500	156	77	35	25
BHP3A1-D-63	63	200	230	250	2800	400	168	83	35	25

---

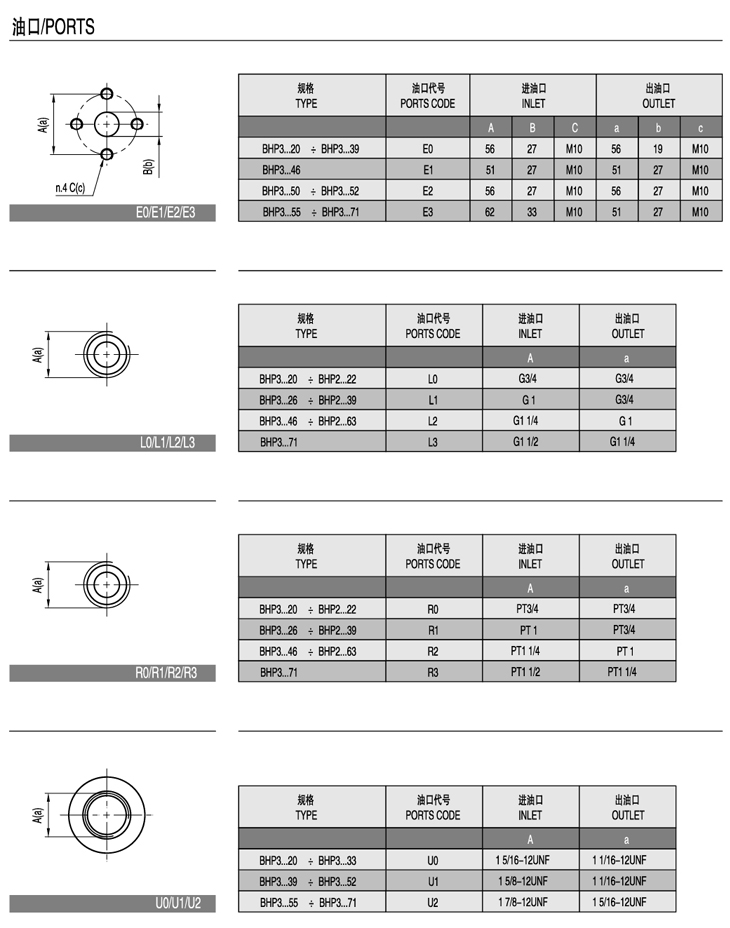

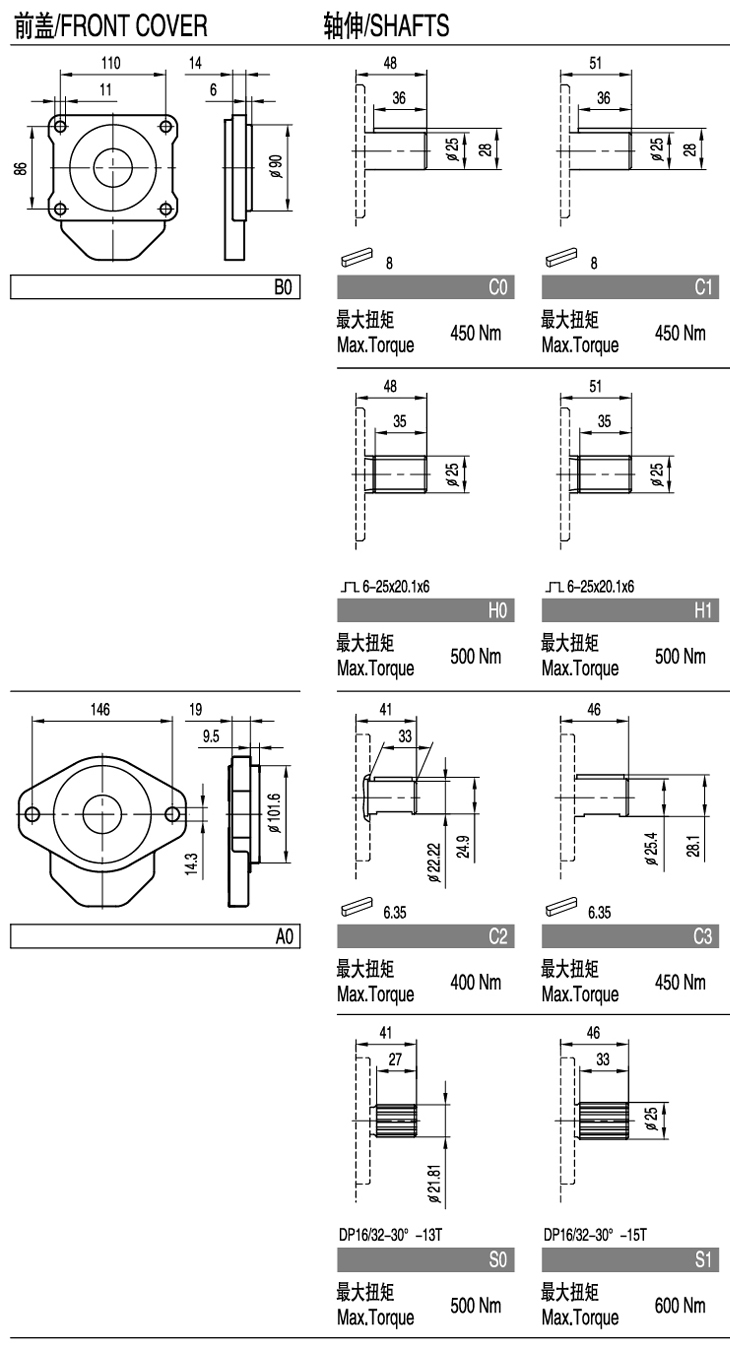

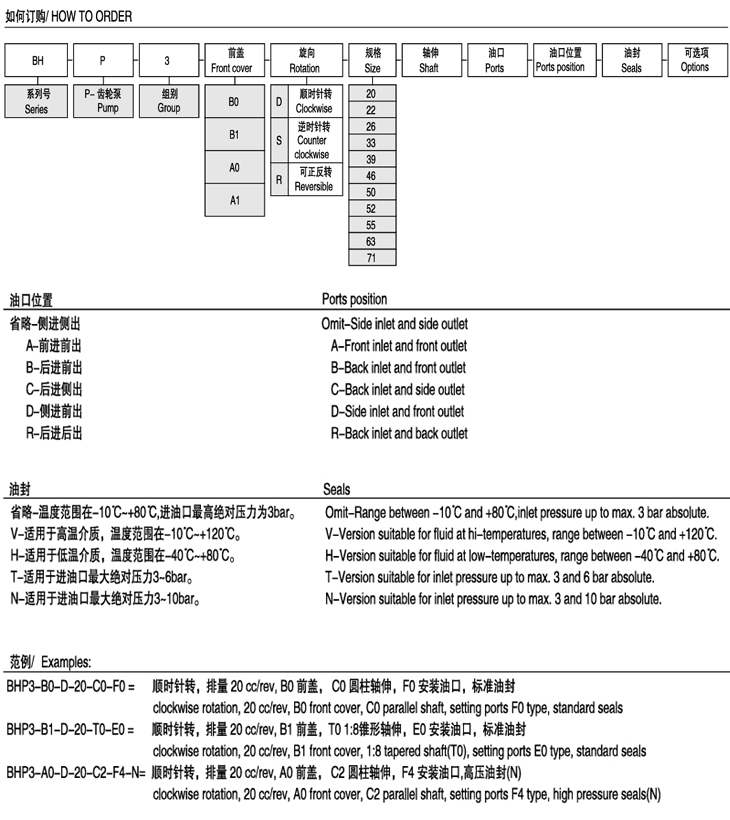

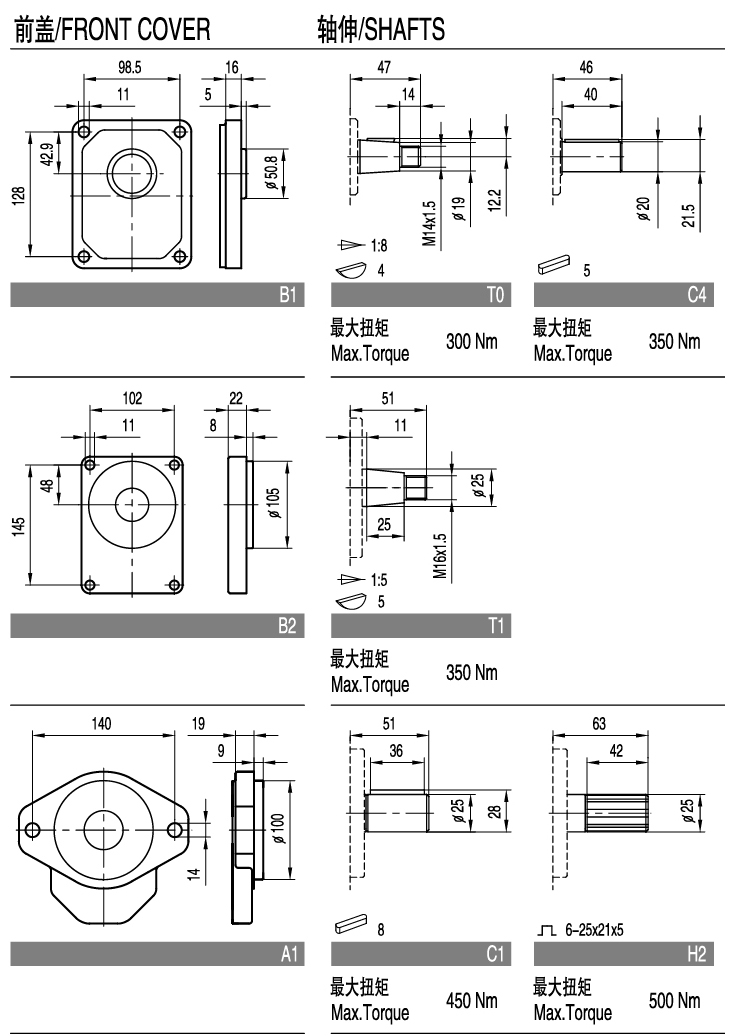

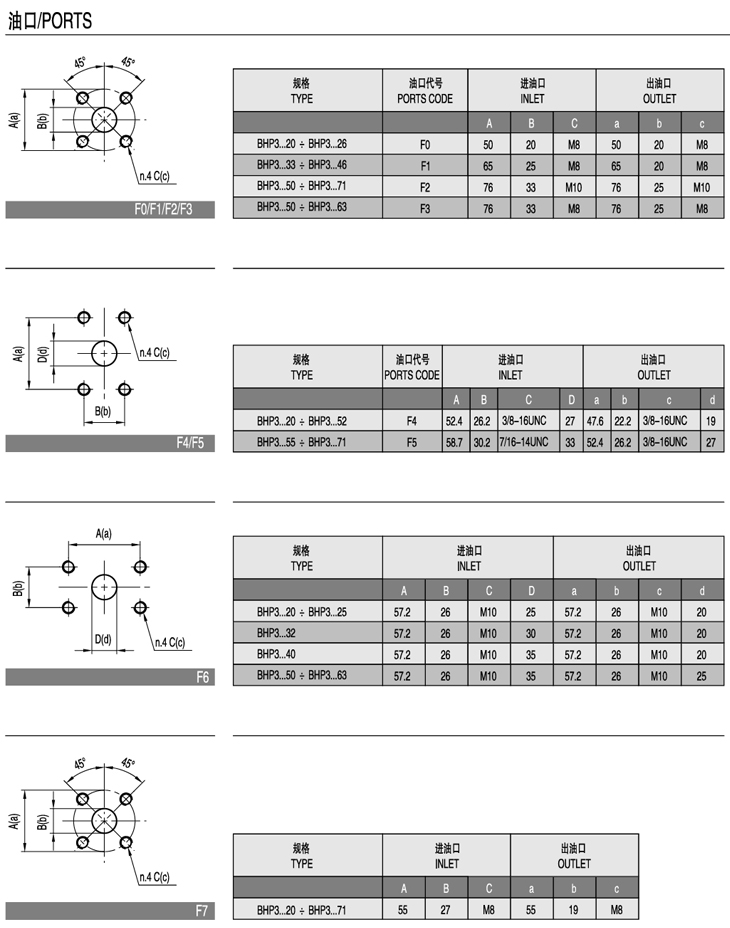

BHP3 Selection Code

BHP3B0 Gear Pump	BHP3B1 Gear Pump	BHP3A0 Gear Pump
BHP3A1 Gear Pump
