BDP2.5

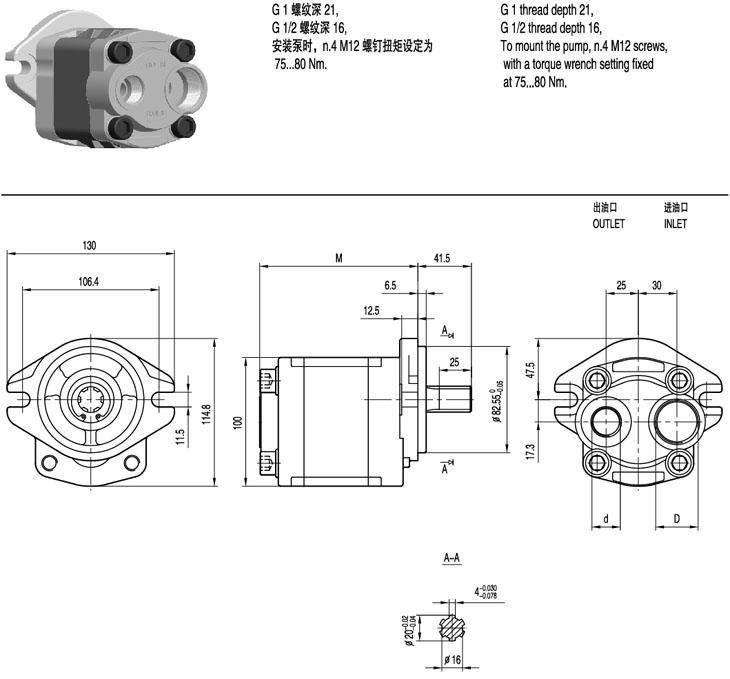

BDP2.5A0-R Gear Pump

Type	Displacement	Max pressure			Max. speed	Min. speed	Dimensions
		P1	P2	P3			M	D	d
	(ml/r)	bar	bar	bar	r/min	r/min	mm
BDP2.5A0-D-23-R	23	230	250	260	3500	600	118	G1	G1/2
BDP2.5A0-D-25-R	25	230	250	260	3500	600	120	G1	G1/2
BDP2.5A0-D-26.5-R	26.5	230	250	260	3500	600	122	G1	G1/2
BDP2.5A0-D-28-R	28	230	250	260	3500	600	124	G1	G1/2
BDP2.5A0-D-30-R	30	230	250	260	3000	600	126	G1	G1/2
BDP2.5A0-D-32-R	32	200	230	250	3000	600	129	G1	G1/2
BDP2.5A0-D-36-R	36	200	230	250	2750	500	133	G1	G1/2
BDP2.5A0-D-40-R	40	160	180	200	2500	500	138	G1	G1/2

.

---

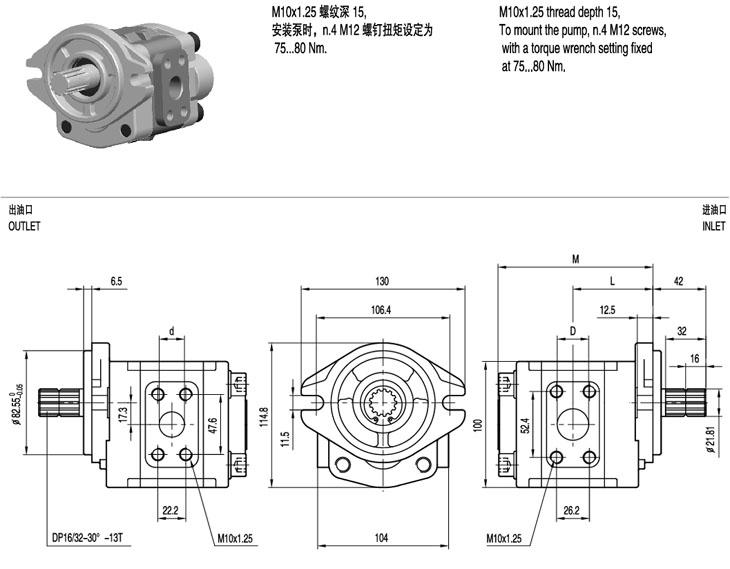

BDP2.5A0 Gear Pump

Type	Displacement	Max pressure			Max. speed	Min. speed	Dimensions
		P1	P2	P3			M	L	D	d
	(ml/r)	bar	bar	bar	r/min	r/min	mm	mm	mm	mm
BDP2.5A0-D-23	23	230	250	260	3500	600	118	60.5	25	20
BDP2.5A0-D-25	25	230	250	260	3500	600	120	61.8	25	20
BDP2.5A0-D-26.5	26.5	230	250	260	3500	600	122	32.8	25	20
BDP2.5A0-D-28	28	230	250	260	3500	600	124	63.8	25	20
BDP2.5A0-D-30	30	230	250	260	3000	600	126	64.8	25	20
BDP2.5A0-D-32	32	200	230	250	3000	600	129	66.8	25	20
BDP2.5A0-D-36	36	200	230	250	2750	500	133	68.3	25	20
BDP2.5A0-D-40	40	160	180	200	2500	500	138	70.8	28	20

---

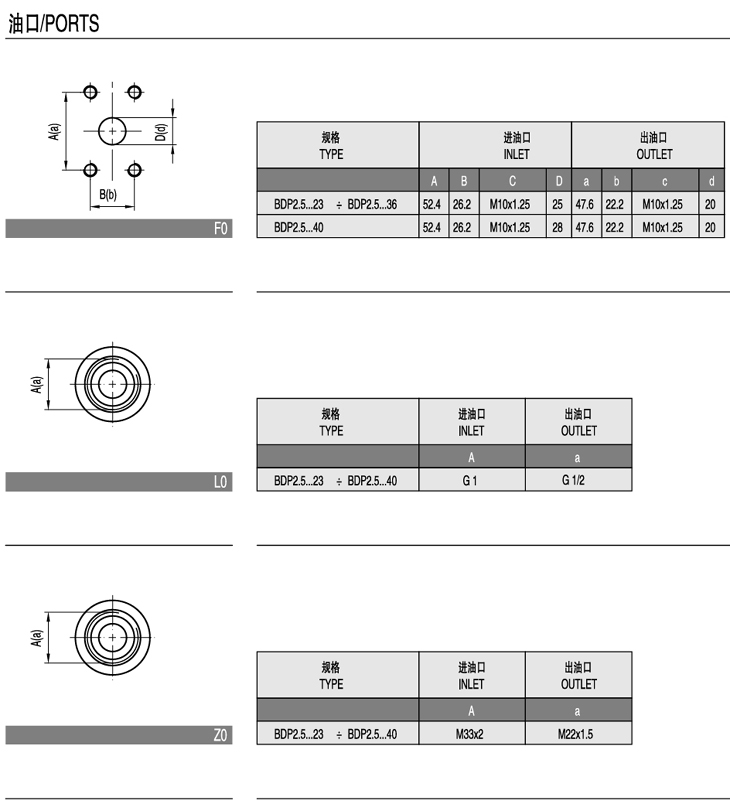

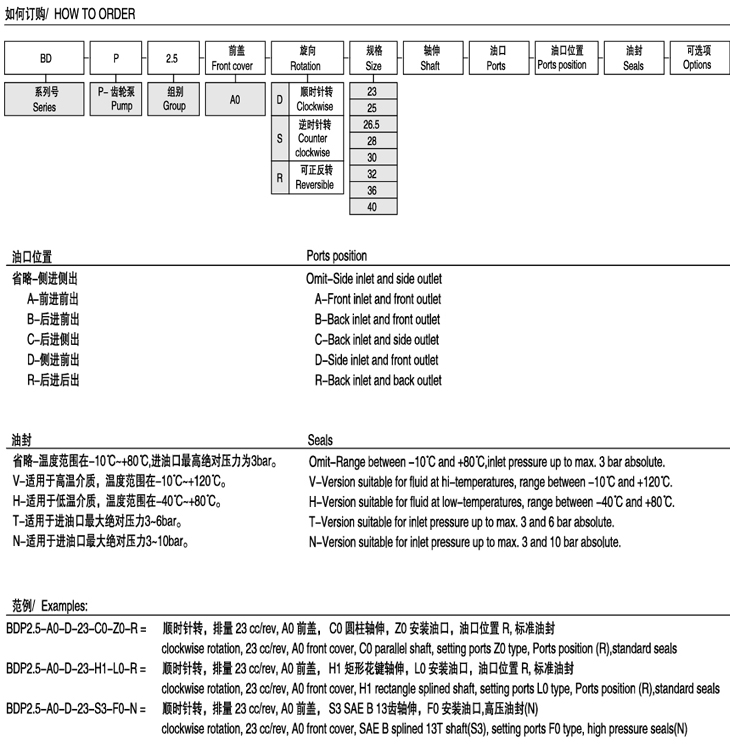

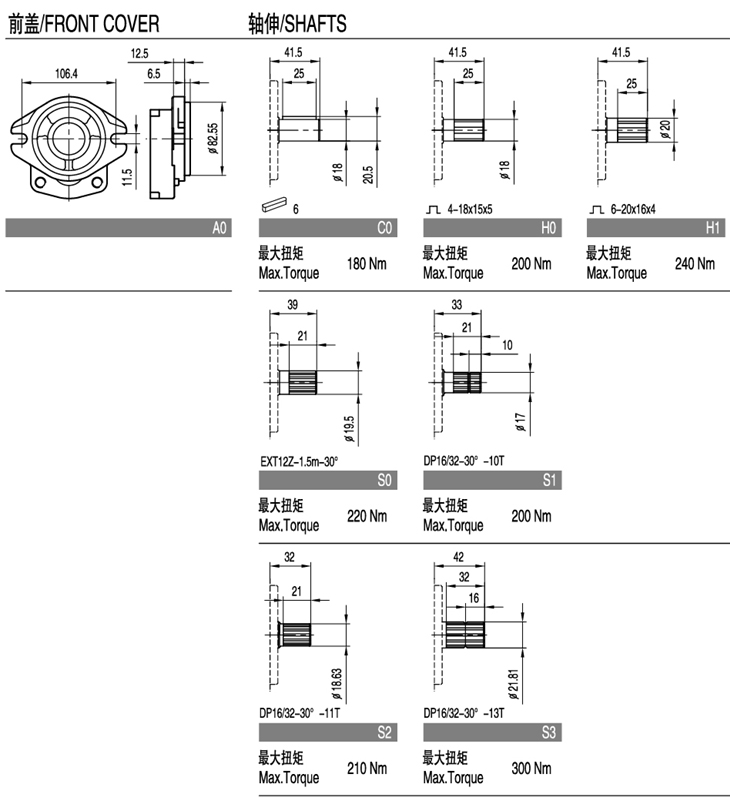

BDP2.5 Selection Code

BDP2.5A0-R Gear Pump	BDP2.5A0 Gear Pump
