BAP3.5

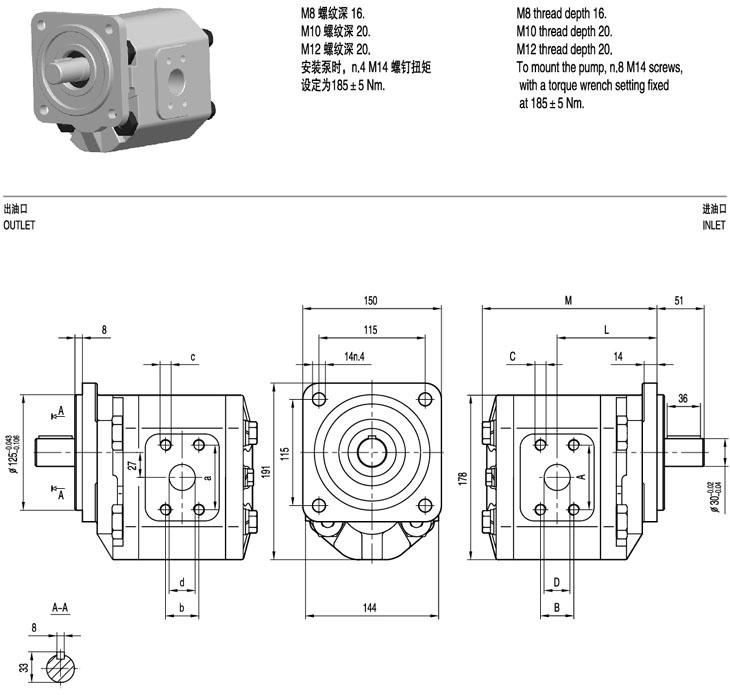

BAP3.5Q0 Gear Pump

Type	Disp.	Max pressure			Max. speed	Min. speed	Dimensions
		P1	P2	P3			M	L	A	B	C	D	a	b	c	d
	(ml/r)	bar	bar	bar	r/min	r/min	mm	mm	mm	mm		mm	mm	mm		mm
BAP3.5Q0-D-40	40	250	265	280	2750	600	189	108	48	22	M8	20	48	22	M8	20
BAP3.5Q0-D-50	50	250	265	280	2750	600	195	111	52	26	M10	25	48	22	M8	20
BAP3.5Q0-D-63	63	250	265	280	2750	500	203	115	60	30	M10	32	52	26	M10	25
BAP3.5Q0-D-71	71	230	250	270	2500	500	208	117	70	36	M12	35	60	30	M10	32
BAP3.5Q0-D-80	80	230	250	270	2500	500	213	120	70	36	M12	35	60	30	M10	32
BAP3.5Q0-D-90	90	200	230	250	2500	500	219	123	70	36	M12	40	60	30	M10	32
BAP3.5Q0-D-100	100	200	230	250	2500	500	225	126	70	36	M12	40	60	30	M10	32

.

---

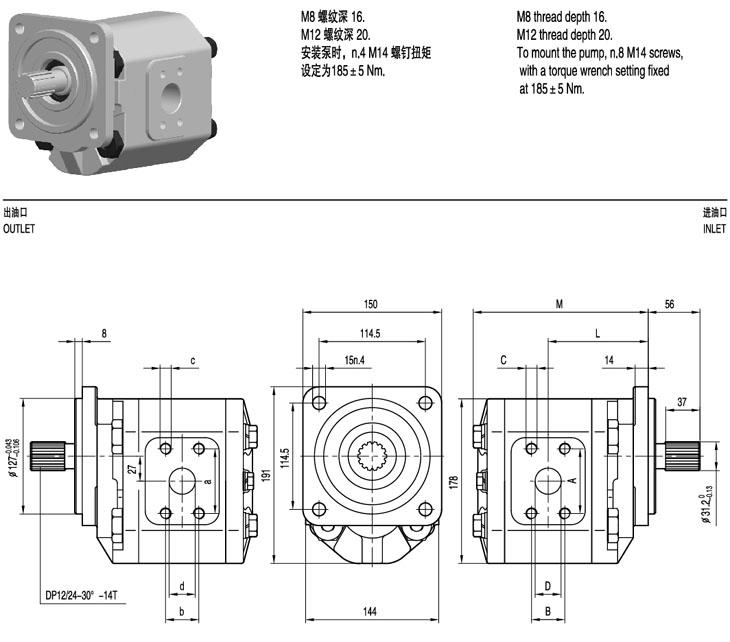

BAP3.5Q1 Gear Pump

Type	Disp.	Max pressure			Max. speed	Min. speed	Dimensions
		P1	P2	P3			M	L	A	B	C	D	a	b	c	d
	(ml/r)	bar	bar	bar	r/min	r/min	mm	mm	mm	mm		mm	mm	mm		mm
BAP3.5Q1-D-40	40	250	265	280	2750	600	189	108	60	30	M10	32	52	26	M10	25
BAP3.5Q1-D-50	50	250	265	280	2750	600	195	111	60	30	M10	32	52	26	M10	25
BAP3.5Q1-D-63	63	250	265	280	2750	500	203	115	60	30	M10	32	52	26	M10	25
BAP3.5Q1-D-71	71	230	250	270	2500	500	208	117	70	36	M12	35	60	30	M10	32
BAP3.5Q1-D-80	80	230	250	270	2500	500	213	120	70	36	M12	35	60	30	M10	32
BAP3.5Q1-D-90	90	200	230	250	2500	500	219	123	70	36	M12	40	60	30	M10	32
BAP3.5Q1-D-100	100	200	230	250	2500	500	225	126	70	36	M12	40	60	30	M10	32

---

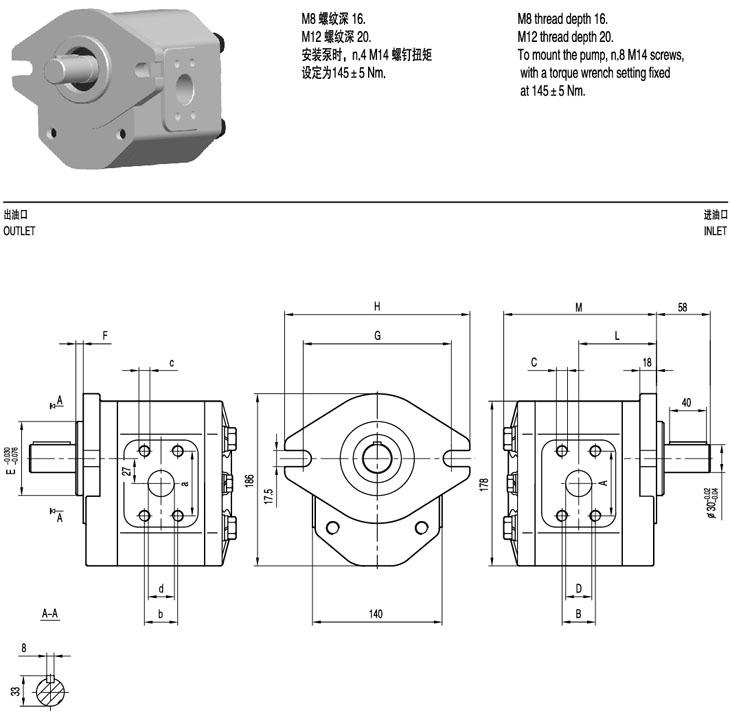

BAP3.5A0[BAP3.5A1] Gear Pump

Type	Disp.	Max pressure			Max. speed	Min. speed	Dimensions
		P1	P2	P3			M	L	E	F	G	H	A	B	C	D	a	b	c	d
	(ml/r)	bar	bar	bar	r/min	r/min	mm	mm	mm	mm	mm	mm	mm	mm		mm	mm	mm		mm
BAP3.5A0-D-50	50	250	265	280	2750	600	171	87	80	8	160	200	60	30	M10	32	52	26	M8	25
BAP3.5A0-D-63	63	250	265	280	2750	500	179	91	80	8	160	200	60	30	M10	32	52	26	M8	25
BAP3.5A0-D-71	71	230	250	270	2500	500	184	93	80	8	160	200	60	36	M12	35	60	36	M10	28
BAP3.5A0-D-80	80	230	250	270	2500	500	189	96	80	8	160	200	60	36	M12	35	60	36	M10	28
BAP3.5A0-D-90	90	200	230	250	2500	500	195	99	80	8	160	200	60	36	M12	40	60	36	M10	32
BAP3.5A1-D-100	100	200	230	250	2500	500	201	102	127	6.3	180	215	60	36	M12	40	60	36	M10	32

---

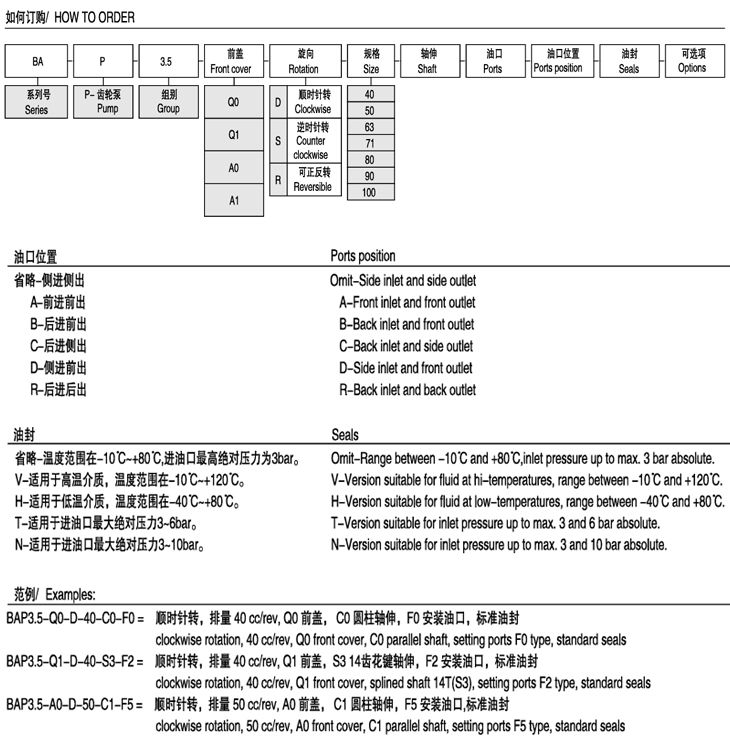

BAP3.5 Selection Code

BAP3.5Q0 Gear Pump	BAP3.5Q1 Gear Pump	BAP3.5A0[BAP3.5A1] Gear Pump
