BAP2.5[BHP2.5]

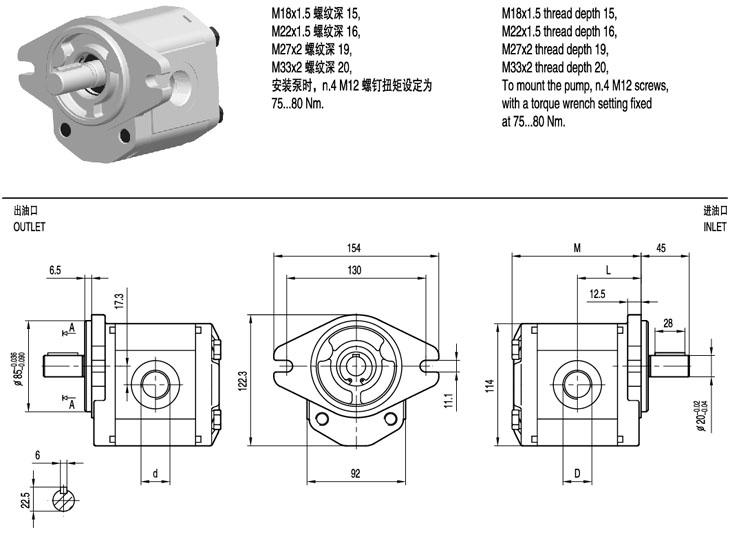

BAP2.5A0 Gear Pump

Type	Displacement	Max pressure			Max. speed	Min. speed	Dimensions
		P1	P2	P3			M	L	D	d
	(ml/r)	bar	bar	bar	r/min	r/min	mm	mm
BAP2.5A0-D-10	10	250	270	290	4000	800	110	53.3	M22x1.5	M18x1.5
BAP2.5A0-D-12.5	12.5	250	270	290	4000	800	113	54.8	M22x1.5	M18x1.5
BAP2.5A0-D-14	14	250	270	290	4000	700	115	55.8	M22x1.5	M18x1.5
BAP2.5A0-D-16	16	250	270	290	3500	700	118	57.1	M27x2	M22x1.5
BAP2.5A0-D-18	18	250	270	290	3500	600	120	58.3	M27x2	M22x1.5
BAP2.5A0-D-19	19	250	270	290	3500	600	121	58.8	M27x2	M22x1.5
BAP2.5A0-D-20	20	250	270	290	3000	500	123	59.6	M27x2	M22x1.5
BAP2.5A0-D-23	23	230	250	260	3500	500	126	61.3	M33x2	M27x2
BAP2.5A0-D-25	25	230	250	260	3500	500	129	62.6	M33x2	M27x2
BAP2.5A0-D-26.5	26.5	230	250	260	3500	500	131	63.6	M33x2	M27x2
BAP2.5A0-D-28	28	230	250	260	3500	500	133	64.6	M33x2	M27x2
BAP2.5A0-D-30	30	230	250	260	3000	400	135	65.6	M33x2	M27x2
BAP2.5A0-D-32	32	200	230	250	3000	400	138	67.1	M33x2	M27x2
BAP2.5A0-D-36	36	200	230	250	2750	400	142	69.1	M33x2	M27x2
BAP2.5A0-D-40	40	160	180	200	2500	400	148	71.6	M33x2	M27x2
BAP2.5A0-D-45	45	160	180	200	2500	400	153	74.6	M33x2	M27x2

.

---

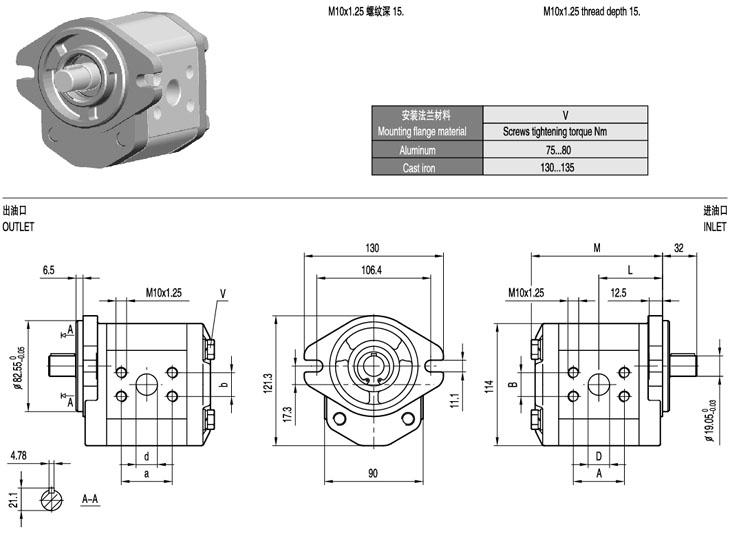

BAP2.5A1[BHP2.5A1] Gear Pump

Type	Disp.	Max pressure			Max. speed	Min. speed	Dimensions
		P1	P2	P3			M	L	A	B	D	a	b	d
	(ml/r)	bar	bar	bar	r/min	r/min	mm	mm	mm	mm	mm	mm	mm	mm
BAP2.5A1-D-10	10	250	270	290	4000	800	110	53.3	47.6	22.2	20	47.6	22.2	13
BAP2.5A1-D-12.5	12.5	250	270	290	4000	800	113	54.8	47.6	22.2	20	47.6	22.2	13
BAP2.5A1-D-14	14	250	270	290	4000	700	115	55.8	47.6	22.2	20	47.6	22.2	13
BAP2.5A1-D-16	16	250	270	290	3500	700	118	57.1	47.6	22.2	20	47.6	22.2	13
BAP2.5A1-D-18	18	250	270	290	3500	600	120	58.3	52.4	26.2	25	47.6	22.2	20
BAP2.5A1-D-19	19	250	270	290	3500	600	121	58.8	52.4	26.2	25	47.6	22.2	20
BAP2.5A1-D-20	20	250	270	290	3000	500	123	59.6	52.4	26.2	25	47.6	22.2	20
BAP2.5A1-D-23	23	230	250	260	3500	500	126	61.3	52.4	26.2	25	47.6	22.2	20
BAP2.5A1-D-25	25	230	250	260	3500	500	129	62.6	52.4	26.2	25	47.6	22.2	20
BAP2.5A1-D-26.5	26.5	230	250	260	3500	500	131	63.6	52.4	26.2	25	47.6	22.2	20
BAP2.5A1-D-28	28	230	250	260	3500	500	133	64.6	52.4	26.2	25	47.6	22.2	20
BAP2.5A1-D-30	30	230	250	260	3000	400	135	65.6	52.4	26.2	25	47.6	22.2	20
BAP2.5A1-D-32	32	200	230	250	3000	400	138	67.1	52.4	26.2	25	47.6	22.2	20
BAP2.5A1-D-36	36	200	230	250	2750	400	142	69.1	52.4	26.2	25	47.6	22.2	20
BAP2.5A1-D-40	40	160	180	200	2500	400	148	71.6	52.4	26.2	25	47.6	22.2	20
BAP2.5A1-D-45	45	160	180	200	2500	400	153	74.6	52.4	26.2	25	47.6	22.2	20

---

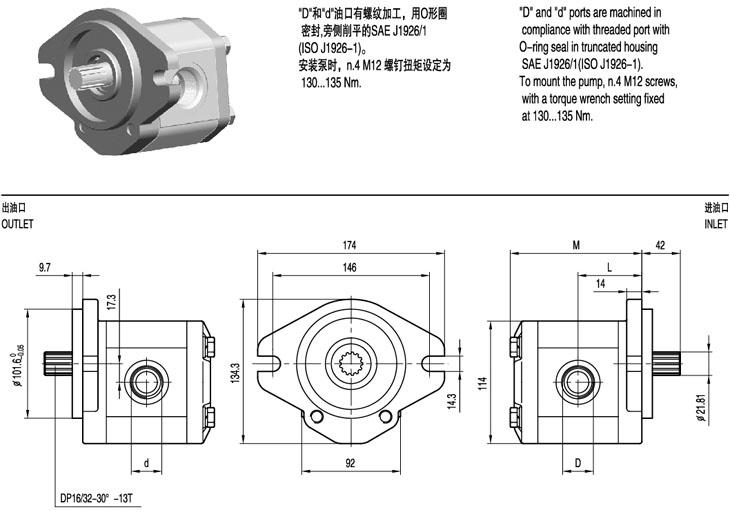

BHP2.5A2 Gear Pump

Type	Displacement	Max pressure			Max. speed	Min. speed	Dimensions
		P1	P2	P3			M	L	D	d
	(ml/r)	bar	bar	bar	r/min	r/min	mm	mm
BHP2.5A2-D-10	10	280	290	300	4000	800	110	53.3	1 1/16-12UNF	7/8-14UNF
BHP2.5A2-D-12.5	12.5	280	290	300	4000	800	113	54.8	1 1/16-12UNF	7/8-14UNF
BHP2.5A2-D-14	14	280	290	300	4000	700	115	55.8	1 1/16-12UNF	7/8-14UNF
BHP2.5A2-D-16	16	280	290	300	3500	700	118	57.1	1 1/16-12UNF	7/8-14UNF
BHP2.5A2-D-18	18	280	290	300	3500	600	120	58.3	1 1/16-12UNF	7/8-14UNF
BHP2.5A2-D-19	19	280	290	300	3500	600	121	58.8	1 1/16-12UNF	7/8-14UNF
BHP2.5A2-D-20	20	280	290	300	3000	500	123	59.6	1 1/16-12UNF	7/8-14UNF
BHP2.5A2-D-23	23	250	265	280	3500	500	126	61.3	1 1/16-12UNF	7/8-14UNF
BHP2.5A2-D-25	25	250	265	280	3500	500	129	62.6	1 5/16-12UNF	1 1/16-12UNF
BHP2.5A2-D-26.5	26.5	250	265	280	3500	500	131	63.6	1 5/16-12UNF	1 1/16-12UNF
BHP2.5A2-D-28	28	250	265	280	3500	500	133	64.6	1 5/16-12UNF	1 1/16-12UNF
BHP2.5A2-D-30	30	250	265	280	3000	400	135	65.6	1 5/16-12UNF	1 1/16-12UNF
BHP2.5A2-D-32	32	230	245	260	3000	400	138	67.1	1 5/16-12UNF	1 1/16-12UNF
BHP2.5A2-D-36	36	230	245	260	2750	400	142	69.1	1 5/16-12UNF	1 1/16-12UNF
BHP2.5A2-D-40	40	190	200	210	2500	400	148	71.6	1 5/16-12UNF	1 1/16-12UNF
BHP2.5A2-D-45	45	190	200	210	2500	400	153	74.6	1 5/16-12UNF	1 1/16-12UNF

---

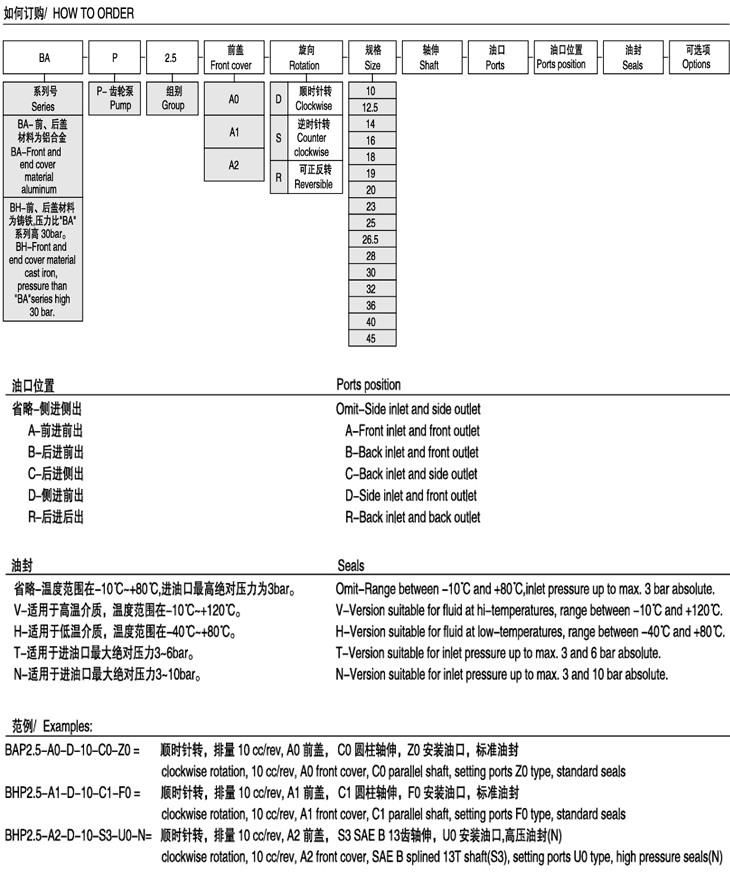

BAP1 Selection Code

BAP2.5A0 Gear Pump	BAP2.5A1[BHP2.5A1] Gear Pump	BHP2.5A2 Gear Pump
