BAP2(BHP2)

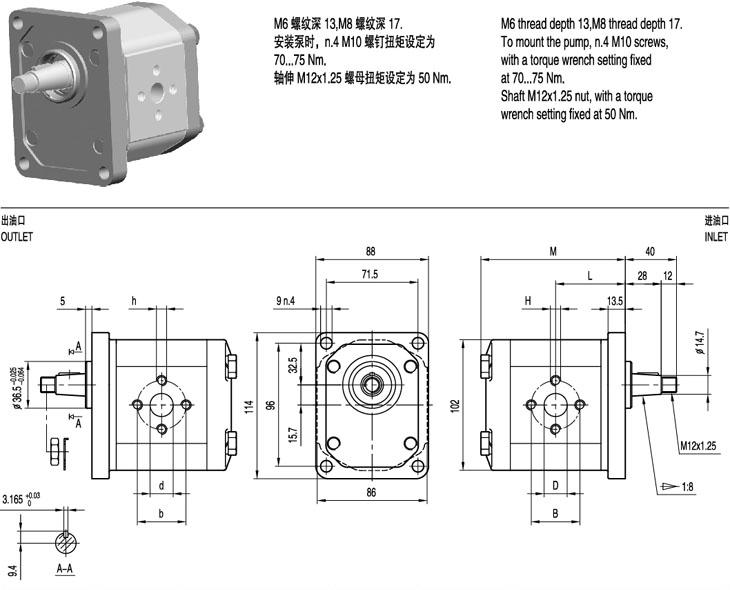

BHP2B0 Gear Pump

Type	Displace ment	Max pressure			Max. speed	Min. speed	Dimensions
	Displace ment	P1	P2	P3	Max. speed	Min. speed	M	L	B	D	H	b	d	h
	(ml/r)	bar	bar	bar	r/min	r/min	mm	mm	mm	mm		mm	mm
BHP2B0-D-3	3	270	285	300	4000	800	91.1	43.6	30	13	M6	30	13	M6
BHP2B0-D-4	4	270	285	300	4000	600	92.7	44.4	30	13	M6	30	13	M6
BHP2B0-D-6	6	270	285	300	4000	600	96.0	46.0	30	13	M6	30	13	M6
BHP2B0-D-8	8	270	285	300	3500	500	99.3	47.7	30	13	M6	30	13	M6
BHP2B0-D-10	10	270	285	300	3000	500	102.6	49.3	40	20	M8	30	13	M6
BHP2B0-D-12	12	270	285	300	3000	500	105.9	51.0	40	20	M8	30	13	M6
BHP2B0-D-14	14	250	265	280	4000	500	109.3	52.7	40	20	M8	30	13	M6
BHP2B0-D-16	16	250	265	280	4000	500	112.7	54.4	40	20	M8	30	13	M6
BHP2B0-D-18	18	250	265	280	3600	400	116.0	56.0	40	20	M8	30	13	M6
BHP2B0-D-20	20	220	235	250	3200	400	119.3	57.7	40	20	M8	30	13	M6
BHP2B0-D-22	22	220	235	250	3000	400	122.6	59.3	40	20	M8	30	13	M6
BHP2B0-D-25	25	200	215	230	3000	400	127.6	61.8	40	22	M8	30	13	M6
BHP2B0-D-28	28	180	190	200	2500	400	132.6	64.3	40	22	M8	30	13	M6
BHP2B0-D-30	30	160	170	180	2500	400	135.9	66.0	40	22	M8	30	13	M6

.

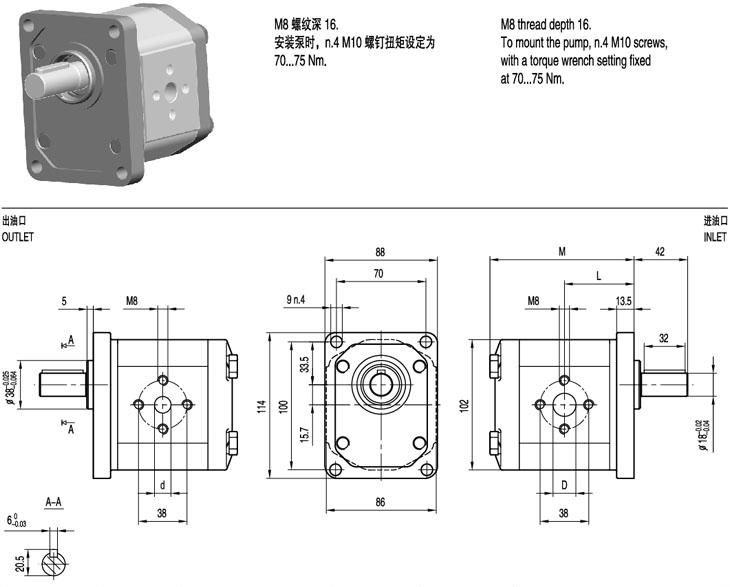

BHP2B1 Gear Pump

Type	Displacement	Max pressure			Max. speed	Min. speed	Dimensions
	Displacement	P1	P2	P3	Max. speed	Min. speed	M	L	D	d
	(ml/r)	bar	bar	bar	r/min	r/min	mm	mm	mm	mm
BHP2B1-D-3	3	270	285	300	4000	800	91.1	43.6	14	10
BHP2B1-D-4	4	270	285	300	4000	600	92.7	44.4	14	10
BHP2B1-D-6	6	270	285	300	4000	600	96.0	46.0	14	10
BHP2B1-D-8	8	270	285	300	3500	500	99.3	47.7	14	10
BHP2B1-D-10	10	270	285	300	3000	500	102.6	49.3	18	15
BHP2B1-D-12	12	270	285	300	3000	500	105.9	51.0	18	15
BHP2B1-D-14	14	250	265	280	4000	500	109.3	52.7	18	15
BHP2B1-D-16	16	250	265	280	4000	500	112.7	54.4	18	15
BHP2B1-D-18	18	250	265	280	3600	400	116.0	56.0	18	15
BHP2B1-D-20	20	220	235	250	3200	400	119.3	57.7	18	15
BHP2B1-D-22	22	220	235	250	3000	400	122.6	59.3	18	15
BHP2B1-D-25	25	200	215	230	3000	400	127.6	61.8	20	15
BHP2B1-D-28	28	180	190	200	2500	400	132.6	64.3	20	15
BHP2B1-D-30	30	160	170	180	2500	400	135.9	66.0	20	15

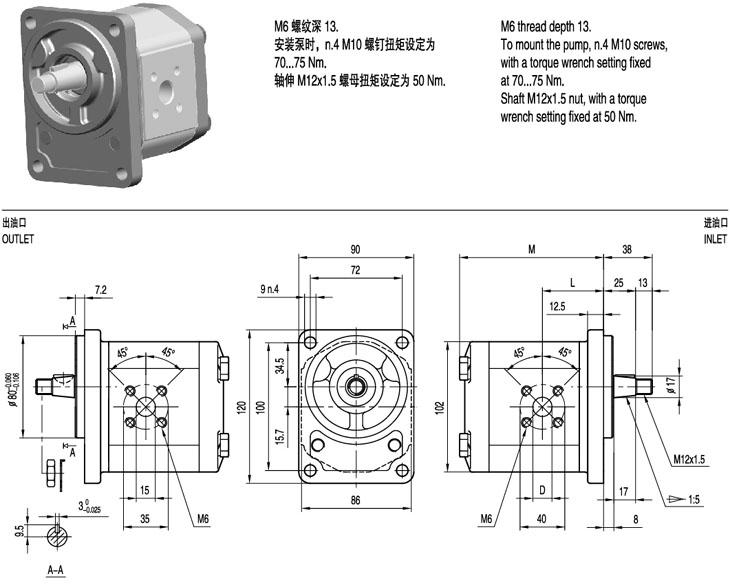

BHP2B2 Gear Pump

Type	Displacement	Max pressure			Max. speed	Min. speed	Dimensions
	Displacement	P1	P2	P3	Max. speed	Min. speed	M	L	D
	(ml/r)	bar	bar	bar	r/min	r/min	mm	mm	mm
BHP2B2-D-3	3	270	285	300	4000	800	91.1	39.9	15
BHP2B2-D-4	4	270	285	300	4000	600	92.7	39.9	15
BHP2B2-D-6	6	270	285	300	4000	600	96.0	41.1	15
BHP2B2-D-8	8	270	285	300	3500	500	99.3	43.2	15
BHP2B2-D-10	10	270	285	300	3000	500	102.6	43.7	20
BHP2B2-D-12	12	270	285	300	3000	500	105.9	47.5	20
BHP2B2-D-14	14	250	265	280	4000	500	109.3	47.5	20
BHP2B2-D-16	16	250	265	280	4000	500	112.7	47.5	20
BHP2B2-D-18	18	250	265	280	3600	400	116.0	47.5	20
BHP2B2-D-20	20	220	235	250	3200	400	119.3	47.5	20
BHP2B2-D-22	22	220	235	250	3000	400	122.6	55.1	20
BHP2B2-D-25	25	200	215	230	3000	400	127.6	61.8	20
BHP2B2-D-28	28	180	190	200	2500	400	132.6	64.3	20
BHP2B2-D-30	30	160	170	180	2500	400	135.9	66.0	20

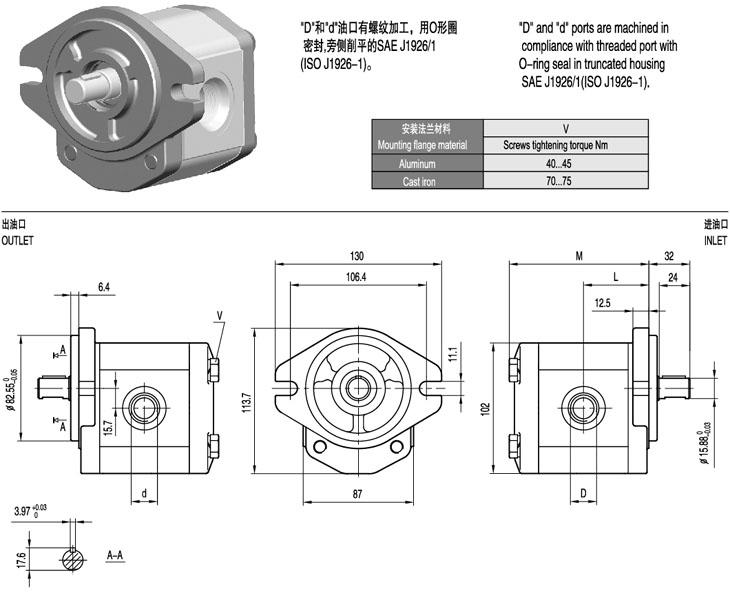

BHP2A0 Gear Pump

Type	Displacement	Max pressure			Max. speed	Min. speed	Dimensions
	Displacement	P1	P2	P3	Max. speed	Min. speed	M	L	D	d
	(ml/r)	bar	bar	bar	r/min	r/min	mm	mm
BHP2A0-D-3	3	270	285	300	4000	800	91.1	43.6	1 1/16-12UNF	7/8-14UNF
BHP2A0-D-4	4	270	285	300	4000	600	92.7	44.4	1 1/16-12UNF	7/8-14UNF
BHP2A0-D-6	6	270	285	300	4000	600	96.0	46.0	1 1/16-12UNF	7/8-14UNF
BHP2A0-D-8	8	270	285	300	3500	500	99.3	47.7	1 1/16-12UNF	7/8-14UNF
BHP2A0-D-10	10	270	285	300	3000	500	102.6	49.3	1 1/16-12UNF	7/8-14UNF
BHP2A0-D-12	12	270	285	300	3000	500	105.9	51.0	1 1/16-12UNF	7/8-14UNF
BHP2A0-D-14	14	250	265	280	4000	500	109.3	52.7	1 1/16-12UNF	7/8-14UNF
BHP2A0-D-16	16	250	265	280	4000	500	112.7	54.4	1 1/16-12UNF	7/8-14UNF
BHP2A0-D-18	18	250	265	280	3600	400	116.0	56.0	1 1/16-12UNF	7/8-14UNF
BHP2A0-D-20	20	220	235	250	3200	400	119.3	57.7	1 1/16-12UNF	7/8-14UNF
BHP2A0-D-22	22	220	235	250	3000	400	122.6	59.3	1 1/16-12UNF	7/8-14UNF
BHP2A0-D-25	25	200	215	230	3000	400	127.6	61.8	1 1/16-12UNF	7/8-14UNF
BHP2A0-D-28	28	180	190	200	2500	400	132.6	64.3	1 1/16-12UNF	7/8-14UNF
BHP2A0-D-30	30	160	170	180	2500	400	135.9	66.0	1 5/16-12UNF	7/8-14UNF

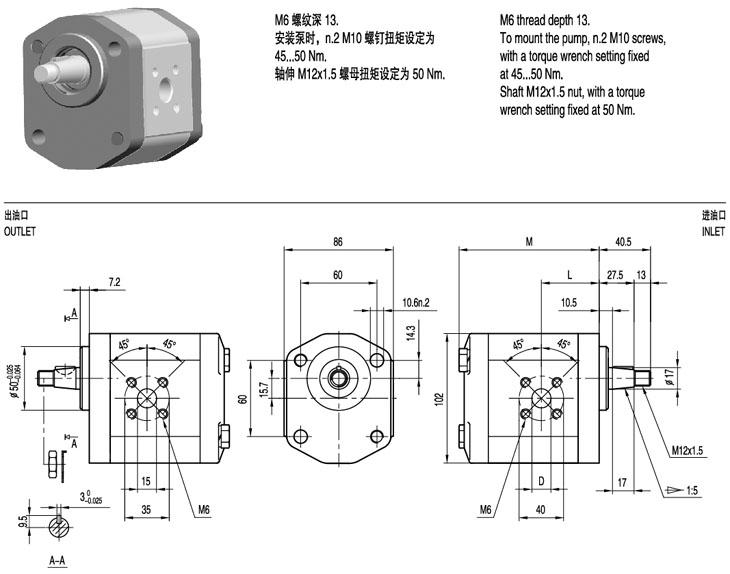

BHP2Q0 Gear Pump

Type	Displacement	Max pressure			Max. speed	Min. speed	Dimensions
	Displacement	P1	P2	P3	Max. speed	Min. speed	M	L	D
	(ml/r)	bar	bar	bar	r/min	r/min	mm	mm	mm
BHP2Q0-D-3	3	270	285	300	4000	800	88.6	37.4	15
BHP2Q0-D-4	4	270	285	300	4000	600	90.2	37.4	15
BHP2Q0-D-6	6	270	285	300	4000	600	93.5	38.6	15
BHP2Q0-D-8	8	270	285	300	3500	500	96.8	40.7	15
BHP2Q0-D-10	10	270	285	300	3000	500	100.1	41.2	20
BHP2Q0-D-12	12	270	285	300	3000	500	103.4	45.0	20
BHP2Q0-D-14	14	250	265	280	4000	500	106.8	45.0	20
BHP2Q0-D-16	16	250	265	280	4000	500	110.2	45.0	20
BHP2Q0-D-18	18	250	265	280	3600	400	113.5	45.0	20
BHP2Q0-D-20	20	220	235	250	3200	400	116.8	45.0	20
BHP2Q0-D-22	22	220	235	250	3000	400	120.1	52.6	20
BHP2Q0-D-25	25	200	215	230	3000	400	125.1	59.3	20
BHP2Q0-D-28	28	180	190	200	2500	400	130.1	61.8	20
BHP2Q0-D-30	30	160	170	180	2500	400	133.4	63.5	20

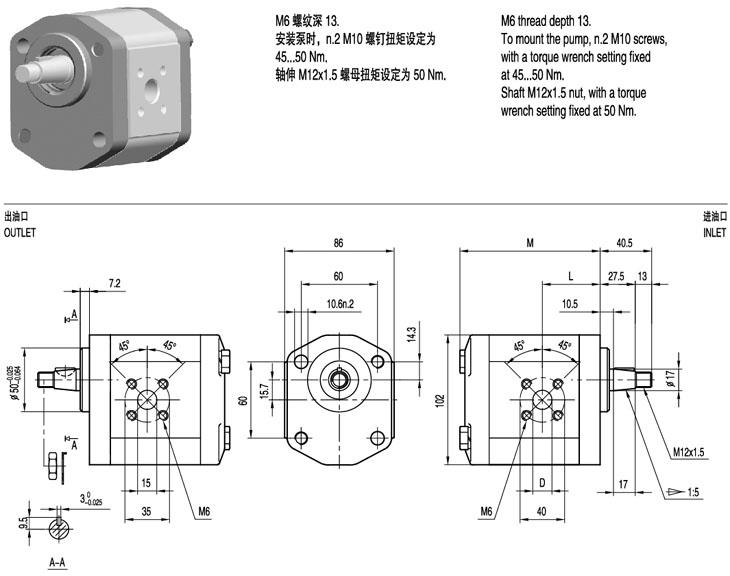

BHP2Q1 Gear Pump

Type	Displacement	Max pressure			Max. speed	Min. speed	Dimensions
	Displacement	P1	P2	P3	Max. speed	Min. speed	M	L	D
	(ml/r)	bar	bar	bar	r/min	r/min	mm	mm	mm
BHP2Q1-D-3	3	270	285	300	4000	800	88.6	37.4	15
BHP2Q1-D-4	4	270	285	300	4000	600	90.2	37.4	15
BHP2Q1-D-6	6	270	285	300	4000	600	93.5	38.6	15
BHP2Q1-D-8	8	270	285	300	3500	500	96.8	40.7	15
BHP2Q1-D-10	10	270	285	300	3000	500	100.1	41.2	20
BHP2Q1-D-12	12	270	285	300	3000	500	103.4	45.0	20
BHP2Q1-D-14	14	250	265	280	4000	500	106.8	45.0	20
BHP2Q1-D-16	16	250	265	280	4000	500	110.2	45.0	20
BHP2Q1-D-18	18	250	265	280	3600	400	113.5	45.0	20
BHP2Q1-D-20	20	220	235	250	3200	400	116.8	45.0	20
BHP2Q1-D-22	22	220	235	250	3000	400	120.1	52.6	20
BHP2Q1-D-25	25	200	215	230	3000	400	125.1	59.3	20
BHP2Q1-D-28	28	180	190	200	2500	400	130.1	61.8	20
BHP2Q1-D-30	30	160	170	180	2500	400	133.4	63.5	20

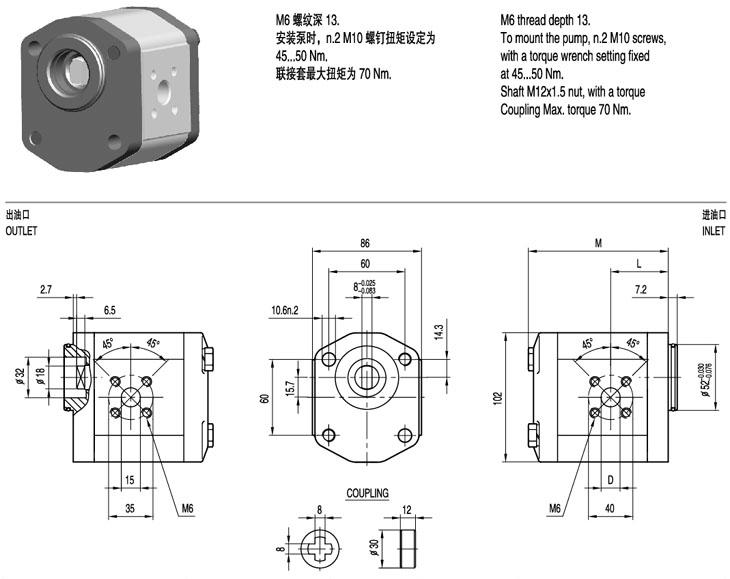

BHP2Q2 Gear Pump

Type	Displacement	Max pressure			Max. speed	Min. speed	Dimensions
	Displacement	P1	P2	P3	Max. speed	Min. speed	M	L	D
	(ml/r)	bar	bar	bar	r/min	r/min	mm	mm	mm
BHP2Q2-D-3	3	270	285	300	4000	800	88.6	37.4	15
BHP2Q2-D-4	4	270	285	300	4000	600	90.2	37.4	15
BHP2Q2-D-6	6	270	285	300	4000	600	93.5	38.6	15
BHP2Q2-D-8	8	270	285	300	3500	500	96.8	40.7	15
BHP2Q2-D-10	10	270	285	300	3000	500	100.1	41.2	20
BHP2Q2-D-12	12	270	285	300	3000	500	103.4	45.0	20
BHP2Q2-D-14	14	250	265	280	4000	500	106.8	45.0	20
BHP2Q2-D-16	16	250	265	280	4000	500	110.2	45.0	20
BHP2Q2-D-18	18	250	265	280	3600	400	113.5	45.0	20
BHP2Q2-D-20	20	220	235	250	3200	400	116.8	45.0	20
BHP2Q2-D-22	22	220	235	250	3000	400	120.1	52.6	20
BHP2Q2-D-25	25	200	215	230	3000	400	125.1	59.3	20
BHP2Q2-D-28	28	180	190	200	2500	400	130.1	61.8	20
BHP2Q2-D-30	30	160	170	180	2500	400	133.4	63.5	20

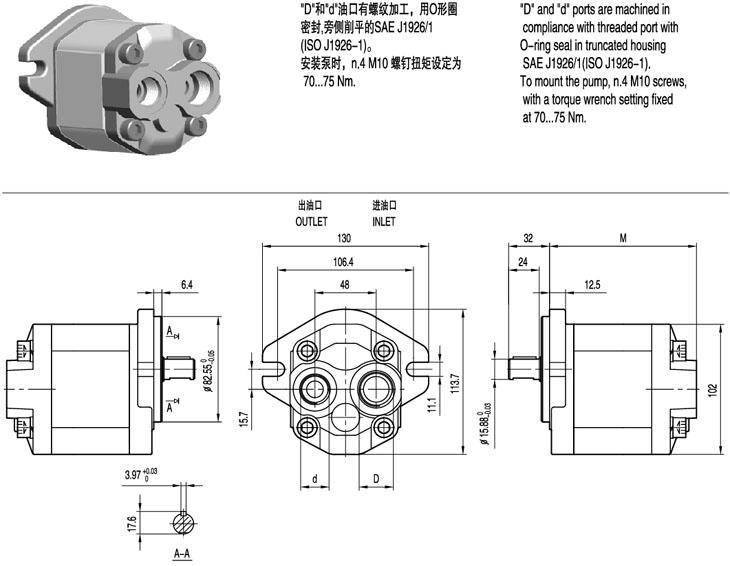

BHP2A0-R Gear Pump

Type	Displacement	Max pressure			Max. speed	Min. speed	Dimensions
	Displacement	P1	P2	P3	Max. speed	Min. speed	M	D	d
	(ml/r)	bar	bar	bar	r/min	r/min	mm
BHP2A0-D-3-R	3	270	285	300	4000	800	103.1	1 1/16-12UNF	7/8-14UNF
BHP2A0-D-4-R	4	270	285	300	4000	600	104.7	1 1/16-12UNF	7/8-14UNF
BHP2A0-D-6-R	6	270	285	300	4000	600	108.0	1 1/16-12UNF	7/8-14UNF
BHP2A0-D-8-R	8	270	285	300	3500	500	111.3	1 1/16-12UNF	7/8-14UNF
BHP2A0-D-10-R	10	270	285	300	3000	500	114.6	1 1/16-12UNF	7/8-14UNF
BHP2A0-D-12-R	12	270	285	300	3000	500	117.9	1 1/16-12UNF	7/8-14UNF
BHP2A0-D-14-R	14	250	265	280	4000	500	121.3	1 1/16-12UNF	7/8-14UNF
BHP2A0-D-16-R	16	250	265	280	4000	500	124.7	1 1/16-12UNF	7/8-14UNF
BHP2A0-D-18-R	18	250	265	280	3600	400	128.0	1 1/16-12UNF	7/8-14UNF
BHP2A0-D-20-R	20	220	235	250	3200	400	131.3	1 1/16-12UNF	7/8-14UNF
BHP2A0-D-22-R	22	220	235	250	3000	400	134.6	1 1/16-12UNF	7/8-14UNF
BHP2A0-D-25-R	25	200	215	230	3000	400	139.6	1 1/16-12UNF	7/8-14UNF
BHP2A0-D-28-R	28	180	190	200	2500	400	144.6	1 1/16-12UNF	7/8-14UNF
BHP2A0-D-30-R	30	160	170	180	2500	400	147.9	1 1/16-12UNF	7/8-14UNF

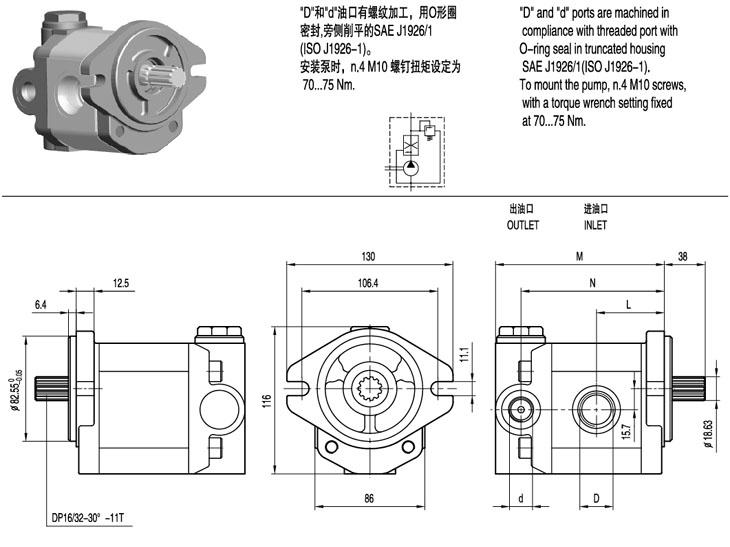

BHP2A0-Fx Gear Pump

Type	Displace ment	Control pressure		Control flow	Max. speed	Min. speed	Dimensions
	Displace ment	P1		Qconst	Max. speed	Min. speed	M	L	N	D	d
	(ml/r)	bar		L/min	r/min	r/min	mm	mm	mm	mm
BHP2A0-D-3-Fx	3	100…180		2…30	4000	800	112.1	43.6	92.1	1 1/16-12UNF	7/8-14UNF
BHP2A0-D-4-Fx	4				4000	600	113.7	44.4	93.7	1 1/16-12UNF	7/8-14UNF
BHP2A0-D-6-Fx	6				4000	600	117.0	46.0	97.0	1 1/16-12UNF	7/8-14UNF
BHP2A0-D-8-Fx	8				3500	500	120.3	47.7	100.3	1 1/16-12UNF	7/8-14UNF
BHP2A0-D-10-Fx	10				3000	500	123.6	49.3	103.6	1 1/16-12UNF	7/8-14UNF
BHP2A0-D-12-Fx	12				3000	500	126.9	51.0	106.9	1 1/16-12UNF	7/8-14UNF
BHP2A0-D-14-Fx	14				4000	500	130.3	52.7	110.3	1 1/16-12UNF	7/8-14UNF
BHP2A0-D-16-Fx	16				4000	500	133.7	54.4	113.7	1 1/16-12UNF	7/8-14UNF
BHP2A0-D-18-Fx	18				3600	400	137.0	56.0	117.0	1 1/16-12UNF	7/8-14UNF
BHP2A0-D-20-Fx	20				3200	400	140.3	57.7	120.3	1 1/16-12UNF	7/8-14UNF
BHP2A0-D-22-Fx	22				3000	400	143.6	59.3	123.6	1 1/16-12UNF	7/8-14UNF
BHP2A0-D-25-Fx	25				3000	400	148.6	61.8	128.6	1 1/16-12UNF	7/8-14UNF
BHP2A0-D-28-Fx	28				2500	400	153.6	64.3	133.6	1 1/16-12UNF	7/8-14UNF
BHP2A0-D-30-Fx	30				2500	400	156.9	66.0	136.9	1 1/16-12UNF	7/8-14UNF

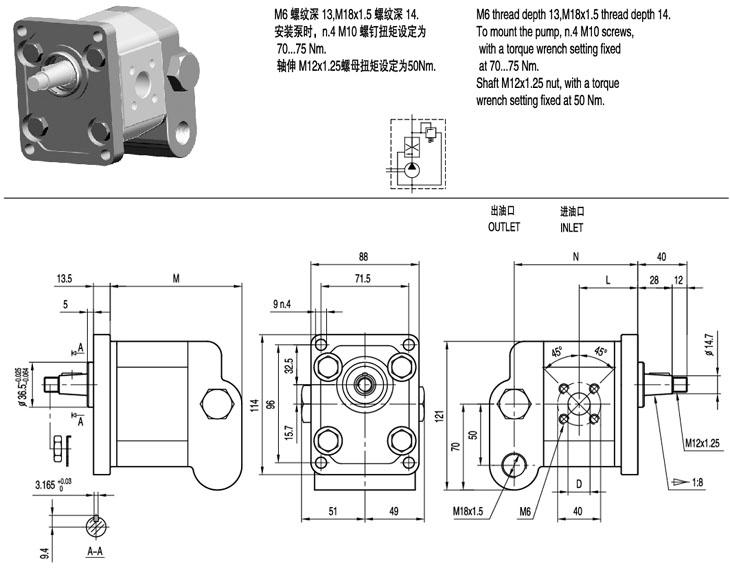

BHP2B0-FAx Gear Pump

Type	Displacement	Control pressure		Control flow	Max. speed	Min. speed	Dimensions
	Displacement	P1		Qconst	Max. speed	Min. speed	M	L	N	D
	(ml/r)	bar		L/min	r/min	r/min	mm	mm	mm	mm
BHP2B0-D-3-FAx	3	100…180		2…30	4000	800	112.1	43.6	96.1	15
BHP2B0-D-4-FAx	4				4000	600	113.7	44.4	97.7	15
BHP2B0-D-6-FAx	6				4000	600	117.0	46.0	101.0	15
BHP2B0-D-8-FAx	8				3500	500	120.3	47.7	104.3	15
BHP2B0-D-10-FAx	10				3000	500	123.6	49.3	107.6	20
BHP2B0-D-12-FAx	12				3000	500	126.9	51.0	110.9	20
BHP2B0-D-14-FAx	14				4000	500	130.3	52.7	114.3	20
BHP2B0-D-16-FAx	16				4000	500	133.7	54.4	117.7	20
BHP2B0-D-18-FAx	18				3600	400	137.0	56.0	121.0	20
BHP2B0-D-20-FAx	20				3200	400	140.3	57.7	124.3	20
BHP2B0-D-22-FAx	22				3000	400	143.6	59.3	127.6	20
BHP2B0-D-25-FAx	25				3000	400	148.6	61.8	132.6	20
BHP2B0-D-28-FAx	28				2500	400	153.6	64.3	137.6	20
BHP2B0-D-30-FAx	30				2500	400	156.9	66.0	140.9	20

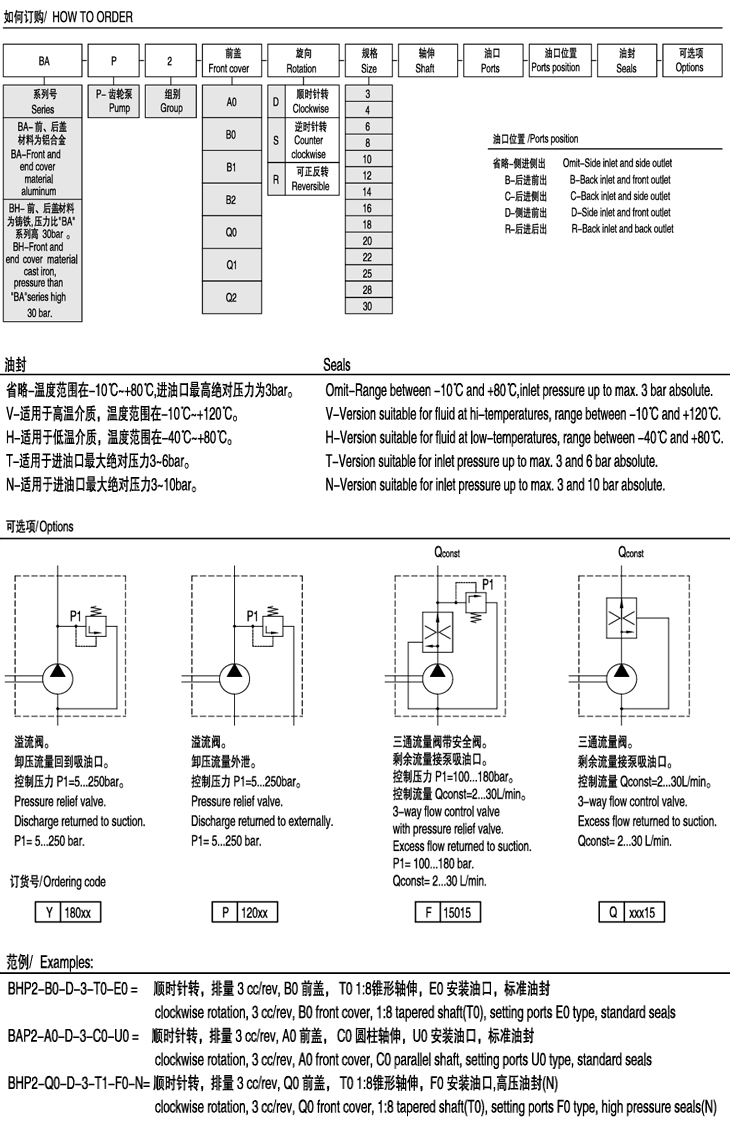

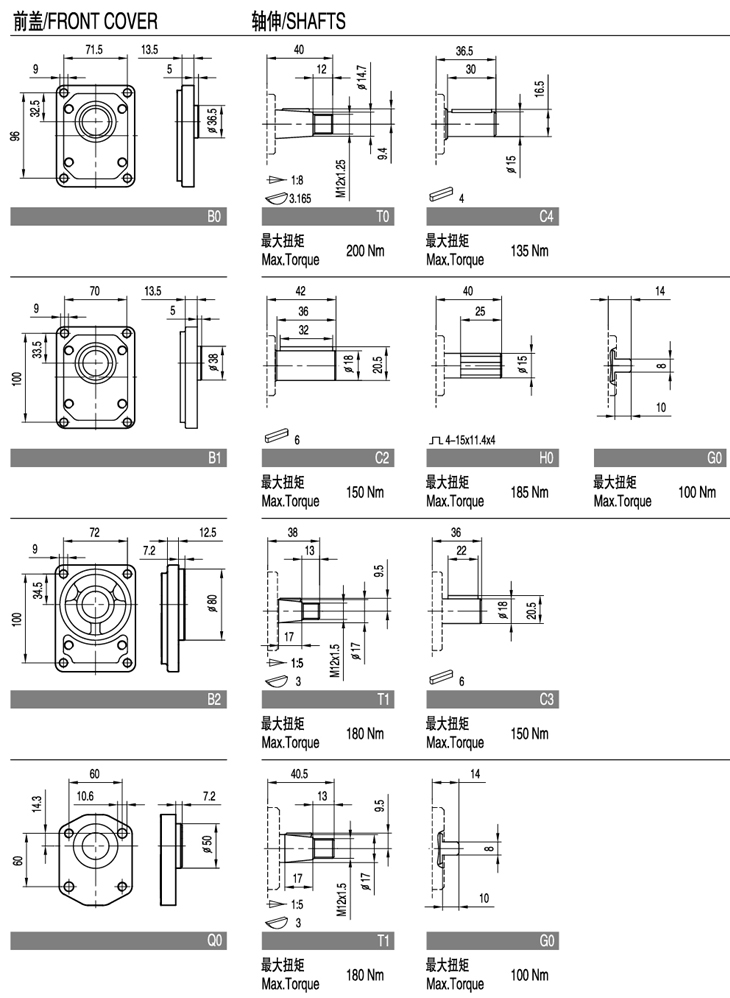

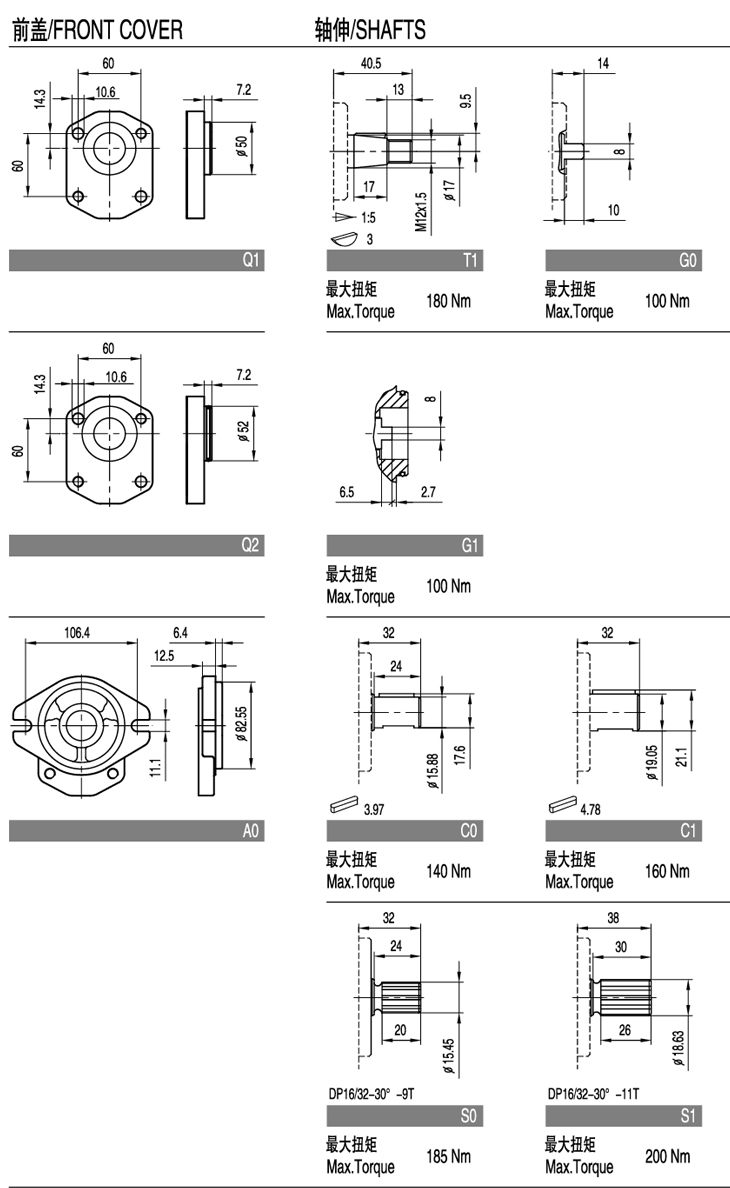

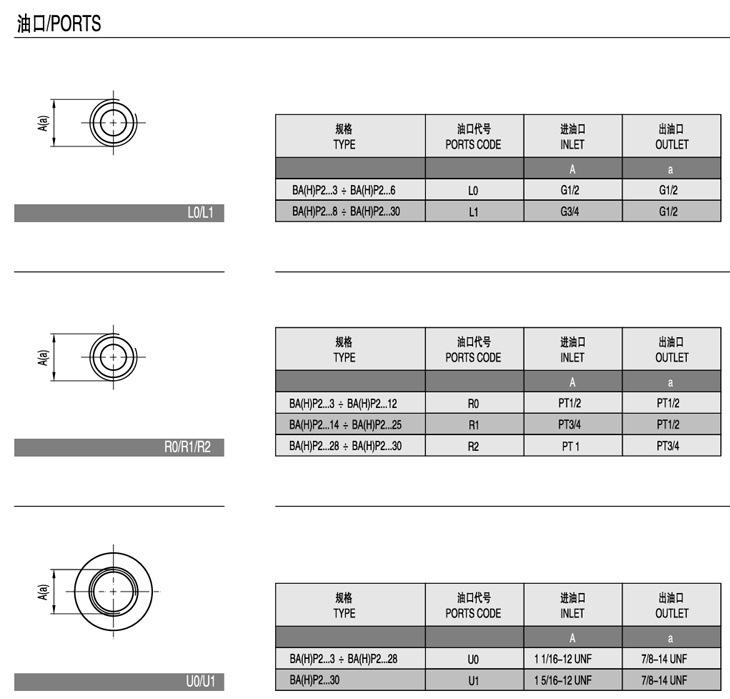

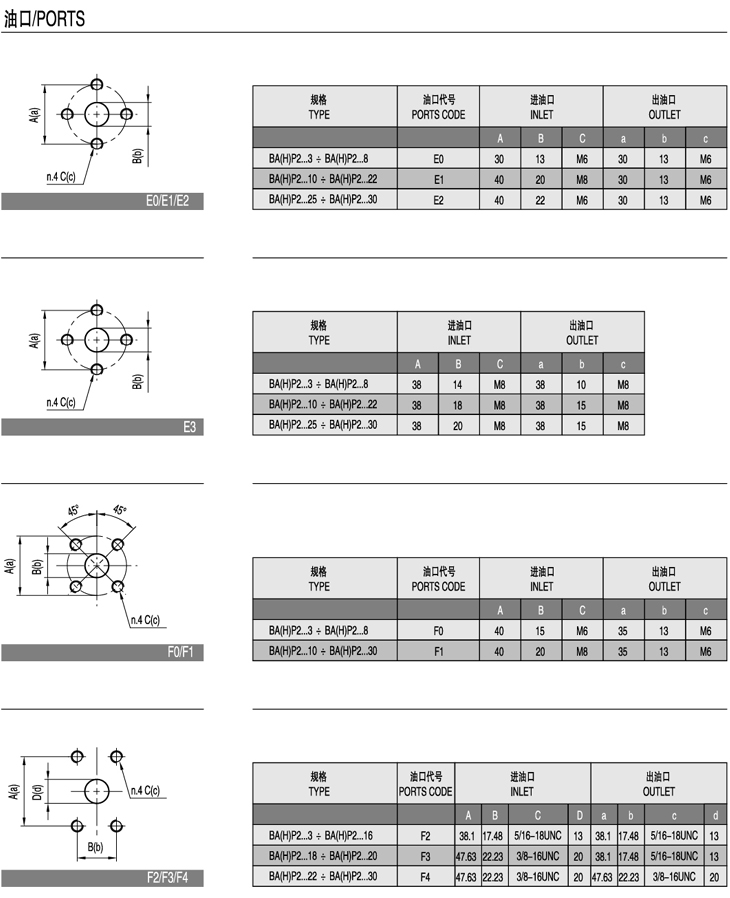

BAP2(BHP2) Selection Code


BHP2B0 Gear Pump	BHP2B1 Gear Pump	BHP2B2 Gear Pump

BHP2A0 Gear Pump	BHP2Q0 Gear Pump	BHP2Q1 Gear Pump

BHP2Q2 Gear Pump	BHP2A0-R Gear Pump	BHP2A0-Fx Gear Pump

BHP2B0-FAx Gear Pump
