BAP1

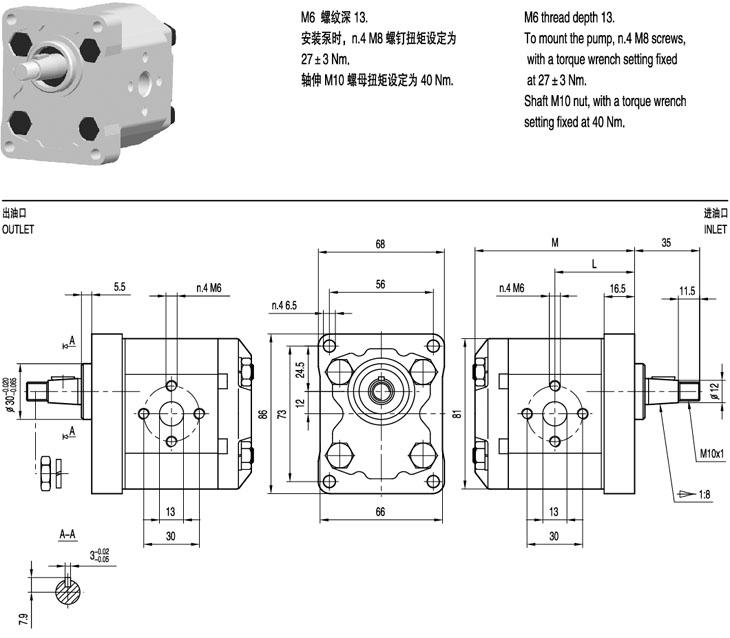

BAP1B0 Gear Pump

Type	Displacement	Max pressure			Max. speed	Min. speed	Dimensions
		P1	P2	P3			M	L
	(ml/r)	bar	bar	bar	r/min	r/min	mm	mm
BAP1B0-D-1.4	1.4	250	270	290	6000	800	80.5	40
BAP1B0-D-2.1	2.1	250	270	290	6000	800	82.5	41
BAP1B0-D-2.8	2.8	250	270	290	5000	800	84.5	42
BAP1B0-D-3.5	3.5	250	270	290	5000	800	86.5	43
BAP1B0-D-4.1	4.1	250	270	290	4000	800	88.5	44
BAP1B0-D-5.2	5.2	230	245	260	4000	800	91.5	45.5
BAP1B0-D-6.2	6.2	230	245	260	3800	800	94.5	47
BAP1B0-D-7.6	7.6	200	215	230	3200	600	98.5	49
BAP1B0-D-9.3	9.3	180	195	210	2600	600	103.5	51.5
BAP1B0-D-11.0	11.0	170	185	200	2200	600	108.5	54
BAP1B0-D-13.8	13.8	150	165	180	1800	600	116.5	58

.

---

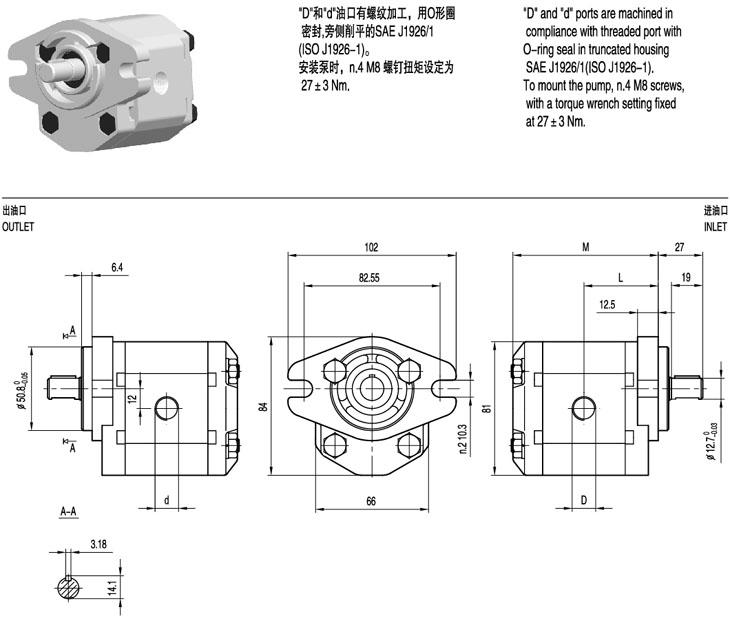

BAP1A0 Gear Pump

Type	Displacement	Max pressure			Max. speed	Min. speed	Dimensions
		P1	P2	P3			M	L	D	d
	(ml/r)	bar	bar	bar	r/min	r/min	mm	mm
BAP1A0-D-1.4	1.4	250	270	290	6000	800	82.5	42	PT1/2	PT3/8
BAP1A0-D-2.1	2.1	250	270	290	6000	800	84.5	43	PT1/2	PT3/8
BAP1A0-D-2.8	2.8	250	270	290	5000	800	86.5	44	PT1/2	PT3/8
BAP1A0-D-3.5	3.5	250	270	290	5000	800	88.5	45	PT1/2	PT3/8
BAP1A0-D-4.1	4.1	250	270	290	4000	800	90.5	46	PT1/2	PT3/8
BAP1A0-D-5.2	5.2	230	245	260	4000	800	93.5	47.5	PT1/2	PT3/8
BAP1A0-D-6.2	6.2	230	245	260	3500	800	96.5	49	PT1/2	PT3/8
BAP1A0-D-7.6	7.6	200	215	230	3000	600	100.5	51	PT3/4	PT1/2
BAP1A0-D-9.3	9.3	180	195	210	2500	600	105.5	53.5	PT3/4	PT1/2
BAP1A0-D-11.0	11.0	170	185	200	2500	600	110.5	56	PT3/4	PT1/2
BAP1A0-D-13.8	13.8	150	165	180	2000	600	118.5	60	PT3/4	PT1/2

---

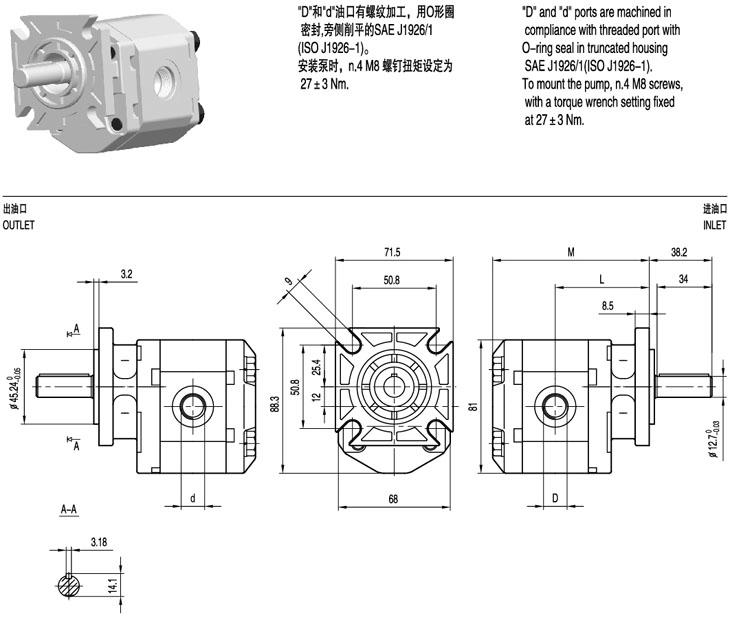

BAP1Q0 Gear Pump

Type	Displacement	Max pressure			Max. speed	Min. speed	Dimensions
		P1	P2	P3			M	L	D	d
	(ml/r)	bar	bar	bar	r/min	r/min	mm	mm
BAP1Q0-D-1.4	1.4	250	270	290	6000	800	98	59	3/4-16UNF	9/16-18UNF
BAP1Q0-D-2.1	2.1	250	270	290	6000	800	100	60	3/4-16UNF	9/16-18UNF
BAP1Q0-D-2.8	2.8	250	270	290	5000	800	102	61	3/4-16UNF	9/16-18UNF
BAP1Q0-D-3.5	3.5	250	270	290	5000	800	104	62	3/4-16UNF	9/16-18UNF
BAP1Q0-D-4.1	4.1	250	270	290	4000	800	106	63	3/4-16UNF	9/16-18UNF
BAP1Q0-D-5.2	5.2	230	245	260	4000	800	109	64.5	3/4-16UNF	9/16-18UNF
BAP1Q0-D-6.2	6.2	230	245	260	3500	800	112	66	3/4-16UNF	9/16-18UNF
BAP1Q0-D-7.6	7.6	200	215	230	3000	600	116	68	7/8-14UNF	3/4-16UNF
BAP1Q0-D-9.3	9.3	180	195	210	2500	600	121	70.5	7/8-14UNF	3/4-16UNF
BAP1Q0-D-11.0	11.0	170	185	200	2500	600	126	73	7/8-14UNF	3/4-16UNF
BAP1Q0-D-13.8	13.8	150	165	180	2000	600	134	77	7/8-14UNF	3/4-16UNF

---

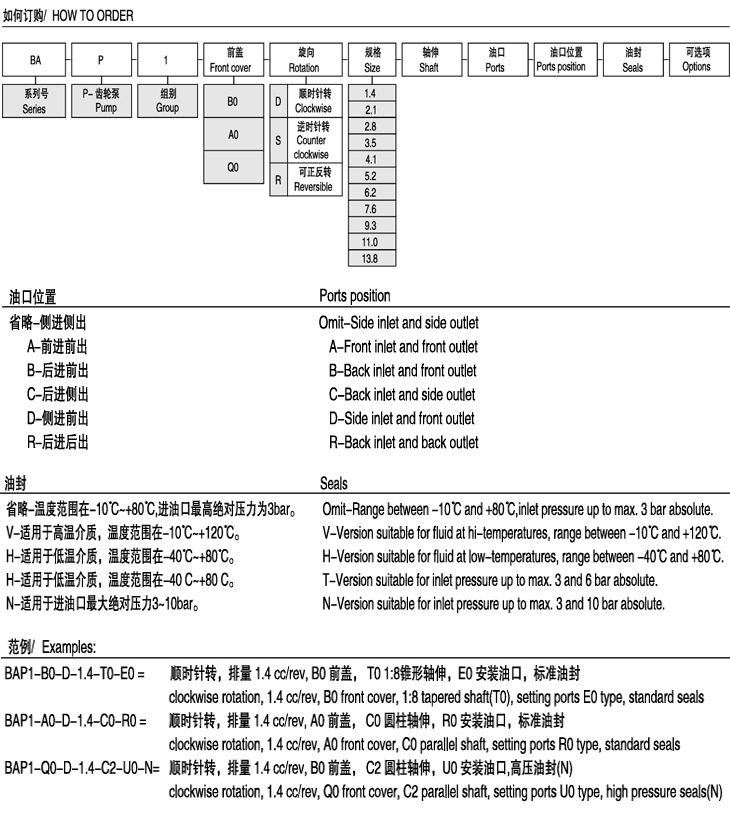

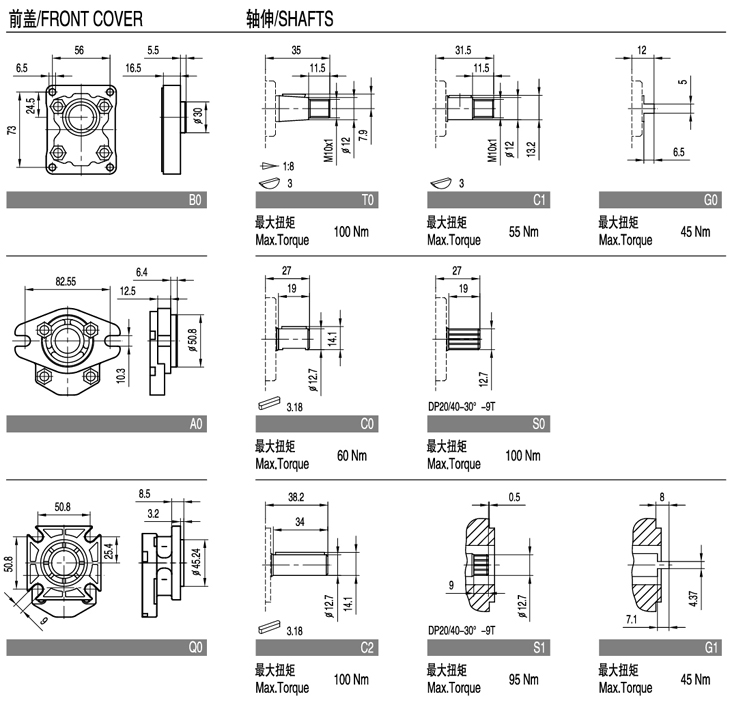

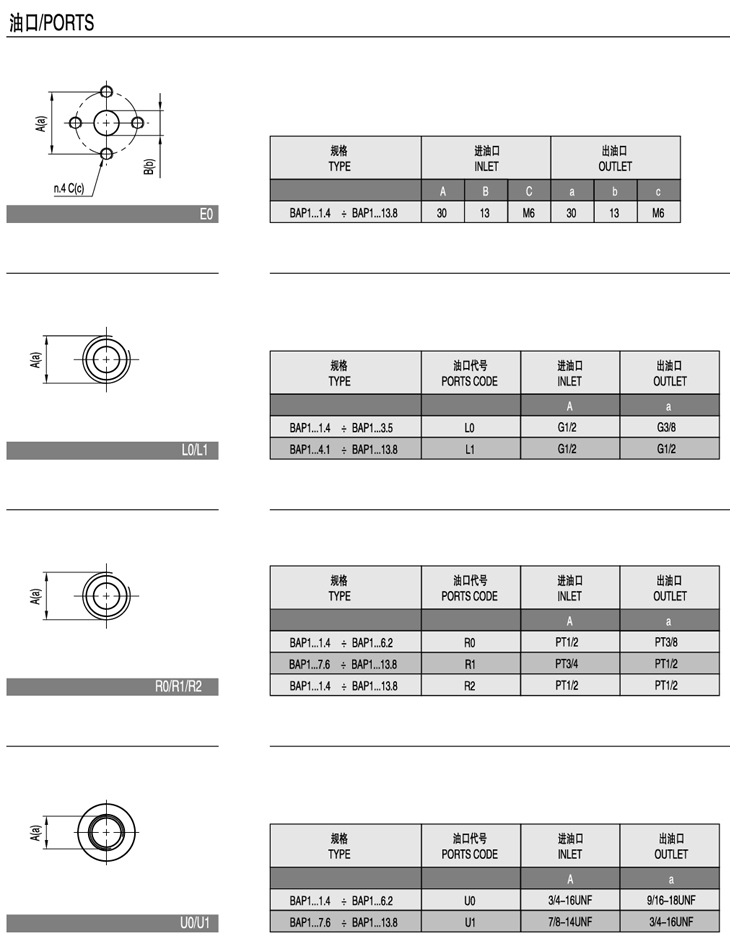

BAP1 Selection Code

BAP1B0 Gear Pump	BAP1A0 Gear Pump	BAP1Q0 Gear Pump
