Pneumatic Cylinders
T/X Series Cylinder
T Series pneumatic cylinder (old model SC cylinder) has two types Tie-rod type pneumatic cylinder and X type pneumatic cylinder, normal bore size from 32mm to 200mm, bigger size from 250mm to 600mm can also be provided.
We have started to manufacture T series pneumatic cylinder since the very beginning of our foundation. Very experienced and every year improving technique and process guarantee excellent quality for the T series pneumatic cylinder.
We manufacture most part of the cylinder by ourselves, from die-casting, machine to assembling for better quality control. The cylinder end covers and piston are CNC machined, and important seals are from Parker, to guarantee the pneumatic cylinder work stably and safely.
TBC/XBC

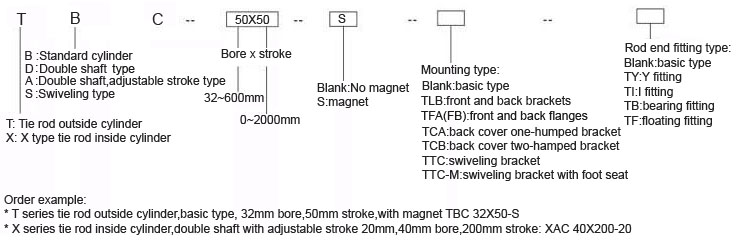

How to Order?
Features:
*T series cylinders are provided with adjustable cuhion on both cylinder end covers to make sure the cylinder works very smoothly, safely and with low noise.
*With self lubricating bearing, the piston rod is lubrication free.
*Magnet and sufficient Fixing styles are available.
Specifications:
Photo:
 |  |
| TBC 50X75 | TDC 50X50 |
 |  |
| TAC 63X100 | XBC 50X50 |
V Series Cylinder
V Series pneumatic cylinders are manufactured according to ISO6431 standard and VDMA24562 standard. We have two types Tie-rod type and Mickey Mouse type, normal bore size from 32mm to 200mm.
We manufacture most part of the cylinder by ourselves, from die-casting, machine to assembling for better quality control. The cylinder end covers and piston are CNC machined, and important seals are from Japan, to guarantee the pneumatic cylinder work stably and safely.
VBC,LBC

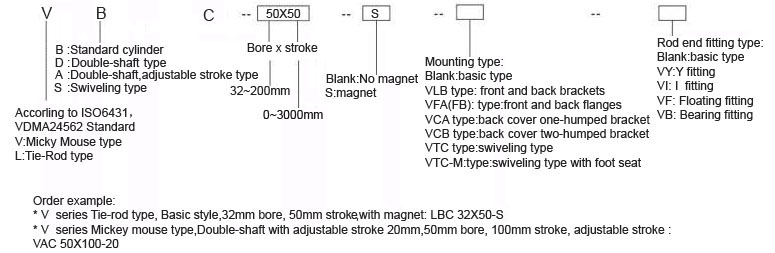

How to Order?
Features:
*Adjustable cushion on both cylinder end covers to make sure the cylinder works very smoothly, safely and with low noise.
*With self-lubricating bearing, the piston rod is lubrication free.
*Magnet and sufficient Fixing styles are available.
Specifications:

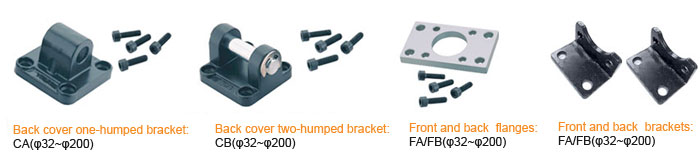

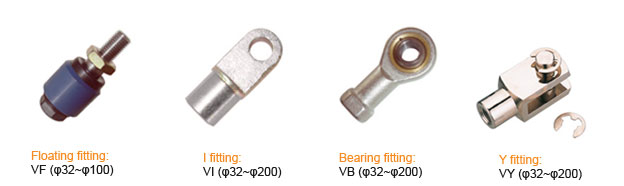

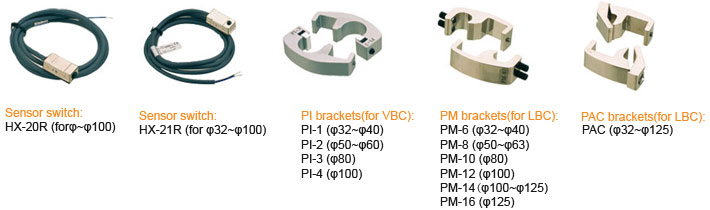

Accessories:
FV/FX series Cylinder
FV/FX Series pneumatic cylinders are manufactured according to ISO6431 standard, VDMA24562 standard and DIN24335 standard. We have two types Square type and Mickey Mouse type, normal bore size from 32mm to 100mm. We manufacture most part of the cylinder by ourselves, from die-casting, maching to assembling for better quality control. The cylinder end covers and piston are CNC machined, and important seals are from Parker, to guarantee the pneumatic cylinder work stably and safely.
FVBC,FXBC

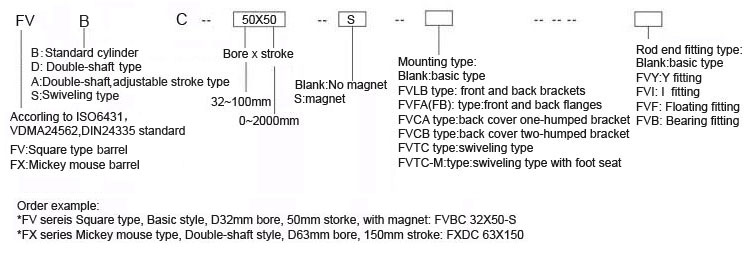

How to Order?
Features:
*FV series are with similar Festo DNC appearance, with slot on the cylinder barrel and end covers for magnet sensor mounting more conveniently.
*FX series are with Festo style end cover and mickey mouse barrel to be cost effective.
*Adjustable cushion on both cylinder end covers to make sure the cylinder works very smoothly,safely and with low noise.
*With self-lubricating bearing, the piston rod is lubrication free.
*Magnet and sufficient Fixing styles are available
Specifications:
R series mini Cylinder
We have two types for R series mini pneumatic cylinders, Aluminium (barrel) type and stainless steel (barrel) type, normal bore size from 16 mm to 40mm. We manufacture most part of the cylinder by ourselves, from die-casting, maching to assembling for better quality control. This kind of mini pneumatic cylinder is completely finished by our CNC machine from Japan,except the assembling. We can change this style of mini cylinder to different apperance pneumatic cylinder as customers want.
RAL/RAS

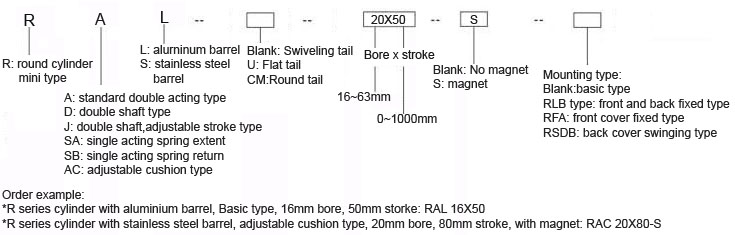

How to Order?
Features:
*The aluminium style cylinder cover and barrel are threaded together, and the stainless steel style cylinder cover and barrel are pressing together.
*R series mini cylinder can be easily changed to different appearance according to customers requirement.
*Three style for back end cover, swiveling tail, round tail and flat tail
*Adjustable cushion is optional for working more stable if necessary.
*With self-lubricating bearing, the piston rod is lubrication free.
*Magnet and sufficient Fixing styles are available.
Specifications:
ISO6432 mini Cylinder
I series mini pneumatic cylinders are manufactured according to ISO6432 standard and CETOP RP52P standard, with bore size from 12mm to 40mm. We manufacture most part of the cylinder by ourselves, from die-casting, maching to assembling for better quality control. This kind of mini pneumatic cylinder is completely finished by our CNC machine from Japan,except the assembling. We can change this style of mini cylinder to different appearance pneumatic cylinder as customers want.
IAS cylinder

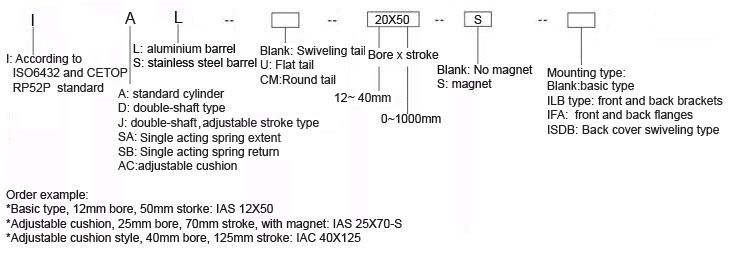

How to Order?
Features:
*Normal with aluminum cover and stainless steel barrel, aluminium barrel is optional.
*12mm~25mm are according to ISO6432 and CETOP RP52P standard, 32mm~40mm are E.MC standard.
*16mm~25mm are with adjustable cushion, other size cushion is optional.
*I series mini cylinder can be easily changed to different appearance according to customers requirement.
*With self-lubricating bearing, the piston rod is lubrication free.
*Magnet and sufficient Fixing styles are available.
Specifications:
SJ/SM Series Cylinder
SJ/SM series mini pneumatic cylinders are manufactured according to Asian standard, with bore size from 6mm to 40mm. We manufacture most part of the cylinder by ourselves, from die-casting, machine to assembling for better quality control. The cylinder end covers and piston are CNC machined, and important seals are from Japan, to guarantee the pneumatic cylinder work stably and safely.

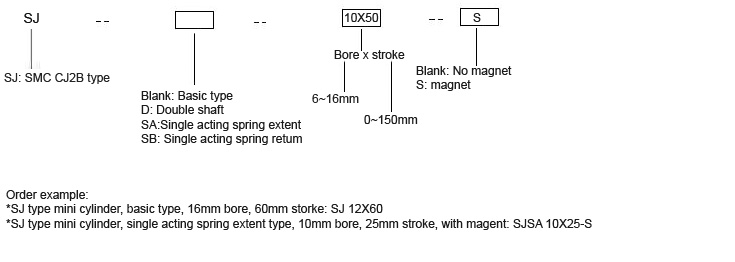

SJ cylinder
How to Order?
Features:
*Similar SMC appearance.
*SJ type from 6mm to 16mm, SM type from 20mm to 40mm.
*Aluminium cylinder end cover, stainless steel barrel.
*With self-lubricating bearing, the piston rod is lubrication free.
*Magnet is optional.
Specifications:
Compact Cylinder
SQ/SD series compact pneumatic cylinders are manufactured according to Asia standard, with bore size from 12mm to 100mm. We manufacture most part of the cylinder by ourselves, from die-casting, machine to assembling for better quality control. The cylinder end covers and piston are CNC machined, and important seals are from Japan, to guarantee the pneumatic cylinder work stably and safely.
SD cylinder

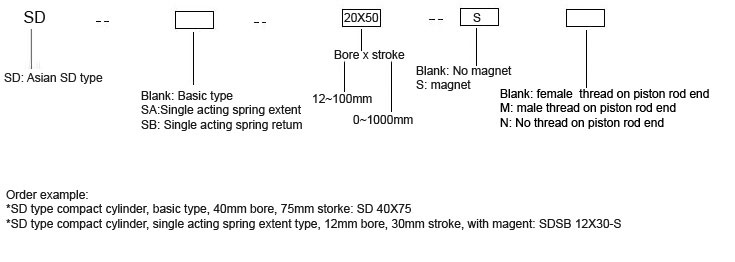

How to Order?
Features:
*Similar to SMC appearance.
*Compact body and light-weighted.
*Suitable slot on the cylinder barrel to make it easy for magnetic sensor to fit on.
*With self-lubricating bearing, the piston rod is lubrication free.
*Magnet is optional.
Specifications:
SQ cylinder

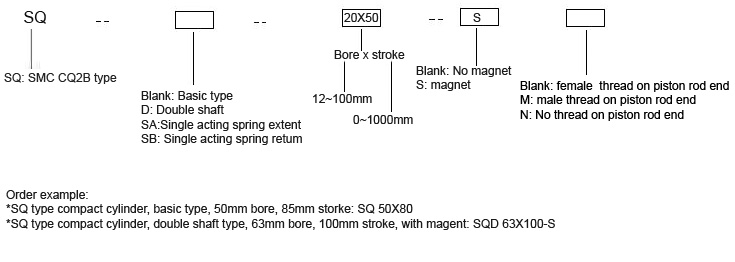

How to Order?
Features:
*Similar to SMC appearance.
*Compact body and light-weighted.
*Suitable slot on the cylinder barrel to make it easy for magnetic sensor to fit on.
*With self-lubricating bearing, the piston rod is lubrication free.
*Magnet is optional.
Specifications:
EU cylinder

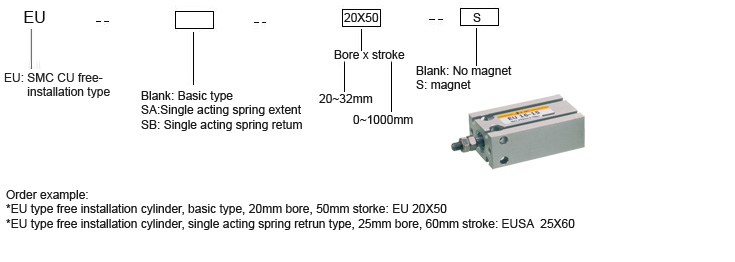

How to Order?
Features:
*Similar to SMC CU free installation cylinder appearance.
*Compact body and light-weighted.
*Suitable slot on the cylinder barrel to make it easy for magnetic sensor to fit on.
*With self-lubricating bearing, the piston rod is lubrication free.
*Magnet is optional.
Specifications:
Guided Cylinder
EN double rod cylinder, SG guided rod cylinder, EU free installation cylinder and SJP series needle pneumatic cylinder are with of good quality and very popular in our world wide market. We manufacture most part of the cylinder by ourselves, from die-casting, machine to assembling for better quality control. The cylinder end covers and piston are CNC machined, and important seals are from Japan, to guarantee the pneumatic cylinder work stably and safely.
EN Cylinder
How to Order?
Features:
*Similar SMC appearance.
*SJ type from 6mm to 16mm, SM type from 20mm to 40mm.
*Aluminium cylinder end cover, stainless steel barrel.
*With self-lubricating bearing, the piston rod is lubrication free.
*Magnet is optional.
Specifications:
SG Cylinder

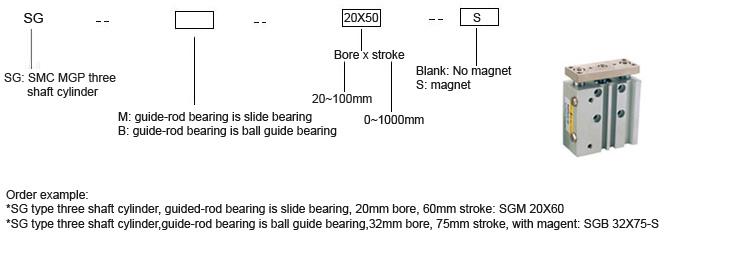

How to Order?
Features:
*Thee shaft provide good anti-bend performance and guarantee correct direction.
*Suitable slot is designed for manetic sensor and fixing.
*Embedding mounting and no need other brackets,room saving.
Specifications:

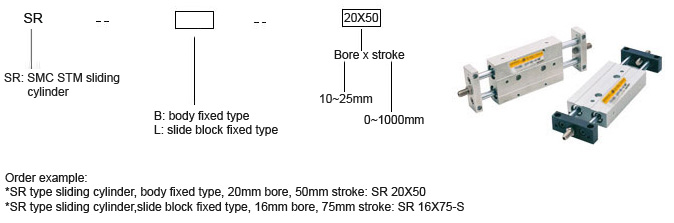

SR Cylinder
How to Order?
Features:
*Double shaft provide good anti-bend performance and guarantee long life cycle and correct direction.
*Suitable slot is designed for manetic sensor and fixing.
*Magnet is permanently mounted.
Specifications:
Rodless Cylinder
Rodless air cylinders differ from basic air cylinders in that no piston rod extends outside the cylinder body. Instead, the internal piston is connected to an external carriage, by means of a magnetic or mechanical coupling system. With no external leakage, the SW series can be used in many diverse environments. Magnetically coupled cylinders have a wide range of applications, and save mounting space. Loads and moments are possible through the use of integrated guides. A variety of guides can be used to achieve the necessary accuracy or allowable moment needed for your application. SW is available in 9 bore sizes, from 6mm to 63mm with standard stokes up to 1000mm. The 5 different model variations offer widest application choice. Auto switches are integrated as standard.
SW cylinder

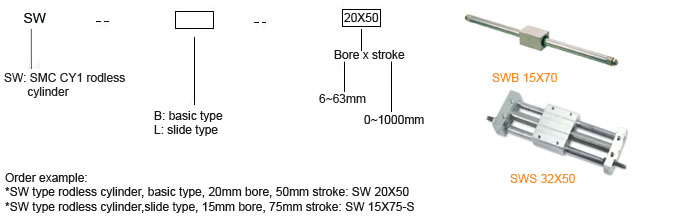

How to Order?
Features:
*Basic magnetically coupled rodless cylinder.
*Bore sizes: 6, 10, 15, 20, 25, 32, 40, 50, & 63 (mm).
*Strokes from 50mm through 1000mm.
*Available with high or low magnetic holding force.
*Long life with no external leakage.
Specifications:
Needle Cylinder
SJP series single acting needle cylinder's compact design minimizes mounting space. To accommodate many design styles, the CJP is available in two mounting styles: panel mounting and embedding mounting Available bore sizes include 6, 10, and 15mm with strokes ranging from 5 to 30mm. Other features include brass panel mounting nuts, stainless steel piston rod, and brass bodies.
SJP

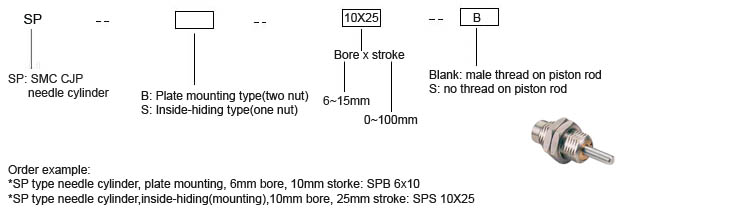

How to Order?
Features:
*Single acting, spring return, pin cylinder.
*Compact design-minimizes mounting space.
*Three bore sizes available.
*Strokes from 5mm to 15mm available.
*Two mounting styles available.
*Basic magnetically coupled rodless cylinder
Specifications:
Pneumatic Grippers
We provides two types grippers: The SHZ2 series is a standard type parallel air gripper. A linear guide provides high rigidity and high accuracy. SHZ2 can operate under higher pressure even at a larger holding point and overhang. High degree of mounting precision is achieved and mounting repeatability is improved. The SHC gripper is ideal for use in applications requiring angular gripping. The opening angle ranges from 30 to -10 degrees. A double piston mechanism provides a large amount of gripping force, while maintaining a compact design. The MHC series has a built in speed adjustment and a recessed groove for auto switches.
SHZ2,SHC

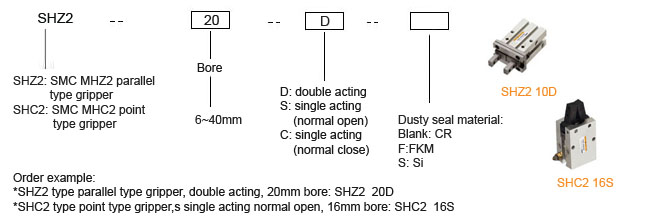

How to Order?
Features:
*Complete linear guide trail gurantee high strength and precision.
*Variable built-in throttles make it easily to mount sensor switch.
*Different dusty cap materials are optional.
Specifications:
