Pneumatic Accessories

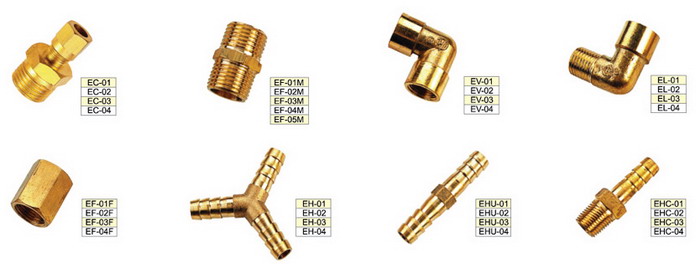

Brass pneumatic connector
We provides sufficient pneumatic brass connectors, can be fitted for different conditions, very convenient, we have pneumatic tube to tube connector, tube to thread connector, thread to thread connector, reducing tubing connector, reducing thread connectors, straight connector, angle connector, Tee connector, Y connector, all etc. This type of brass connectors are of good solution for pneumatic valve to pneumatic valve, pneumatic cylinder to pneumatic valve, pneumatic air units to pneumatic valve, pneumatic fitting to pneumatic fitting, all pneumatic systems. We’re sure this brass connectors will be a good help for you.

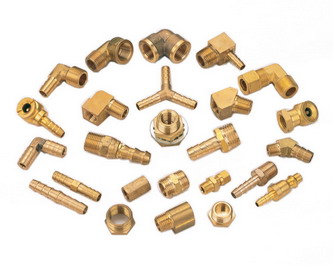

Brass connector
Brass pneumatic coupler
We supply varial type brass pneumatic couplers, including milton type couplers and plugs, Tru-flate couplers and plugs, ARO type couplers and plugs, Universal type couplers and plugs, ORION types couplers and plugs, etc. Every type has the femal thread couplers and plugs, male thread couplers and plugs, tubing couplers and plugs, and they’re exchangeable to each other, so that one series can meet many different connection needs. The milton type couplers and plugs, Tru-flate couplers and plugs, ARO type couplers and plugs, Universal type couplers and plugs are most popular in USA, and ORION type couplers and plugs are popular in Europe.

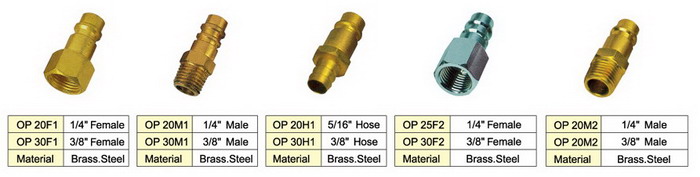

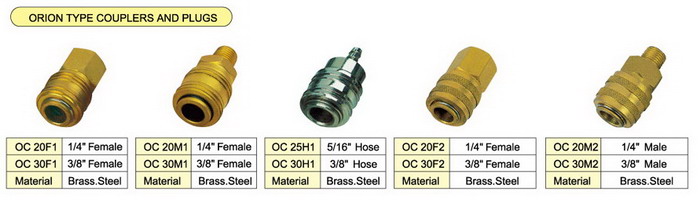

ORION type

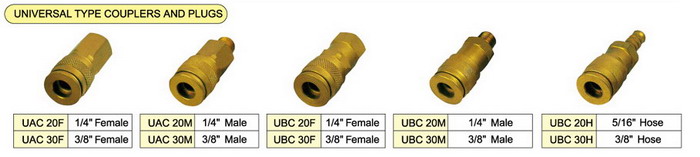

Universal type

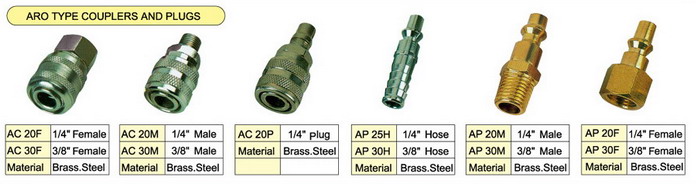

ARO type

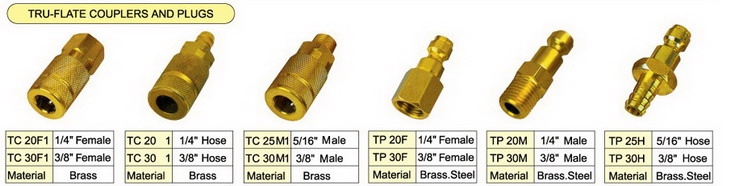

TRU-Flate type

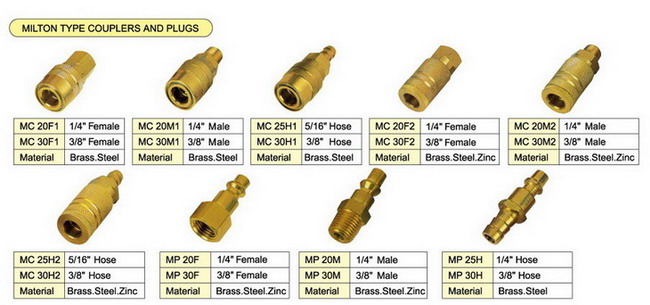

Miton type

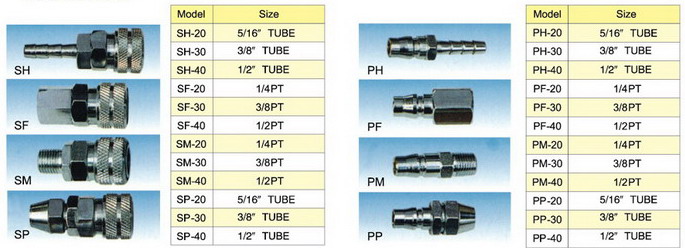

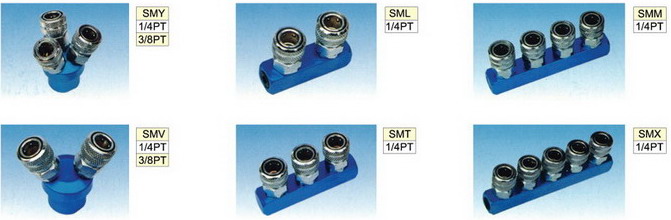

S/P Japanese type pneumatic coupler
The S/P pneumatic couplers are of Japan standard, we have material of steel, stainless steel and zinc, of which steel pneumatic couplers are most normal. This kind of pneumatic couplers are of good quality with very good prices, very popular most in South-east Asia market. The S/P type pneumatic couplers are wildly used together with tubing, air guns to finish some function.
S/P type fitting

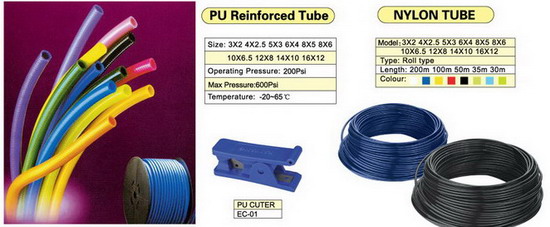

Pneumatic plastic tubing
Polyurethane tubing and polyamide tubing are widely used in the pneumatic system to transfer the pressure air power, they’re not the most important pneumatic components in a pneumatic system, but they're necessary. Without polyurethane tubing (PU tube) and polyamide tubing (PA tube), the pneumatic system can't fit together. We provide polyurethane tubing (PU tube) and polyamide tubing (PA tube) in very good quality, precise, flexible, smooth, nice appearance, a very good solution for a complete pneumatic system.
The polyurethane tubing (PU tube) normally has blue, black, orange 3 color, there're other sizes like yellow, green, red, etc. for optional.
The Polyamide tubing (PA tube), also called nylon tube. Our nylon tubing normally has two types, PA 12 and PA 11-6. The PA 12 is completely done by new material, PA 11-6 is a little mixed with second material, both are of very good quality.
Both PU tubing and nylon tubing has metric sizes are from 3x2 to 16x12, optional inch size from 5/32” to 1/2”.

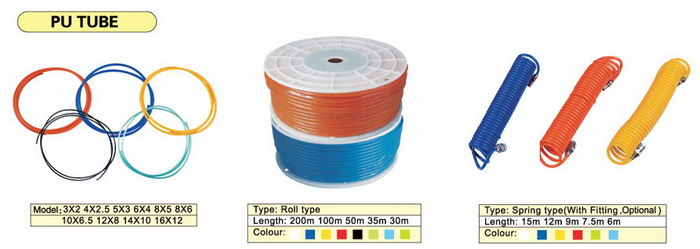

PU tube

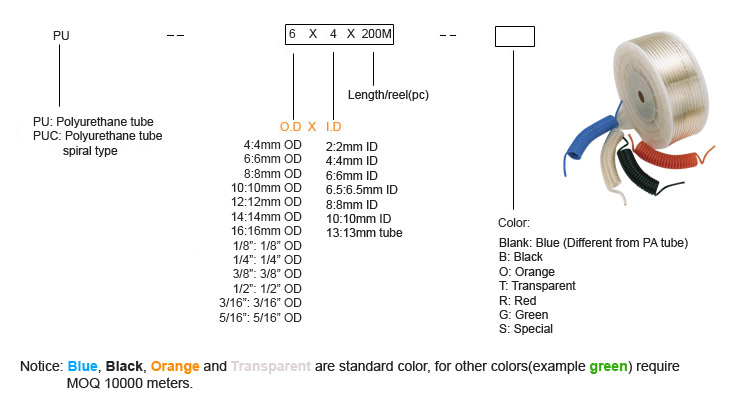

How to order?
Features:
*Good material with precise dimension.
*Different sizes and colors are available for different usages.
*Erastic and high performance of anti-bent.
Specifications:
Nylon Tubing

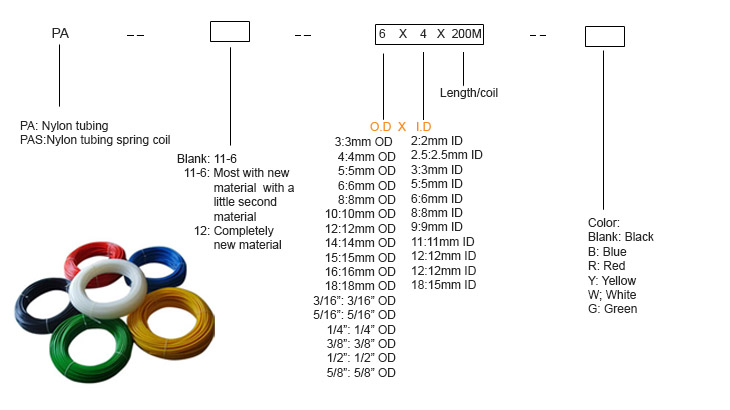

How to order?
Features:
*Good wear ability,smooth surface,low resistance,anti-rustiness and anti-scaling.
*Flexible,easily to be bended into all kinds of shapes,easy to install.
*High chemical and hydrolysis resistance,stable dimension,little penetration,can be used more than ten years.
*Standard color with , ,,,, optional color , , etc.
Specifications:

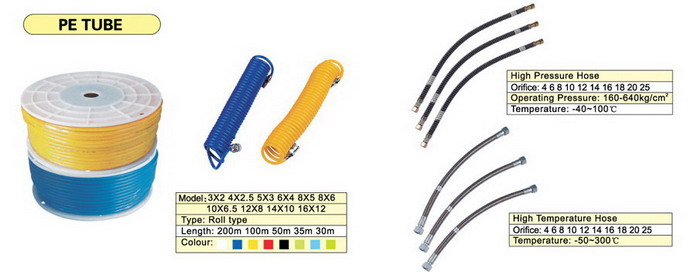

Tubing

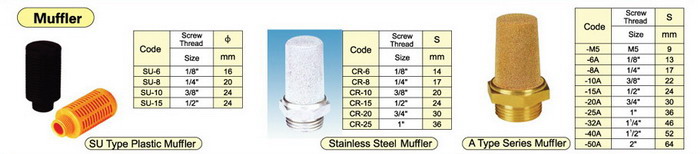

Pneumatic Muffler
Mufflers (silencers) are widely used on valves, cylinders, or any pneumatic systems need a silencer to clean the exhaust air and reduce down the noise and some can adjust the flow rate. We manufacture different kind of mufflers for different conditions. The brass mufflers are most widely used, while plastic mufflers and stainless steel silencers are used in more special conditions. Our mufflers are normally from 1/8” to 1”, but some types has bigger size from M5 to 2”. We also manufacture very special mufflers according to customers requirement, for any of these special mufflers, just contact us immediately so that we can develop the exact mufflers as you want.

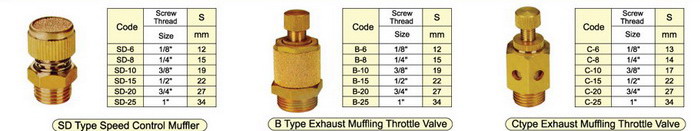

Speed Controller
How to order?
Specifications:

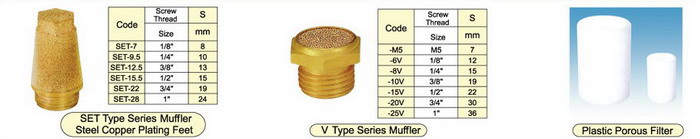

Brass Silencers
Specifications:
Plastic Silencer
Specifications:
Muffler
Pressure gauges
We provide two types of pressure gauges, with golyceline and without. Normally speaking stainless steel pressure gauge requires golyceline and other material pressure gauges don’t need. Some of the pressure gauges are supplied to our air treatment units, and more pressure gauges are provided separately for different machines.
Steel case
Steel case pressure gauges are most normal pressure gauge used in many conditions.
Detailed information about steel case pressue gauge is as follows:
Brass bottom connection: EY801
Brass bottom connection: EY802
Connection sizes: 1/8", 1/4",3/8",1/2"
Case:Steel black plated
Case sizes: 1.5" , 2" , 2.5" ,3" , 3.5" , 4"
Lens: Glass
Range:Any pressure range between 0~600bar, normal range is 0~1.0MPa/150PSI, for any special ranges please informe in the order.
Accuracy: 1.6%
Special mountings:
-F With flange
-U With clamp
-R Rhombus clamp
Steel case pressure gauges with plastic lens:
Brass bottom connection: EY803
Brass bottom connection: EY804
Connection sizes: 1/8", 1/4",3/8",1/2"
Case:Steel black plated
Case sizes: 1.5" , 2" , 2.5" ,3" , 3.5" , 4"
Lens: Plastic
Range:Any pressure range between 0~500bar, normal range is 0~1.0MPa/150PSI, for any special ranges please informe in the order.
Accuracy: 1.5%
Special mountings:
-F With flange
-U With clamp
-R Rhombus clamp
Plastic case
Plastic case pressure gauges with plastic lens:
Brass bottom connection: EY805
Brass bottom connection: EY806
Connection sizes: 1/8", 1/4",3/8",1/2"
Case:ABS
Case sizes: 1.5" , 2" , 2.5" ,3" , 3.5" , 4"
Lens: AS
Range:Any pressure range between 0~600bar, normal range is 0~1.0MPa/150PSI, for any special ranges please inform in the order.
Accuracy: 1.6%
Special mountings:
-F With flange
-U With clamp
-R Rhombus clamp
SS 304 case
SS 304 pressure gauges without glycerin:
Brass bottom connection: EY807
Brass bottom connection: EY808
Connection sizes: 1/8", 1/4",3/8",1/2"
Case:SS 304
Case sizes: 1.5" , 2" , 2.5" ,3" , 3.5" , 4"
Lens: Glass
Range:Any pressure range between 0~600bar, normal range is 0~1.0MPa/150PSI, for any special ranges please inform in the order.
Accuracy: 1.6%
Special mountings:
-F With flange
-U With clamp
-R Rhombus clamp
Full SS case
Full SS 304 pressure gauges without glycerin:
SS304 bottom connection: EY809
SS304 bottom connection: EY810
Connection sizes: 1/8", 1/4",3/8",1/2"
Case:SS 304
Case sizes: 1.5" , 2" , 2.5" ,3" , 3.5" , 4"
Lens: Glass
Range:Any pressure range between 0~600bar, normal range is 0~1.0MPa/150PSI, for any special ranges please inform in the order.
Accuracy: 1.6%
Special mountings:
-F With flange
-U With clamp
SS304 w/oil
SS 304 pressure gauges with glycerin:
Brass bottom connection: EYN801
Brass bottom connection: EYN802
Connection sizes: 1/8", 1/4",3/8",1/2"
Case:SS 304
Case sizes: 1.5" , 2" , 2.5" ,3" , 3.5" , 4"
Lens: Glass
Range:Any pressure range between 0~600bar, normal range is 0~1.0MPa/150PSI, for any special ranges please inform in the order.
Accuracy: 1.6%
Special mountings:
-F With flange
-U With clamp
-R Rhombus clamp
Full SS w/oil
Full SS 304 pressure gauges with glycerin:
Brass bottom connection: EYN803
Brass bottom connection: EYN804
Connection sizes: 1/8", 1/4",3/8",1/2"
Case:SS 304
Case sizes: 1.5" , 2" , 2.5" ,3" , 3.5" , 4"
Lens: Glass
Range:Any pressure range between 0~600bar, normal range is 0~1.0MPa/150PSI, for any special ranges please inform in the order.
Accuracy: 1.6%
Special mountings:
-F With flange
-U With clamp
-R Rhombus clamp
