Directional Valves
V series Pilot/Air Valves
Our standard V series directional 5/2,3/2,5/3 way valves are normally compactly designed from 1/8" to 1/2", including directional solenoid valves and directional air valves. 5/2 way valve with one head is spring return while for valve with two heads is electric or air controlled.3/2 way valve is mostly used for single acting cylinder, while 5/3 way can control pneumatic cylinder stopping at any stroke. For some Europe customers prefer bigger body sizes with high flow rate, please check the PDF file for the dimensions and see if its what you want. The standard color for the V series solenoid/air valves body are painted in black color and the plastic button is orange, with EMC coil. We also do grey painting, hard anodization, natural anodization for the body, and the plastic button we also have blue, red, etc.
V series Valves

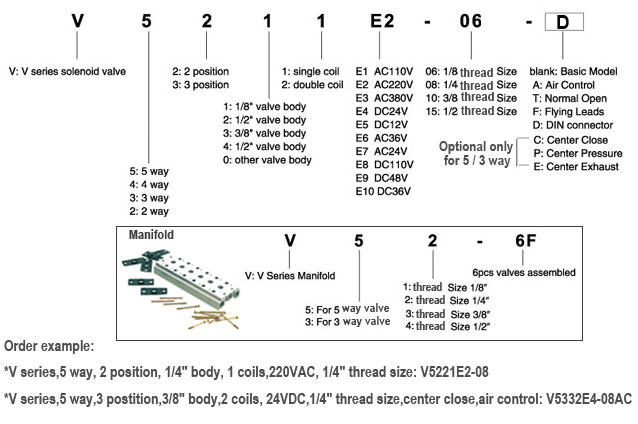

How to Order?
Features:
*Stable life cycle, guaranteed 5,000,000 times.
*Manifolds are available for all sizes.
*Various voltages and working styles are available.
*Different colors,threads are available.
Specifications:
Photo:
 |  |  |  |
| V5211E2-06D | V5211E2-06F | V5212E2-06D | V3211E2-06D |
 |  |  | |
V5221E2-08 | V5222E2-08 V5232E2-10 V5242E2-15 | V52322E2-08C(P,E) V52342E2-08C(P,E) V52342E2-08C(P,E) | |
 |  |  |  |
| V3211-06A V3221-08A V3231-10A V3241-15A | V5211-06A V5221-08A V5231-10A V5241-15A | V5212-06A V5222-08A V5232-10A V5242-15A | V5312-06AC(P,E) V5322-08A(P,E) V5332-10A(P,E) V5342-15A(P,E) |
Namur Pilot/Air valves
Namur valves are mainly mounted on the actuators, our Namur valves has a big market around the world especially Europe with precise dimension, good maching, and always very supportive services. We also do customized Namur valves, for any different dimension or design just talk with us freely at [email protected]. Our standard V series Panel mounting pilot/air 5/2,3/2,5/3 way valves are normally compactly designed from 1/8” to 1/2”. For the NAMUR STANDARD according to ISO288-1,ISO4026 and ISO1302 pilot Namur valve and air Namur valve, we recommend body size of V5231E2-08M(G1/4, with 16x2 O-Ring, 2pcs M5X30 mounting screws, and 1 disc to change 5/3 to 5/2),check the PDF file for the dimensions. The standard color for the Namur valves are painted in black color and the plastic button is orange, with our own coil. We also do grey painting, hard anodization, natural anodization for the body, and the plastic button we also have blue, red, etc.
Namur valve

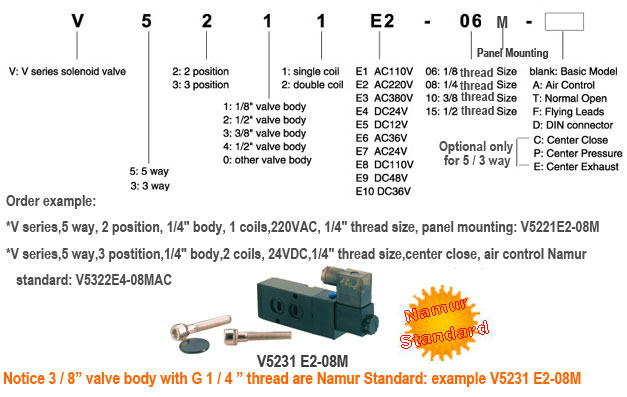

How to Order?
Features:
*Attached with 2pcs mounting bolts and 1 small disc(change from 5/2 to 3/2).
*Stable life cycle, guaranteed 5,000,000 times.
*Various voltages are available.
*Different colors and thread are available
Specifications:
S series solenoid/air valves
S series directional solenoid/air 5/2 way valves from 1/4” to 3/8” with both flying leads type and DIN type connector, it's similar to SMC VF3/5 series and can work in dusty air. Equipped with suitable manifold, can support many valves working together.
S type valve

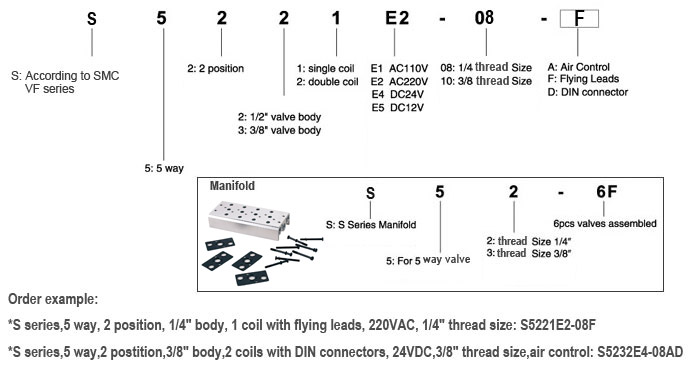

How to Order?
Features:
*Long life cycles.
*Suitable for dusty situation.
*Manifold is available.
Specifications:
M series mechanical valves
Our M series mechanical valves are controlled by hand or other mechanical force for different conditions, including 1 series 2/2 way valves, 2 series of 3/2 way valves and 1 series of 5/2 way valves. There’re at least 6 standard button head styles for you to choose, the Button with arrow mark with bracket, Chain wheel, Button with "Reset" mark with bracket, Concave button with bracket, Flat button with bracket, Big head button……the M series mechanical valves are widely used in different pneumatic system.
M type valve

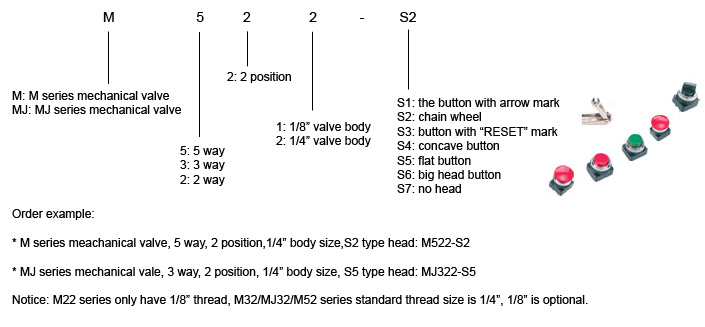

How to Order?
Features:
*Hard anodized body.
*controlled by mechanical force.
*Various heads are available
Specifications:
L/H/N series hand valves
There're 3 styles of the hand valves, one is L series hand pull valves, another is H series hand push valves, the other is N series electric/hand pull vales. For the former two series we have 5/2, 3/2, 5/3 ways from 1/8" to 1/2", both for normally hand push back and spring return, and for some Europe customers preferring bigger sizes hand valves, please check the PDF file for the dimensions for hand valves and see if it's what you want.
Hand valve
How to Order?
Features:
*Controlled by hand.
*Various working style are avilable.
*Different colors are optional for body
Specifications:
F series foot valves
We have manufactured foot valves for many years, and now have a wide range of foot valves for your selection. Our foot valves are mainly 1/4", including 3/2 way foot valve,4/2 way foot valve,5/2 way foot valve. The normal foot valves are spring return, we also have foot valve with lock, foot valve with guard, foot valve with both lock and guard. We can also develop the special designed valves according to customers' requirement.
Foot valve

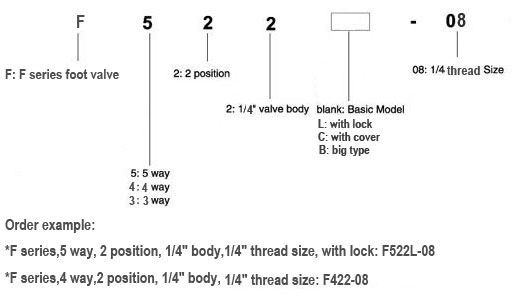

How to Order?
Features:
*Strong design and work in bad environment.
*Various styles are available.
Specifications:
Rotary valves
Our standard rotary valves are 4/3 way, from 1/4" to 1/2" in different styles. The SPECIAL STYLE of our rotary valve is the miniature MR432-08/10/15, the seals are made from ceramic, make sure it can be used for long time working. We also develop special rotary valves according to customers' requirements.
Rotary valve

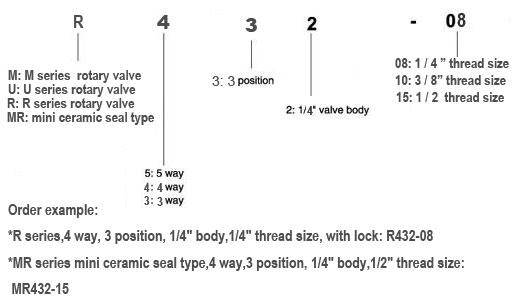

How to Order?
Features:
*Different styles are available.
*Mini rotary valve with ceramic seal is special.
*Sizes from 1/4" to 1/2".
Specifications:
Accessory valves
The accessory valves normally don’t act as an independent pneumatic system. These valves include different valves using as a supportive tool for the pneumatic controlling system, flow control valve RE,BRE, shuttle valve ES, quick exhaust valve KKP, one way valve EA, slide valve YHS, etc. These accessory valves are a good helper to the controlling valves, and so that the complete automation system can be finished very well.
Air valve

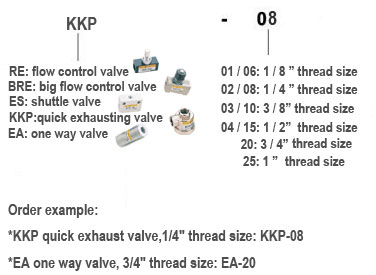

How to Order?
Features:
*Various accessory valve are avilable.
Specifications:
Armature and Coil
Armature and coils are necessary for any valves, our valves' excellent quality depends in a big way on these two items. We have a special CNC machine imported from Japan, which can make a 5 meter long material to very small pieces armatures and spools, very efficient and precisely. We have special engineer develop and design new coils for specific valves and We also have 6 injection machines, and 2 coil winding streamlines, especially used for making coils. Besides supporting for our production, valve parts especially armature and coil are also provided to customers around the world, including many famous pneumatic brands.
Armature
Specifications:
