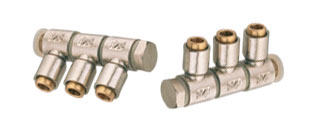

European Type Brass Push-in Fittings
The European type brass fittings are very popular in Europe market, nickel plated brass material looks very beautiful, and with excellent quality as essentially factor for this kind of pneumatic fittings. We have a wide range of nickel plated brass fittings for different situations, very convenient for pneumatic valve to pneumatic valve, pneumatic cylinder to pneumatic valve, pneumatic air units to pneumatic valve, pneumatic fitting to pneumatic fitting, all pneumatic systems. We have pneumatic tube to tube push in fittings, tube to thread brass push in fitting, thread to thread brass push in fitting, reducing tubing brass push in fitting, reducing thread brass push in fitting, straight brass push in fitting, angle brass push in fitting, Tee brass push in fitting, Y brass push in fitting, all etc. This type of brass push in fitting are of good solution for many conditions.

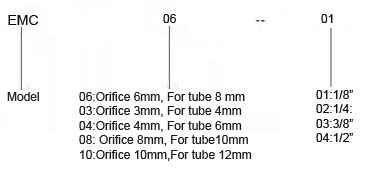

How to Order?
EMC
EMSC
EML
EMB
EMH
| BSPT/PT thread | Tube/Thread | BSPP/G thread | Tube/Thread | |
| EMH3-M8 | 3mm Tube M8 Thread | EMH3-M8 | 3mm Tube M8 Thread | |
| EMH3-01 | 3mm Tube 1/8'' PT thread | EMH3-01 | 3mm Tube 1/8'' G thread | |
| EMH3-02 | 3mm Tube 1/4'' PT thread | EMH3-02 | 3mm Tube 1/4'' G thread | |
| EMH4-M8 | 4mm Tube M8 Thread | EMH4-M8 | 4mm Tube M8 Thread | |
| EMH4-01 | 4mm Tube 1/8'' PT thread | EMH4-01 | 4mm Tube 1/8'' G thread | |
| EMH4-02 | 4mm Tube 1/4'' PT thread | EMH4-02 | 4mm Tube 1/4'' G thread | |
| EMH4-03 | 4mm Tube 3/8'' PT thread | EMH4-03 | 4mm Tube 3/8'' G thread | |
| EMH4-04 | 4mm Tube 1/2'' PT thread | EMH4-04 | 4mm Tube 1/2'' G thread | |
| EMH6-01 | 6mm Tube 1/8'' PT thread | EMH6-01 | 6mm Tube 1/8'' G thread | |
| EMH6-02 | 6mm Tube 1/4'' PT thread | EMH6-02 | 6mm Tube 1/4'' G thread | |
| EMH6-03 | 6mm Tube 3/8'' PT thread | EMH6-03 | 6mm Tube 3/8'' G thread | |
| EMH6-04 | 6mm Tube 1/2'' PT thread | EMH6-04 | 6mm Tube 1/2'' G thread | |
| EMH8-01 | 8mm Tube 1/8'' PT thread | EMH8-01 | 8mm Tube 1/8'' G thread | |
| EMH8-02 | 8mm Tube 1/4'' PT thread | EMH8-02 | 8mm Tube 1/4'' G thread | |
| EMH8-03 | 8mm Tube 3/8'' PT thread | EMH8-03 | 8mm Tube 3/8'' G thread | |
| EMH8-04 | 8mm Tube 1/2'' PT thread | EMH8-04 | 8mm Tube 1/2'' G thread | |
| EMH10-01 | 10mm Tube 1/8'' PT thread | EMH10-01 | 10mm Tube 1/8'' G thread | |
| EMH10-02 | 10mm Tube 1/4'' PT thread | EMH10-02 | 10mm Tube 1/4'' G thread | |
| EMH10-03 | 10mm Tube 3/8'' PT thread | EMH10-03 | 10mm Tube 3/8'' G thread | |
| EMH10-04 | 10mm Tube 1/2'' PT thread | EMH10-04 | 10mm Tube 1/2'' G thread |
EMW
EMY/EMU/EMM
EPE/EMV/EME
EMF
EMKD
| BSPT/PT thread | Tube/Thread | BSPP/G thread | Tube/Thread | |
| EMKD3-M8 | 3mm Tube M8 Thread | EMKD3-M8 | 3mm Tube M8 Thread | |
| EMKD3-01 | 3mm Tube 1/8'' PT thread | EMKD3-01 | 3mm Tube 1/8'' G thread | |
| EMKD3-02 | 3mm Tube 1/4'' PT thread | EMKD3-02 | 3mm Tube 1/4'' G thread | |
| EMKD4-M8 | 4mm Tube M8 Thread | EMKD4-M8 | 4mm Tube M8 Thread | |
| EMKD4-01 | 4mm Tube 1/8'' PT thread | EMKD4-01 | 4mm Tube 1/8'' G thread | |
| EMKD4-02 | 4mm Tube 1/4'' PT thread | EMKD4-02 | 4mm Tube 1/4'' G thread | |
| EMKD4-03 | 4mm Tube 3/8'' PT thread | EMKD4-03 | 4mm Tube 3/8'' G thread | |
| EMKD4-04 | 4mm Tube 1/2'' PT thread | EMKD4-04 | 4mm Tube 1/2'' G thread | |
| EMKD6-01 | 6mm Tube 1/8'' PT thread | EMKD6-01 | 6mm Tube 1/8'' G thread | |
| EMKD6-02 | 6mm Tube 1/4'' PT thread | EMKD6-02 | 6mm Tube 1/4'' G thread | |
| EMKD6-03 | 6mm Tube 3/8'' PT thread | EMKD6-03 | 6mm Tube 3/8'' G thread | |
| EMKDF6-04 | 6mm Tube 1/2'' PT thread | EMKDF6-04 | 6mm Tube 1/2'' G thread | |
| EMKD8-01 | 8mm Tube 1/8'' PT thread | EMKD8-01 | 8mm Tube 1/8'' G thread | |
| EMKD8-02 | 8mm Tube 1/4'' PT thread | EMKD8-02 | 8mm Tube 1/4'' G thread | |
| EMKD8-03 | 8mm Tube 3/8'' PT thread | EMKD8-03 | 8mm Tube 3/8'' G thread | |
| EMKD8-04 | 8mm Tube 1/2'' PT thread | EMKD8-04 | 8mm Tube 1/2'' G thread | |
| EMKD10-01 | 10mm Tube 1/8'' PT thread | EMKD10-01 | 10mm Tube 1/8'' G thread | |
| EMKD10-02 | 10mm Tube 1/4'' PT thread | EMKD10-02 | 10mm Tube 1/4'' G thread | |
| EMKD10-03 | 10mm Tube 3/8'' PT thread | EMKD10-03 | 10mm Tube 3/8'' G thread | |
| EMKD10-04 | 10mm Tube 1/2'' PT thread | EMKD10-04 | 10mm Tube 1/2'' G thread |
EMZT
| BSPT/PT thread | Tube/Thread | BSPP/G thread | Tube/Thread | |
| EMZT3-M8 | 3mm Tube M8 Thread | EMZT3-M8 | 3mm Tube M8 Thread | |
| EMZT3-01 | 3mm Tube 1/8'' PT thread | EMZT3-01 | 3mm Tube 1/8'' G thread | |
| EMZT3-02 | 3mm Tube 1/4'' PT thread | EMZT3-02 | 3mm Tube 1/4'' G thread | |
| EMZT4-M8 | 4mm Tube M8 Thread | EMZT4-M8 | 4mm Tube M8 Thread | |
| EMZT4-01 | 4mm Tube 1/8'' PT thread | EMZT4-01 | 4mm Tube 1/8'' G thread | |
| EMZT4-02 | 4mm Tube 1/4'' PT thread | EMZT4-02 | 4mm Tube 1/4'' G thread | |
| EMZT4-03 | 4mm Tube 3/8'' PT thread | EMZT4-03 | 4mm Tube 3/8'' G thread | |
| EMZT4-04 | 4mm Tube 1/2'' PT thread | EMZT4-04 | 4mm Tube 1/2'' G thread | |
| EMZT6-01 | 6mm Tube 1/8'' PT thread | EMZT6-01 | 6mm Tube 1/8'' G thread | |
| EMZT6-02 | 6mm Tube 1/4'' PT thread | EMZT6-02 | 6mm Tube 1/4'' G thread | |
| EMZT6-03 | 6mm Tube 3/8'' PT thread | EMZT6-03 | 6mm Tube 3/8''G thread | |
| EMZT6-04 | 6mm Tube 1/2'' PT thread | EMZT6-04 | 6mm Tube 1/2'' G thread | |
| EMZT8-01 | 8mm Tube 1/8'' PT thread | EMZT8-01 | 8mm Tube 1/8'' G thread | |
| EMZT8-02 | 8mm Tube 1/4'' PT thread | EMZT8-02 | 8mm Tube 1/4'' G thread | |
| EMZT8-03 | 8mm Tube 3/8'' PT thread | EMZT8-03 | 8mm Tube 3/8'' G thread | |
| EMZT8-04 | 8mm Tube 1/2'' PT thread | EMZT8-04 | 8mm Tube 1/2'' G thread | |
| EMZT10-01 | 10mm Tube 1/8'' PT thread | EMZT10-01 | 10mm Tube 1/8'' G thread | |
| EMZT10-02 | 10mm Tube 1/4'' PT thread | EMZT10-02 | 10mm Tube 1/4'' G thread | |
| EMZT10-03 | 10mm Tube 3/8'' PT thread | EMZT10-03 | 10mm Tube 3/8'' G thread | |
| EMZT10-04 | 10mm Tube 1/2'' PT thread | EMZT10-04 | 10mm Tube 1/2'' G thread |
EMS
EMKB
| BSPT/PT thread | Tube/Thread | BSPP/G thread | Tube/Thread | |
| EMKB3-M8 | 3mm Tube M8 Thread | EMKB3-M8 | 3mm Tube M8 Thread | |
| EMKB3-01 | 3mm Tube 1/8'' PT thread | EMKB3-01 | 3mm Tube 1/8'' G thread | |
| EMKB3-02 | 3mm Tube 1/4'' PT thread | EMKB3-02 | 3mm Tube 1/4'' G thread | |
| EMKB4-M8 | 4mm Tube M8 Thread | EMKB4-M8 | 4mm Tube M8 Thread | |
| EMKB4-01 | 4mm Tube 1/8'' PT thread | EMKB4-01 | 4mm Tube 1/8'' G thread | |
| EMKB4-02 | 4mm Tube 1/4'' PT thread | EMKB4-02 | 4mm Tube 1/4'' G thread | |
| EMKB4-03 | 4mm Tube 3/8'' PT thread | EMKB4-03 | 4mm Tube 3/8'' G thread | |
| EMKB4-04 | 4mm Tube 1/2'' PT thread | EMKB4-04 | 4mm Tube 1/2'' G thread | |
| EMKB6-01 | 6mm Tube 1/8'' PT thread | EMKB6-01 | 6mm Tube 1/8'' G thread | |
| EMKB6-02 | 6mm Tube 1/4'' PT thread | EMKB6-02 | 6mm Tube 1/4'' G thread | |
| EMKB6-03 | 6mm Tube 3/8'' PT thread | EMKB6-03 | 6mm Tube 3/8'' G thread | |
| EMKB6-04 | 6mm Tube 1/2'' PT thread | EMKB6-04 | 6mm Tube 1/2'' G thread | |
| EMKB8-01 | 8mm Tube 1/8'' PT thread | EMKB8-01 | 8mm Tube 1/8'' G thread | |
| EMKB8-02 | 8mm Tube 1/4'' PT thread | EMKB8-02 | 8mm Tube 1/4'' G thread | |
| EMKB8-03 | 8mm Tube 3/8'' PT thread | EMKB8-03 | 8mm Tube 3/8'' G thread | |
| EMKB8-04 | 8mm Tube 1/2'' PT thread | EMKB8-04 | 8mm Tube 1/2'' G thread | |
| EMKB10-01 | 10mm Tube 1/8'' PT thread | EMKB10-01 | 10mm Tube 1/8'' G thread | |
| EMKB10-02 | 10mm Tube 1/4'' PT thread | EMKB10-02 | 10mm Tube 1/4'' G thread | |
| EMKB10-03 | 10mm Tube 3/8'' PT thread | EMKB10-03 | 10mm Tube 3/8'' G thread | |
| EMKB10-04 | 10mm Tube 1/2'' PT thread | EMKB10-04 | 10mm Tube 1/2'' G thread |
