Blow Moulder

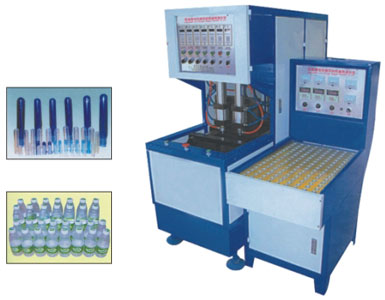

HY-J SERIES BLOW MOULDER
[HY-J SERIES BLOW MOULDER]
Application:
The machine is used in blowing various plastic PET、PVC、HDPE、LDPE、PP、PVS bottles .The machine can make mineral water bottle, pure water bottle, cola bottle, oil bottle, children kettle, wine bottle ,medical bottle, cosmetic bottle,fruit milk bottle, pop-topcan with various shapes and colors whose volume range from 0.1L to 2.5L.
Main Technical Standards:

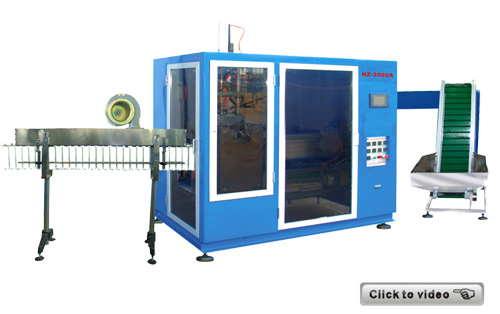

HZ-3000A Series Full-automatic Blow Moulder
[HZ-3000A SERIES FULL-AUTOMATIC BLOW MOULDER]
Application:
1). HZ-3000A stretch blow moulding machine is suitable to produce PET/PC/PP and PE material containers and bottles in all shapes.
2). It is widely used to produce carbonated soft drink bottles, mineral water bottles,pesticide bottles, oil bottles, cosmetic bottles, wide-mouth jars and hot fill bottles,etc.
3). Feeding system carries the preforms automatically.
4). Infrared lamps adopted in the pre-heaterto heat the PET preforms.
5). Fully automatic process with low investment, high efficiency, quick and safe operation.
6). Easy trouble shooting, maintenance and other advantages.
Main Technical Standards:

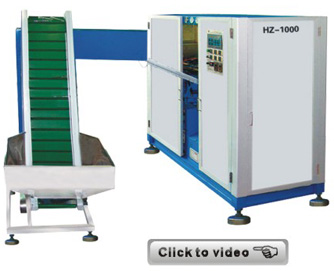

HZ-1000 New Concept Blow Moulder
[HZ-1000 NEW CONCEPT HIGH EFFICIENCY LOW COST FULL-AUTOMATIC BLOW MOULDER]
Application:
1). 500% man power saved machine cost regained from saving of salary whinin 1year; only 1 worker is needed to operate 5 machines,cost of human resource cut down,Performs kept clean compare to semi-automatic machine's manual handle of performs;Accidents prevented.
2). 25% electricity saved very small distance between performs,25% more performs settled in the pre-heater than semi-automatic pre-heater.
3). 20% pneumatic power saved. sector open-and-close mould system,cylinder diameter and opening stroke shortened ; Mould open-and-close speed increased.
Main Technical Standards:
| TYPE | ITEM | MEASUREMENT | HZ-1000 |
END PRODUCT | Material | / | PET/PP/PE/PC |
| Volume | L | 0.05- 2.5/3-6(1-cavity) 3-6(1-cavity) | |
| Theoretical output | Pes/h | 600-1300 | |
| Max length | mm | 180-360 | |
| Max diameter | mm | 65-170 | |
| MOULD PLATE | Max mould plate dimension(LxH) | mm | 219*387 |
| Max mould thickness | mm | 120-245 | |
| Clamping force | KN | 90 | |
| AUXILIARY | High pressure compressor | M 3 /Mpa | >=1.2/3.0*1set |
| precision air filters | M 3 /Mpa | >=1.0/3.0*2pcs | |
| MAIN MACHINE ELECTRICITY | Power | KW | 8 |
| Voltage/Frequency | V/Hz | 220-380/50-60 | |
| MACHINE SIZE AND WEIGHT | Blow unit dimension(LxWxH) | M | 1.55*0.85*1.95 |
| Blow unit weight | T | 0.8 | |
| conveyor dimension (LxWxH) | M | 1.12*1.47*1.87 | |
| Conveyor weight | T | 0.15 | |
| SAFETY | Auto-emergency alarm | SAFETY INTER-LOCKING DEVICE | |

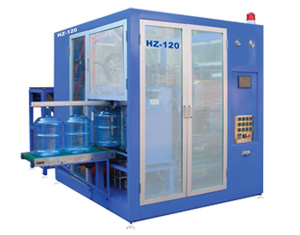

HZ-120 5 Gallon Blow Moulder
[HZ-120 FULL-AUTOMATIC 5 GALLON BLOW MOULDER]
Application:
1). HZ-120 fully-automatic stretch blow moulding machine produces from 5 liter to 25 liter bottles.Neck finish is from 15mm to 200mm. It is suitable to produce thermo containers of PET,PC and PE material.
2). Feeding system carries the preforms automatically. Precise design of heater ensures enve heating for the preforms.
3). Especially used to produce 5-gallon large volume containers.
Main Technical Standards:
| TYPE | ITEM | MEASUREMENT | HZ-120 |
| END PRODUCT | Product material | / | PET/PP/PE/PC |
| Container volume | L | 5-6(2-cavity)/10-25(1-cavity) | |
| Theoretical output | Pcs/h | 5gallon:120/ 5L:700 | |
Max.length of bottle | mm | 450 | |
| Bottle diameter | mm | 350 | |
| MOULD PLATE | Max.mould plate dimension(L*H) | mm | 520*600 |
| Max.mould thickness | mm | 400 | |
| Clamping force | KN | 300 | |
| Mould opening stroke(Adjustable) | mm | 330 | |
| AUXILIARY | High pressure compressor | M 3 /Mpa | >=1.2/3.0*2sets |
| Low pressure compressor | M 3 /Mpa | >=1.6/1.0*1set | |
| Air cooling dryer | M 3 /Mpa | >=1.0/3.0*1set | |
| Precision air filters | M 3 /Mpa | >=1.0/3.0*3pcs | |
| Hight pressure air receiving tank(D*H) | M 3 /Mpa | >=0.6/3.0*1set | |
| Dimension(L*W*H) | M | 2.2*1.9*2.2 | |
| MAIN MACHINE ELECTRICITY | Power | KW | 20 |
| Voltage/Frequency | V/HZ | 220-380/50-60 | |
| MACHINE SIZE AND WEIGHT | Main body dimension(L*W*H) | M | 2.60*1.9*1.95 |
| Main body weight | T | 2.8 | |
| SAFETY | Auto-emergency alam | SAFETY INTER-LOCKING DEVICE | |

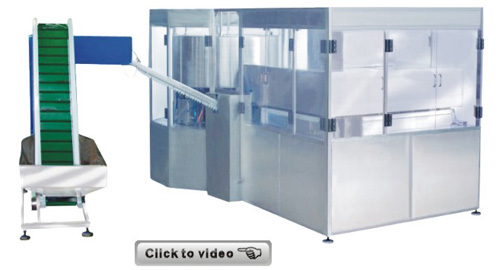

HZ-1/3500 Automatic Rotary Blow Moulder
[HZ-1/3500 AUTOMATIC ROTARY BLOW MOULDER]
Application:
We can produce the machine base on customer capacity requirement.
Main Technical Standards:
| ITEM | MEASUREMENT | Model S | Model L |
Material | / | PET、PP、PE、PC | PET、PP、PE、PC |
| Volume | L | 0.05L-2.5L | 3L-5L |
| The oretical output per head | PCS/H | 900Pcs/hr | 500Pcs/hr |
| Blowing pressure | MPA | 3.0Mpa | 3.0Mpa |
| working pressure | MPA | 0.8Mpa | 0.8Mpa |
| Max.heig | MM | 350 | 380 |
| Max.diameter | MM | 130 | 200 |

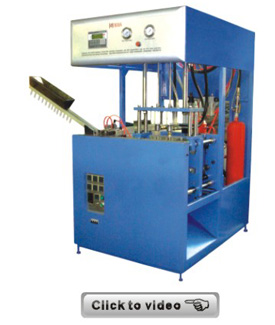

HZ-880A Blow Moulder with Auto Preform Loading
[HZ-880A BLOW MOULDER WITH AUTO PREFORM LOADING]
Application:
HZ-800A Stretch Blow Molding Machine is suitable to produce different Shapes of PET/PC/PE bottles.
It can blow from 100ml to 6000ml bottles and is widely used toproduce mineral water bottles, carbonated soft drink bottles,juice bottles, medical bottles, cosmetic and oil bottles etc.
1). Infrared lamps adoped in the pre-heater ensures PET preforms being heated evenly.
2). Mechanical-double-arm clamping system ensures mould being tightly closed under high pressure and high temperature.
3). Pneumatic system consists of two parts: pneumatic acting part and bottle blowing part in order to meet different pressure requirements for both acting and blowing. It provides sufficient steady high pressure to blow arge irregular shape bottles.
4). Equipped with silencer and oiling system to lubricate the mechanical parts of the machine.
5). Operated step-by-step and in semi-auto mode.
Wide-mouth jar and hot-fill bottles can also be made.
Main Technical Standards:
| TYPE | ITEM | MEASUREMENT | HZ-880A |
END PRODUCT | Material | / | PET/PP/PE/PC |
| Volume | L | 0.05-2.5(2-cavity) 3-6(1-cavity) | |
Theoretical output | Pcs/h | 0.05-2.5L:1100 3-6L:550 | |
| Max.length | mm | 360 | |
| Max.diameter | mm | 180 | |
| MOULD PLATE | Max.mould plate dimension(L*H) | mm | 420*500 |
| Max.mould thickness | mm | 160-240 | |
| Clamping force | KN | 180 | |
| AUXILIARY | Mould opening stroke(Adjustable) | mm | 200 |
| Hight pressure compressor | M 3 /Mpa | >=1.2/3.0*1set | |
| Precision air filters | M 3 /Mpa | >=1.0/3.0*2pcs | |
| MAIN MACHINE ELECTRICITY | Power | KW | 6 |
| Voltage/Frequency | V/HZ | 220/380/50-60 | |
| MACHINE SIZE AND WEIGHT | Blow unitdimension(L*W*H) | M | 1.28*0.96*1.85 |
Blow units weight | T | 0.9 | |
| SAFETY | Auto-emergency alarm | SAFETY INTER-LOCKING DEVICE | |
HZ-880 SEMI-AUTOMATIC Blow Moulder
[HZ-880 SEMI-AUTOMATIC BLOW MOULDER]
HZ-880 semi-automatic blow moulder standard | HZ-880 semi-automatic blow moulder combination |
Application:
| 1). HZ-880 Stretch Blow Molding Machine is suitable to produce different shapes of PET/PC/PE ottles.It can blow from 100ml to 6000ml bottles and is widely used to produce mineral water bottles,carbonated soft drink bottles,juice bottles,medical bottles,cosmetic and oil bottles etc. 2). Infrared lamps adoped in the pre-heater ensures PET preforms being heated evenly. 3). Mechanical-double-arm clamping system ensures mould being tightly closed under high pressure and high temperature. | 1). Pneumatic system consists of two parts:pneumatic acting part and bottle blowing part in order to meet different .Pressure requirements for both acting and blowing. It provides sufficient steady high pressure to blow arge irregular .Shape bottles. 2). Equipped with silencer and oiling system to lubricate the mechanical parts of the machine. 3). Operated step-by-step and in semi-auto mode. 4). Wide-mouth jar and hot-fill bottles can also be made. |
Main Technical Standards:
| TYPE | ITEM | MEASUREMENT | HZ-880 | HZ-880 |
END PRODUCT | Material | / | PET/PP/PE/PC | PET/PP/PE/PC |
| Volume | L | 0.05-2.5(2-cavity) 3-6(1-cavity) | 0.05-2.5(2-cavity) 3-6(1-cavity) | |
Theoretical output | Pcs/h | 0.05-2.5L:1700 3-6L:800 | 0.05-2.5L:850 3-6L:400 | |
| Max.length | mm | 360 | 360 | |
| Max.diameter | mm | 180 | 180 | |
| MOULD PLATE | Max.mould plate dimension(L*H) | mm | 420*500 | 420*500 |
| Max.mould thickness | mm | 160-240 | 160-240 | |
| Clamping force | KN | 180 | 90 | |
| Mould opening stroke(Adjustable) | mm | 200 | 200 | |
| AUXILIARY | Hight pressure compressor | M 3 /Mpa | >=1.20/3.0*1set | >=1.2/3.0*1set |
| Precision air filters | M 3 /Mpa | >=1.0/3.0*2pcs | >=1.0/3.0*2pcs | |
| MAIN MACHINE ELECTRICITY | Power | KW | 12 | 6 |
| Voltage/Frequency | V/HZ | 220-380/50-60 | 220-380/50-60 | |
| MACHINE SIZE AND WEIGHT | Blow unitdimension(L*W*H) | M | 1.53*0.6*2.0 | 1.53*0.6*2.0 |
Blow unit weight | T | 0.6 | 0.6 | |
| Pre-heater dimension(L*W*H) | M | 1.80*0.5*1.16 | 1.80*0.05*1.16 | |
| Pre-heater weight | T | 0.30 | 0.30 | |
| SAFETY | Auto-emergency alarm | SAFETY INTER-LOCKING DEVICF | ||

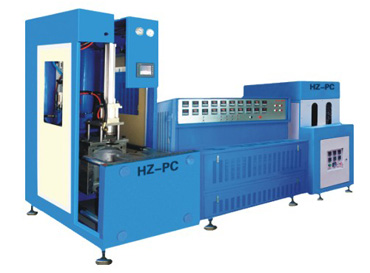

HZ-PC Semi-Automatic 5-Gallon Blow Moulder
[HZ-PC SEMI-AUTOMATIC 5-GALLON BLOW MOULDER]
Application:
HZ-PC is designed according to CE standard with safety door added.Looking nice and neat, the machine is safer andeasier to operate.
Main Technical Standards:
TYPE | ITEM | MEASUREMENT | HZ-PC |
END PRODUCT | Material | / | PET/PC |
| Volume | L | 10-25(1-cavity) | |
Theoretical output | Pcs/h | 5gallon:40-90 | |
| Max.length | mm | 450 | |
| Max.diameter | mm | 350 | |
MOULD PLATE | Max.mould plate dimension(L*H) | mm | 520*600 |
| Max.mould thickness | mm | 400 | |
| Clamping force | KN | 300 | |
| Mould opening stroke(Adjustable) | mm | 330 | |
AUXILIARY | Hight pressure compressor | M 3 /Mpa KW | >=1.2/3.0*1set |
| Air coo ling dryer | M 3 /Mpa KW | >=1.0/3.0*1set | |
| Precision air filters | M 3 /Mpa | >=1.0/3.0*2pcs | |
MAIN MACHINE ELECTRICITY | Power | KW | 20 |
| Voltage/Frequency | V/HZ | 220-380/50-60 | |
SAFETY | Auto-emergency alarm | SAFETY INTER-LOCKING DEVICE | |
